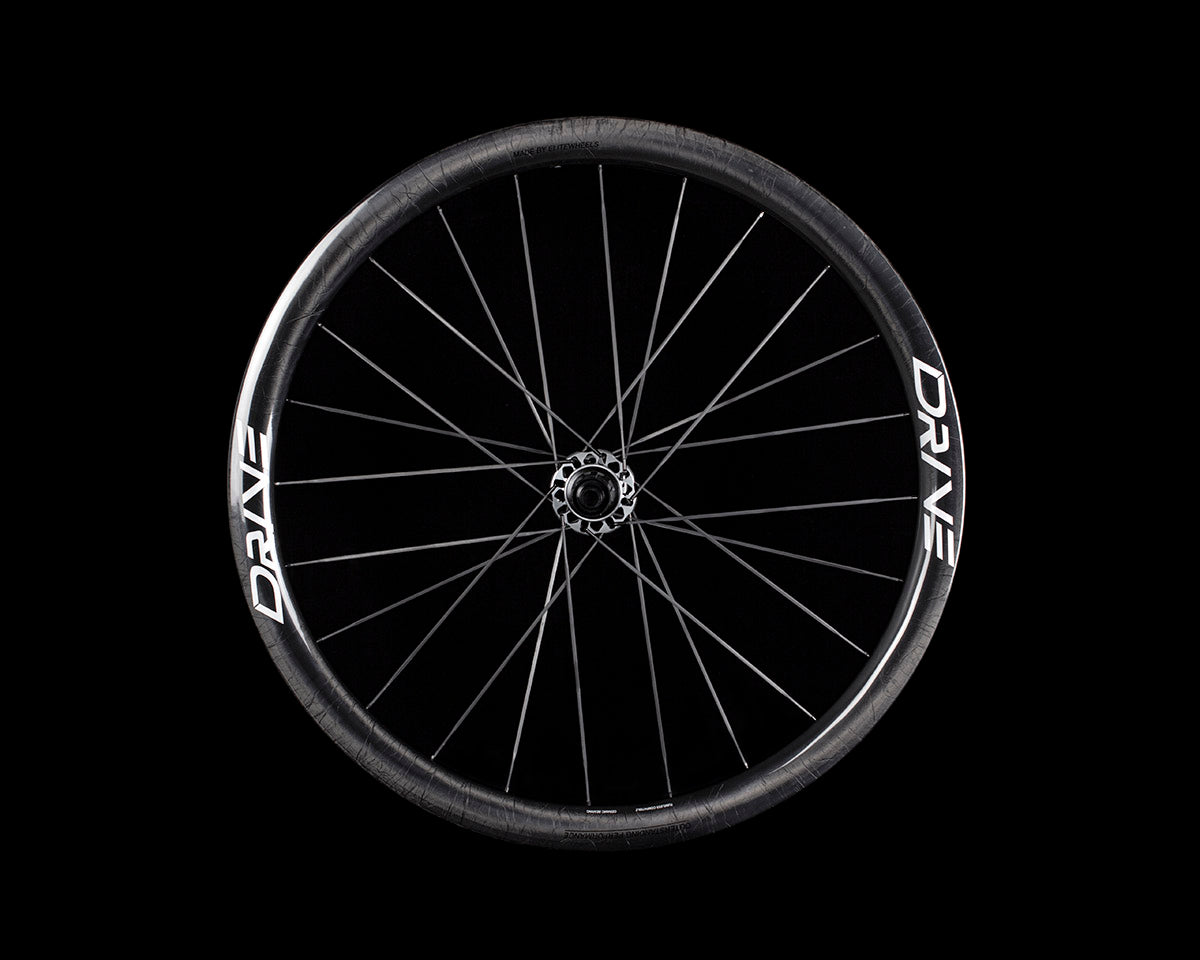

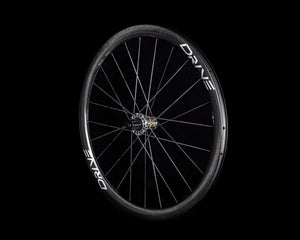

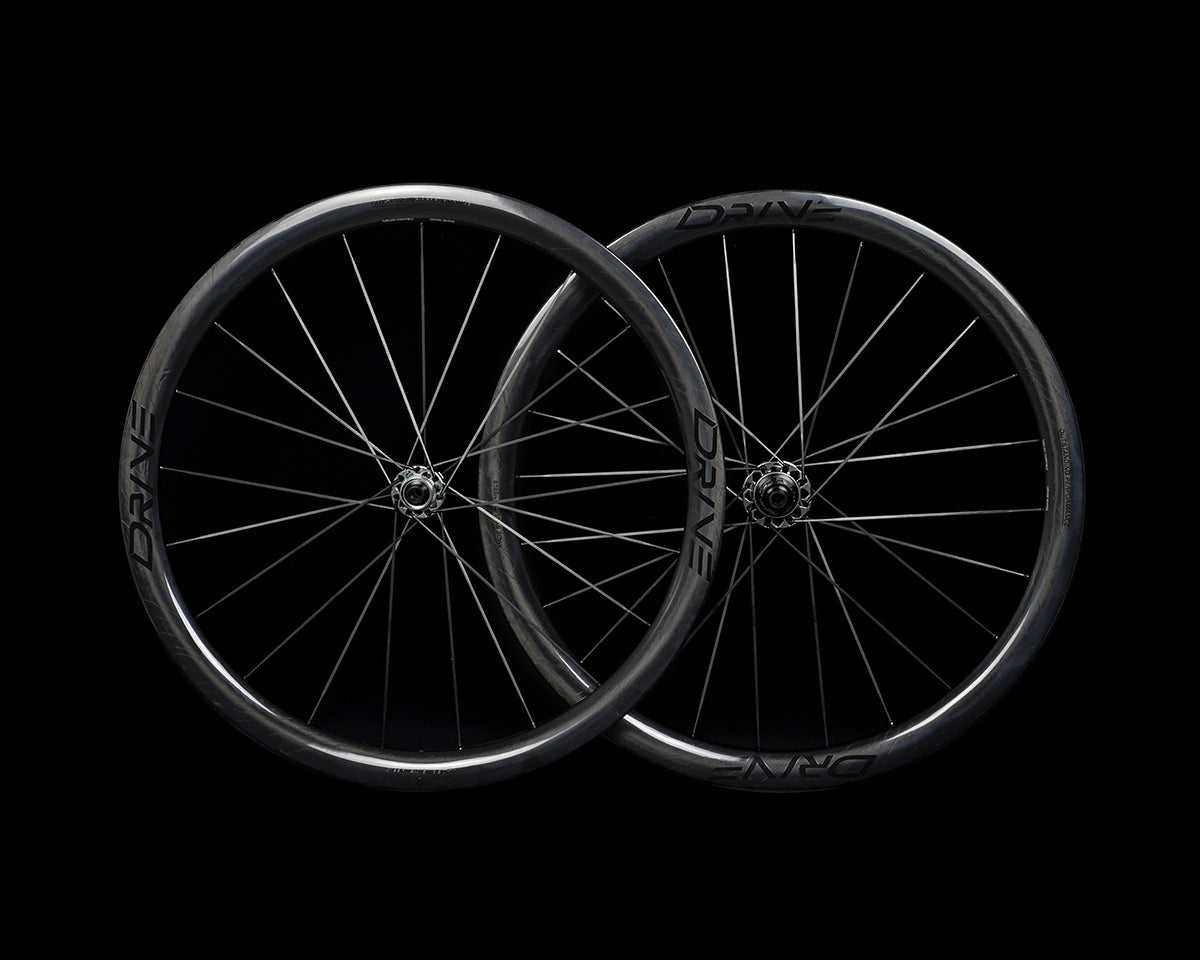

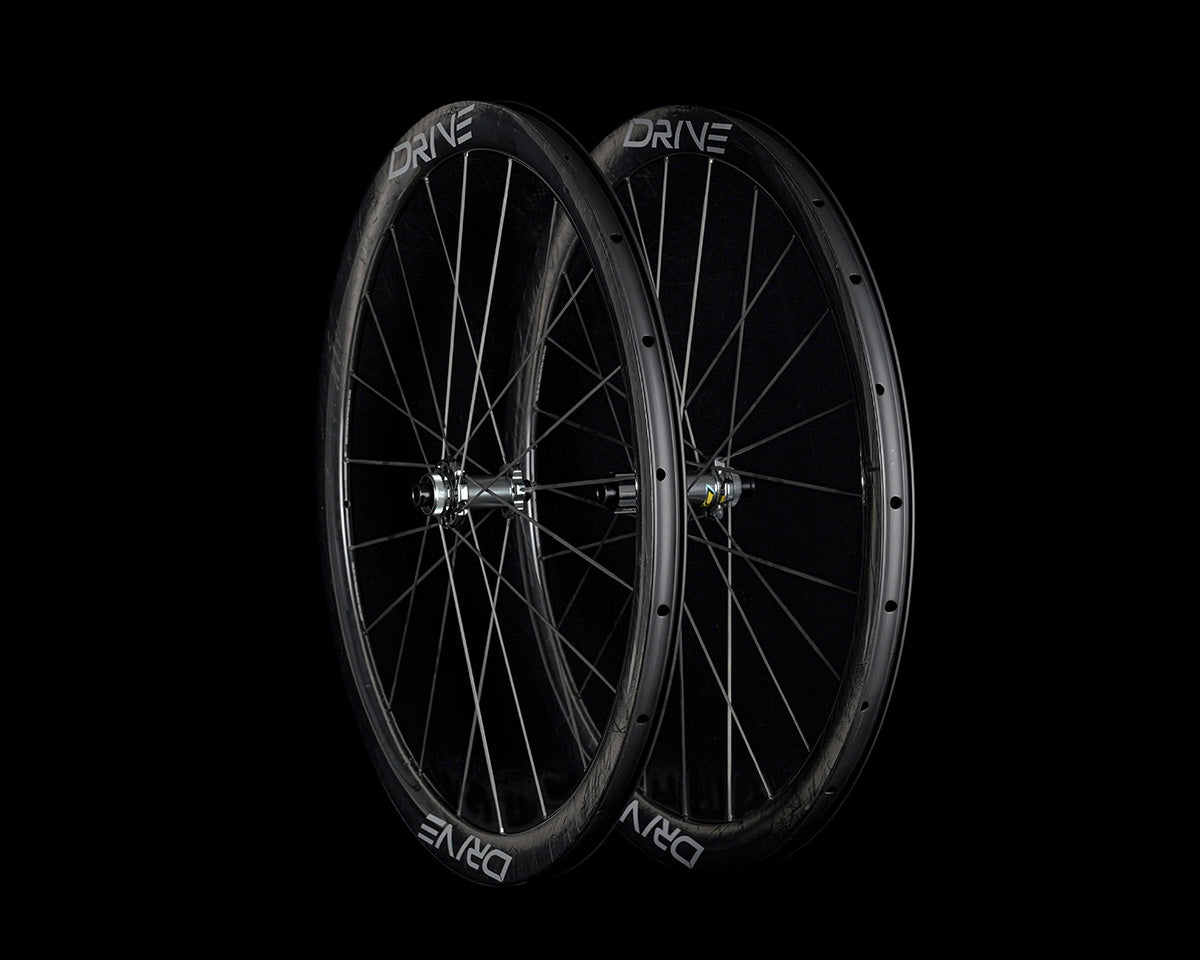

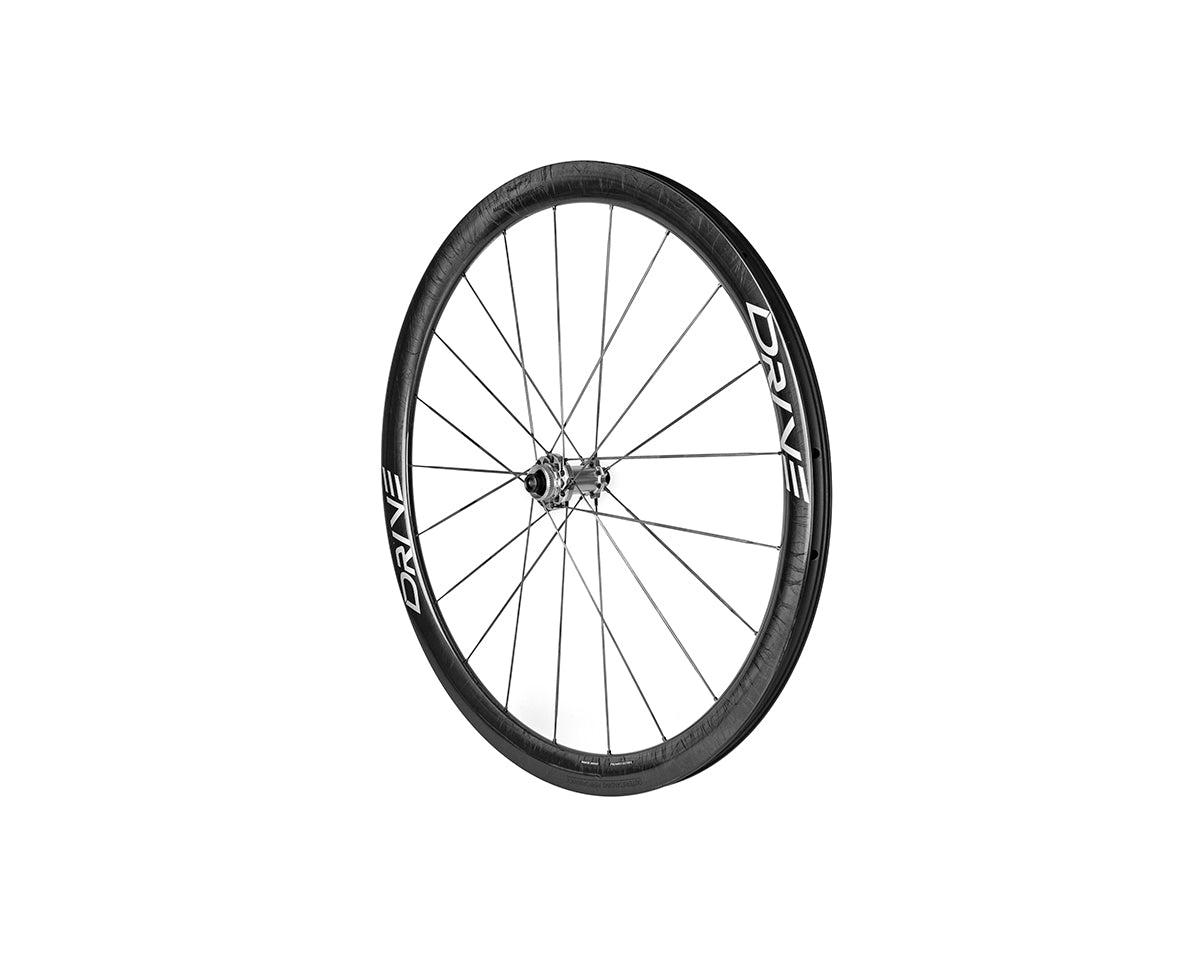

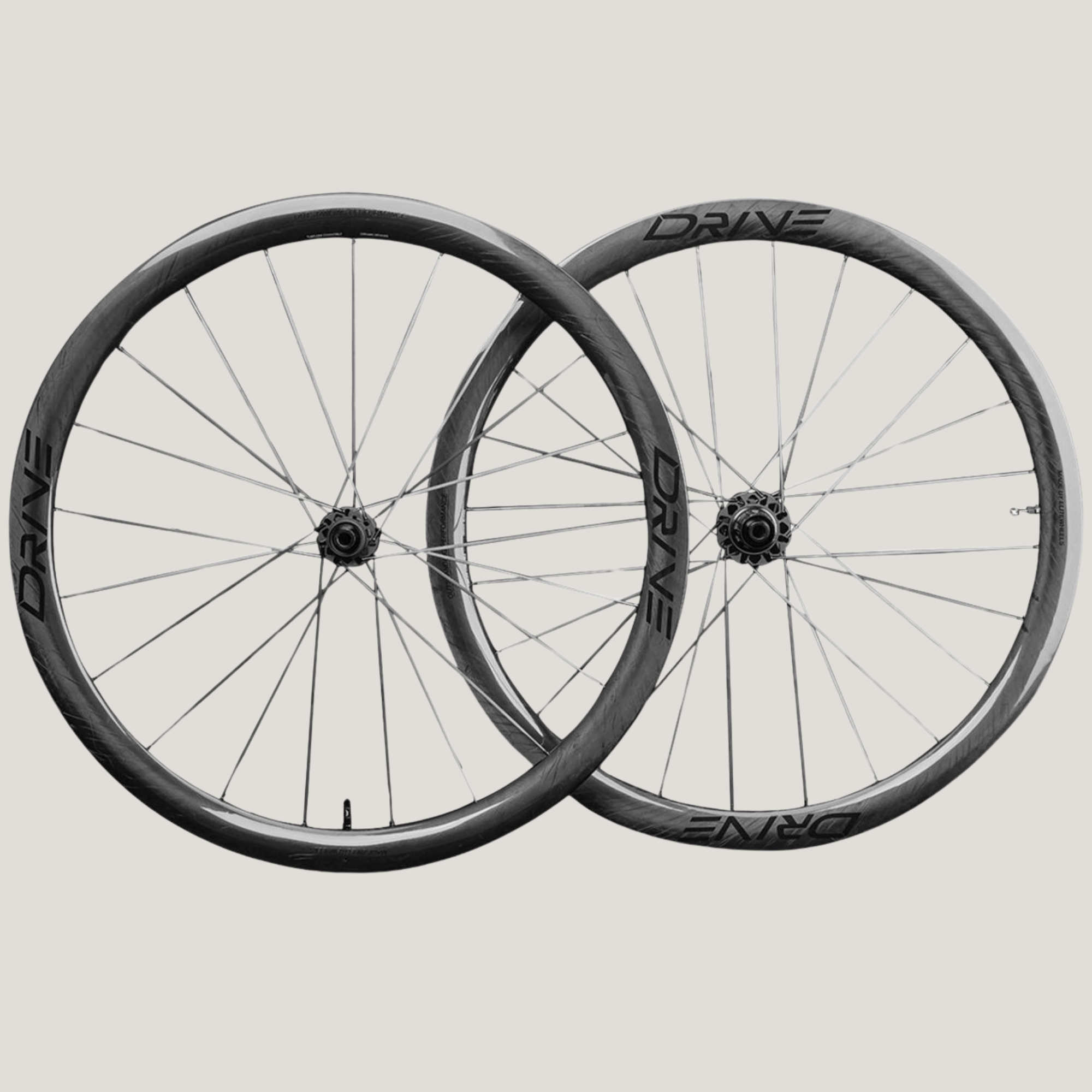

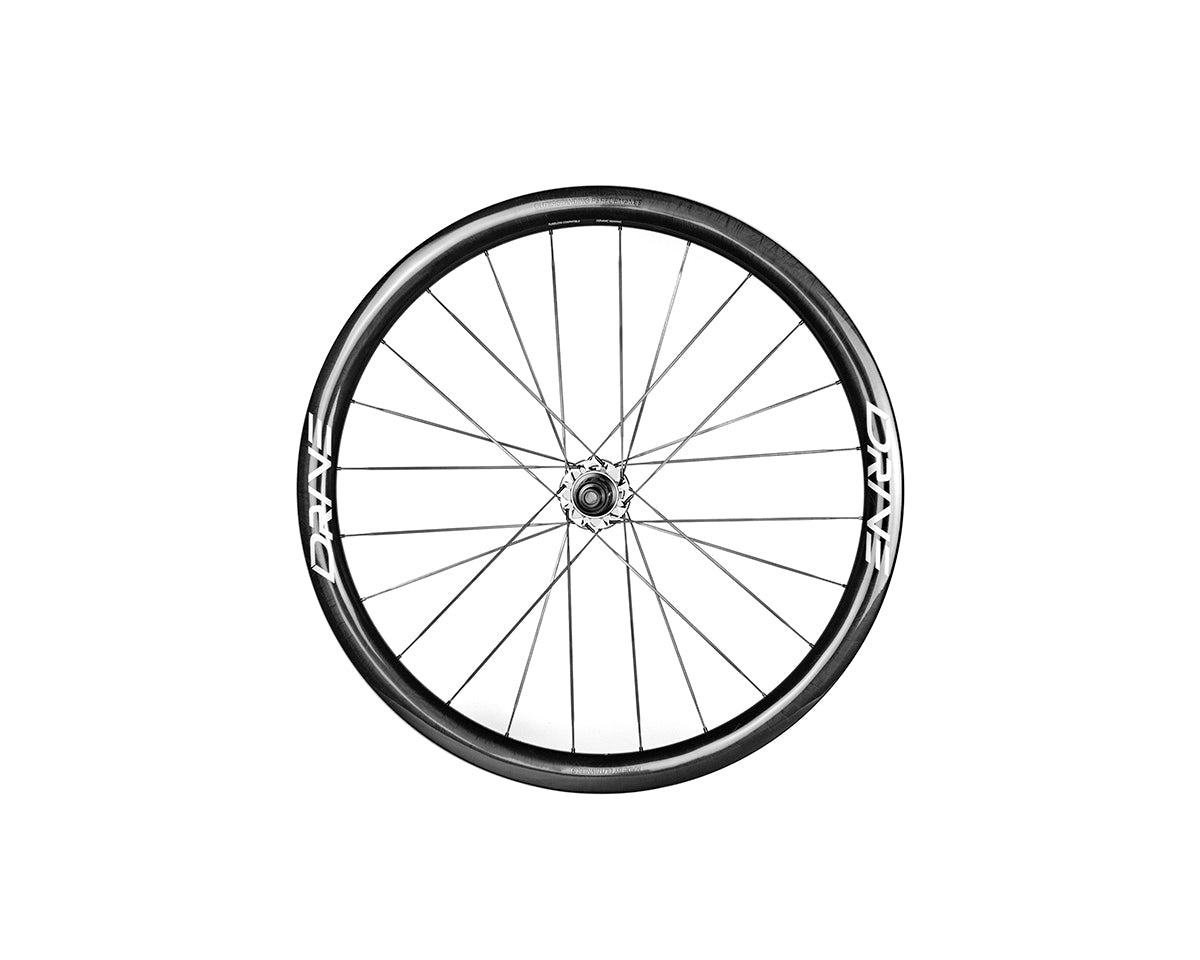

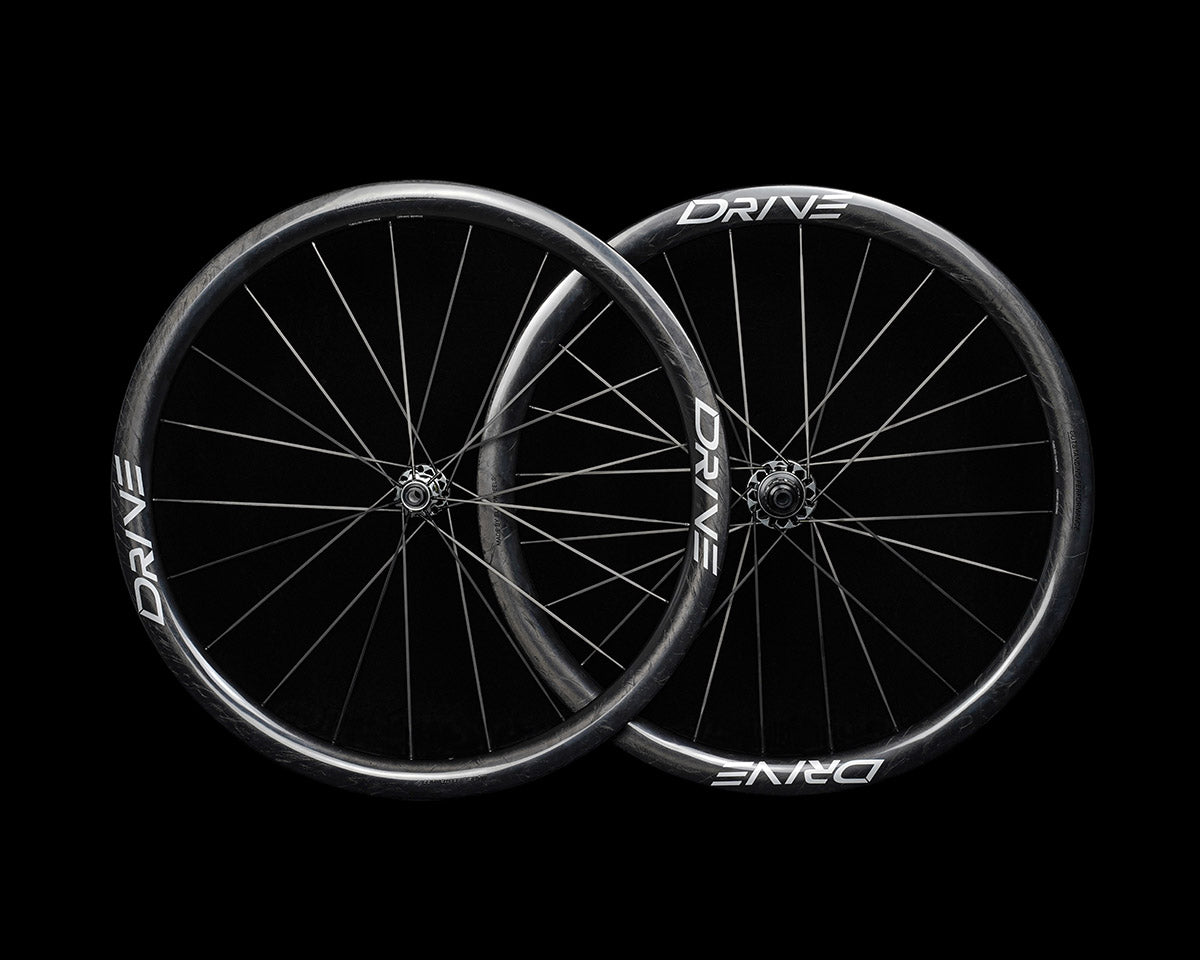

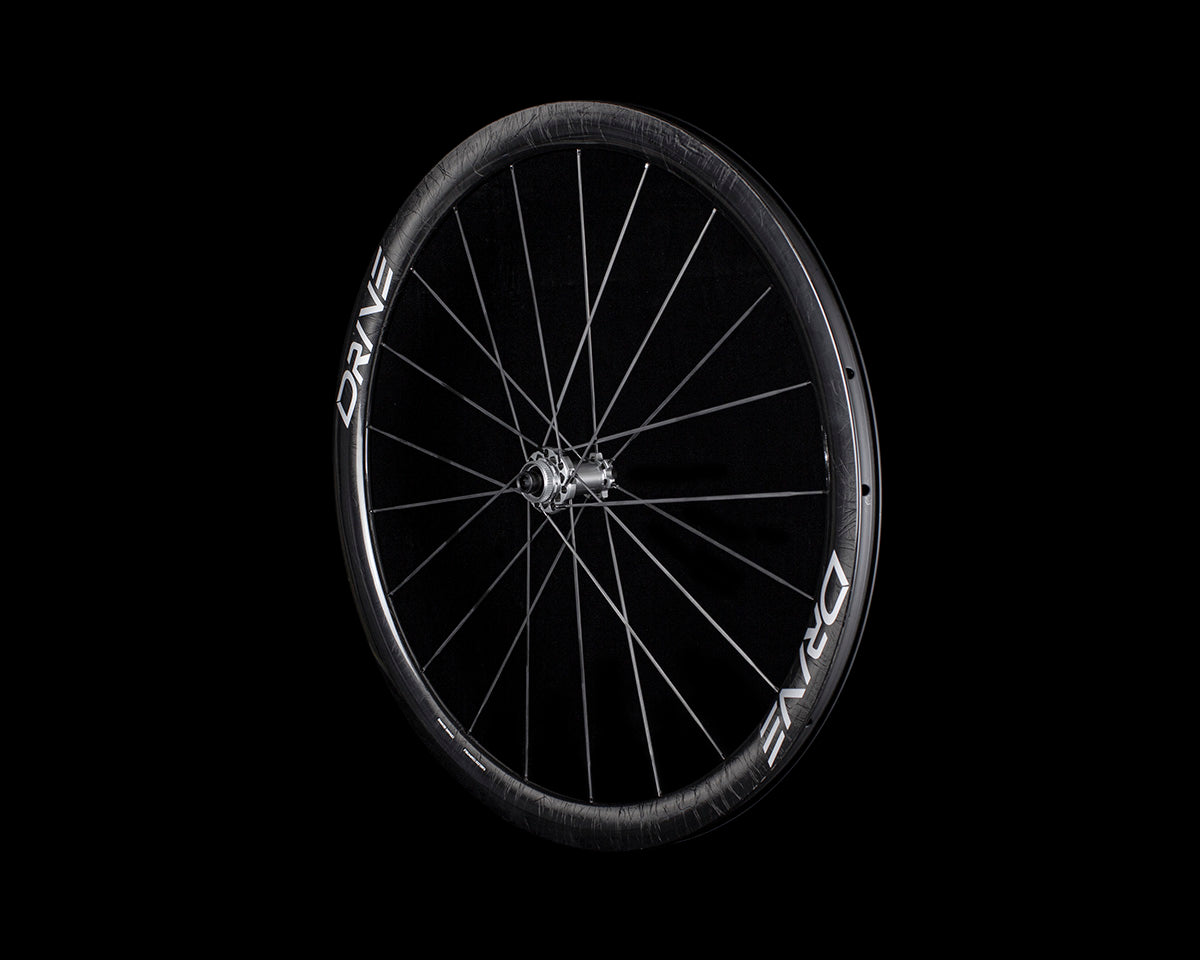

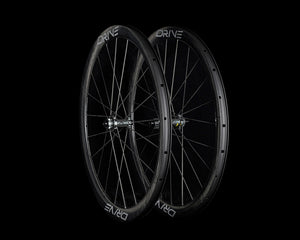

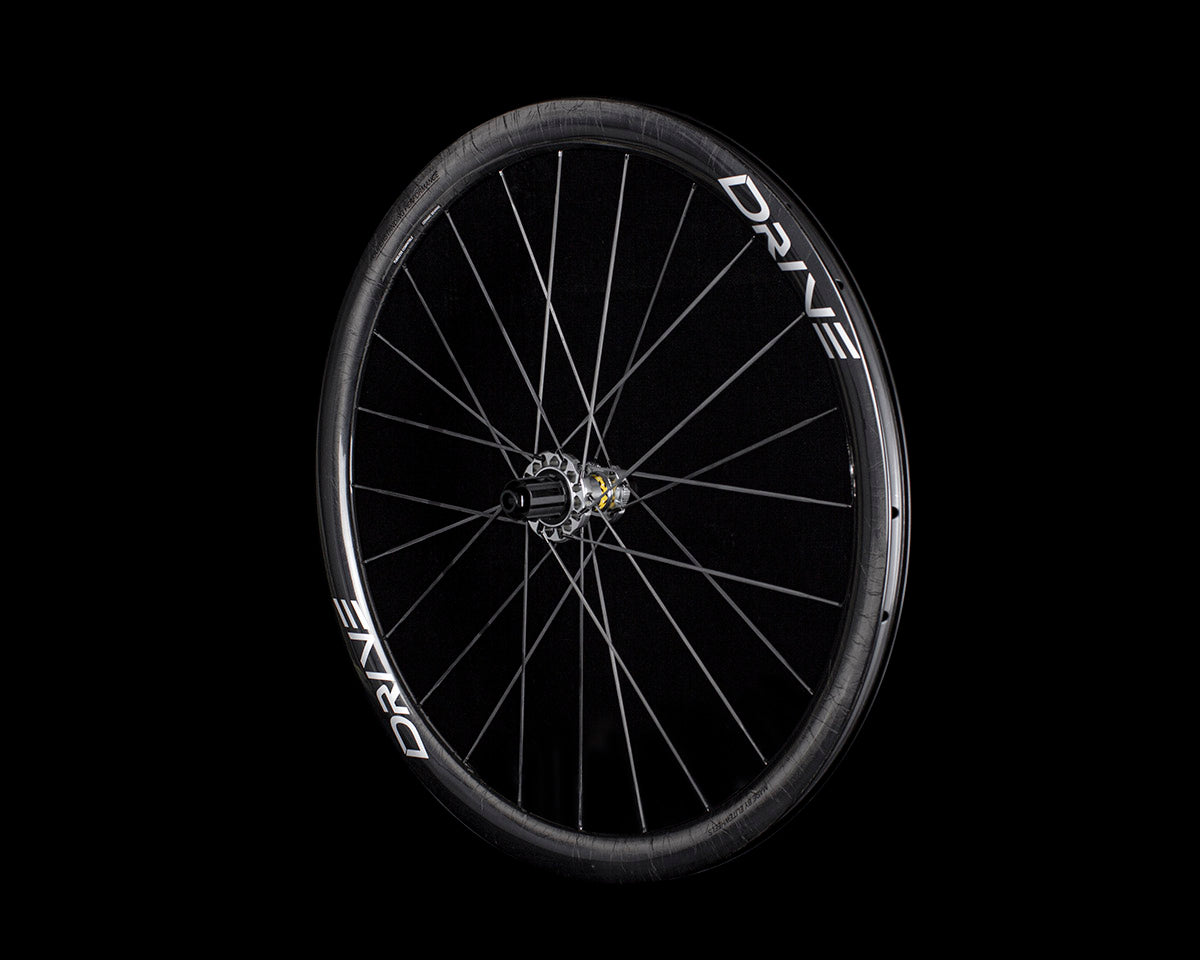

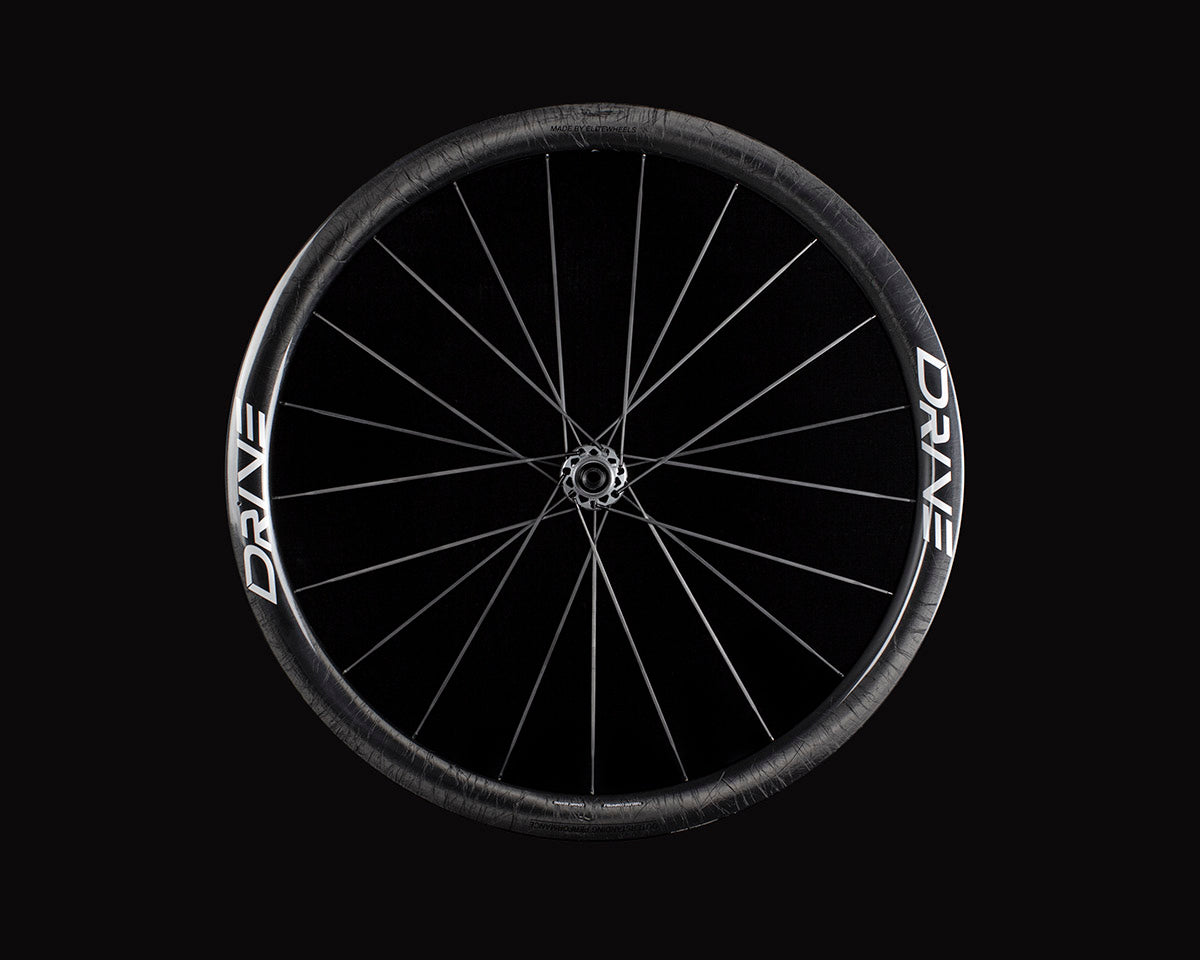

Elitewheels Drive 40D Carbon Wheels

Decals
Rs. 115,000.00
Rs. 115,000.00
Rs. 135,000.00
Shipping calculated at checkout.
Out of stock

EL-DR-40D-BK

View Full Details
Elitewheels Drive 40D Carbon Wheels

Specification

Rim
Wheel Size 700c
Tire Compatibility Clincher/ Tubeless
Bead Type Hooked
Rim Depth 40mm
Inner Width 21mm
Outer Width 28mm

Hub
Front Hub Spacing 12x100mm
Rear Hub Spacing 12x142mm
Bearing S&S Ceramic
Brake Compatibility Disc (Center Lock)
Freehub Type 4 Pawls
Freehub Compatibility Shimano / SRAM XDR / Campagnolo

Spoke
Front Spoke Pattern 2X/Radial (2:1)
Rear Spoke Pattern 2X/1X (2:1)
Spoke Count 21F/24R
Spoke Type Carbon Spoke (3.2mm)
Nipple Type Alloy Secure Lock
Spare Spokes 4PCS

Other
Rim Finish Glossy Marbling Black
Extras Pre-installed Rim Tape & Tubeless Valves
Weight (Pair) 1260±30g (without tubeless valves and rim tape)
Rider Weight Limit 275lbs/125kg
Recommended Tire Sizes 700 x 25-38C
Certification UCI Approved, CE Certified

Find The Right Wheelset For You Find The Right Wheelset For You

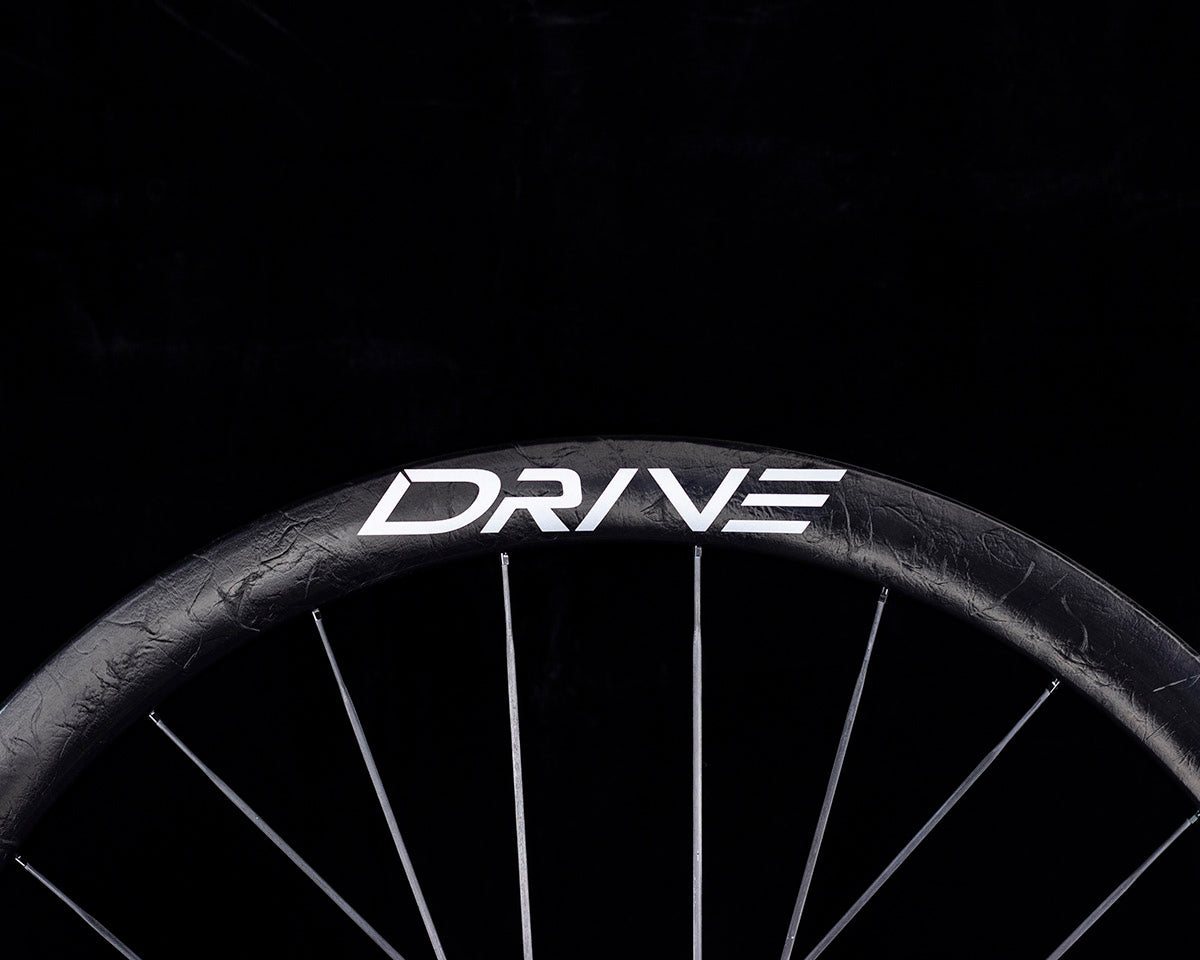

Rims

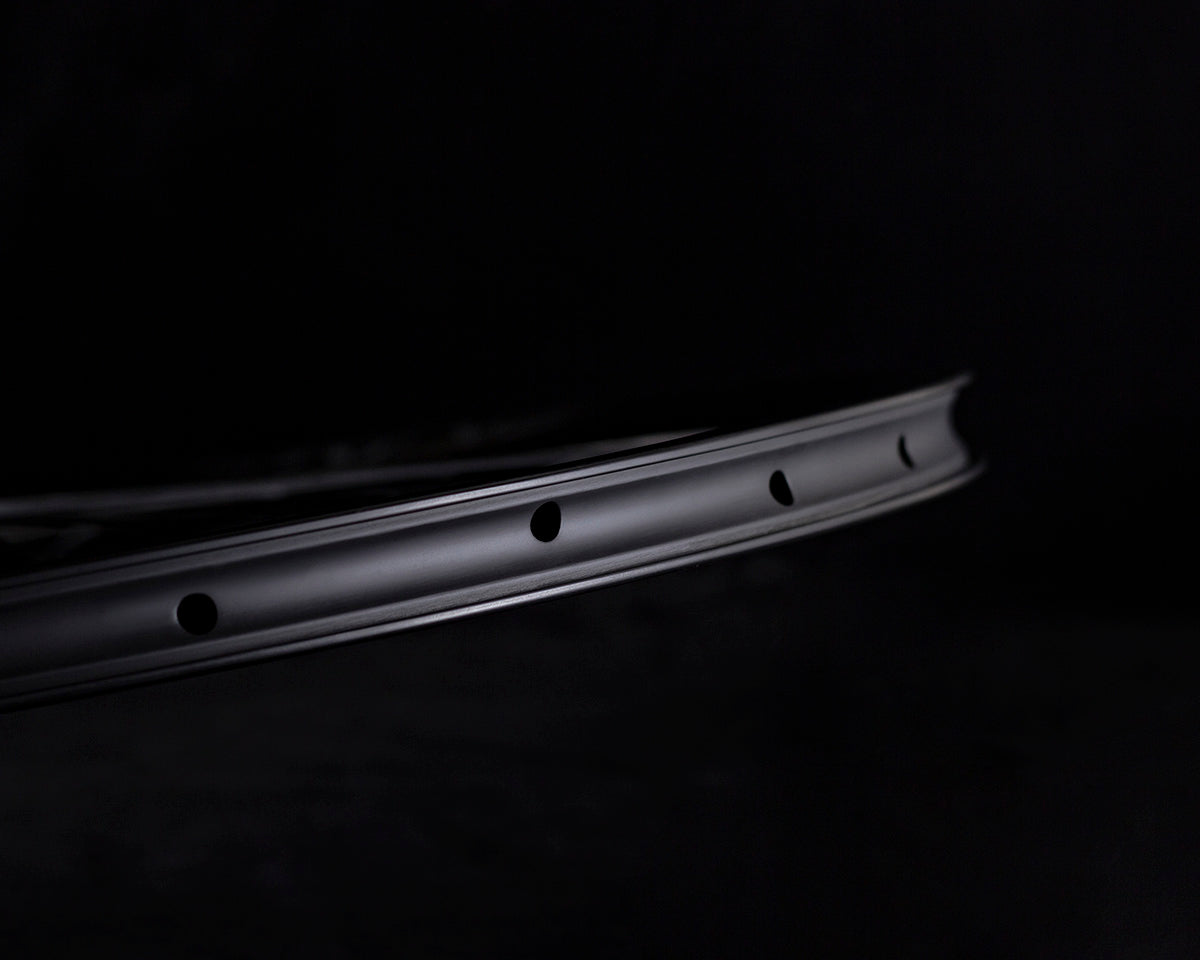

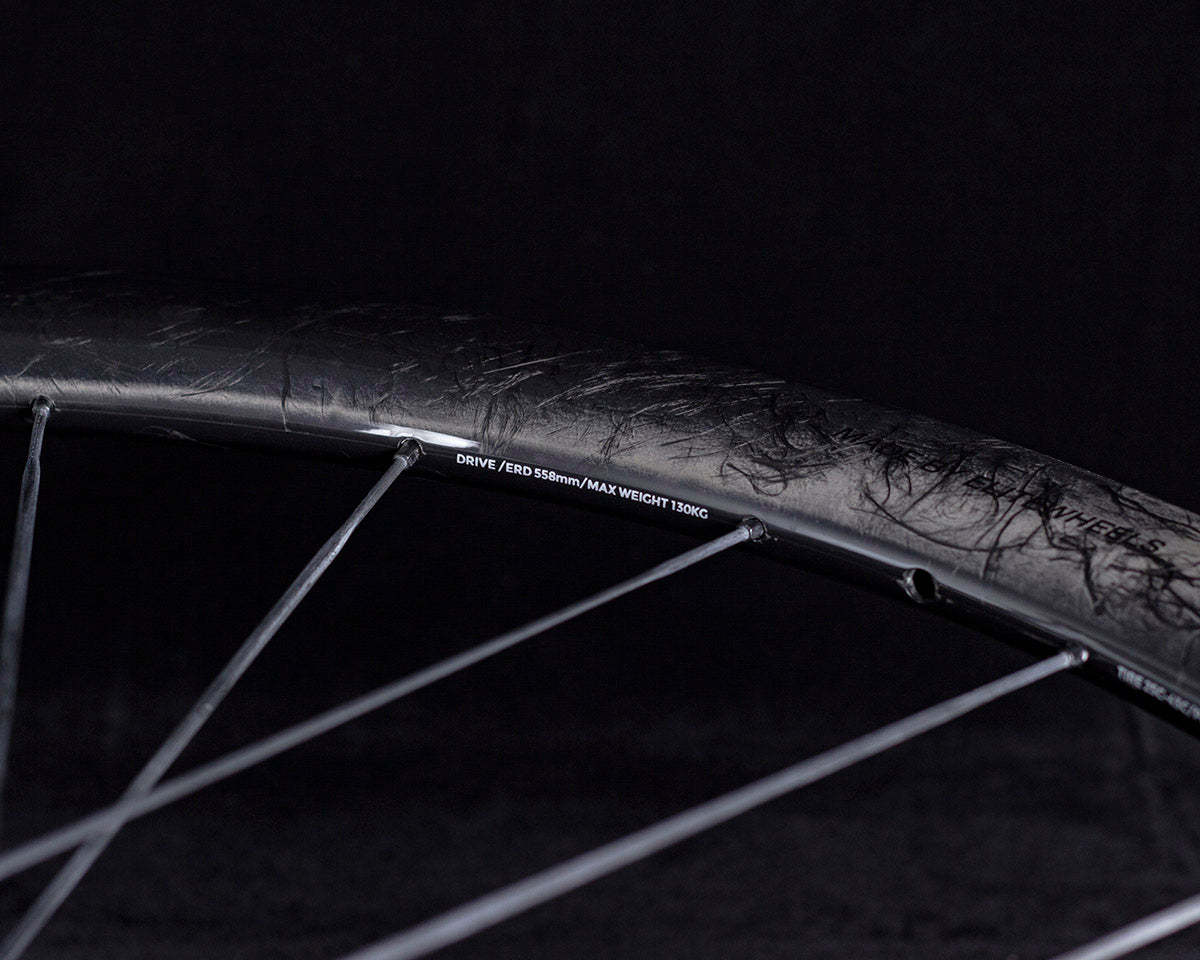

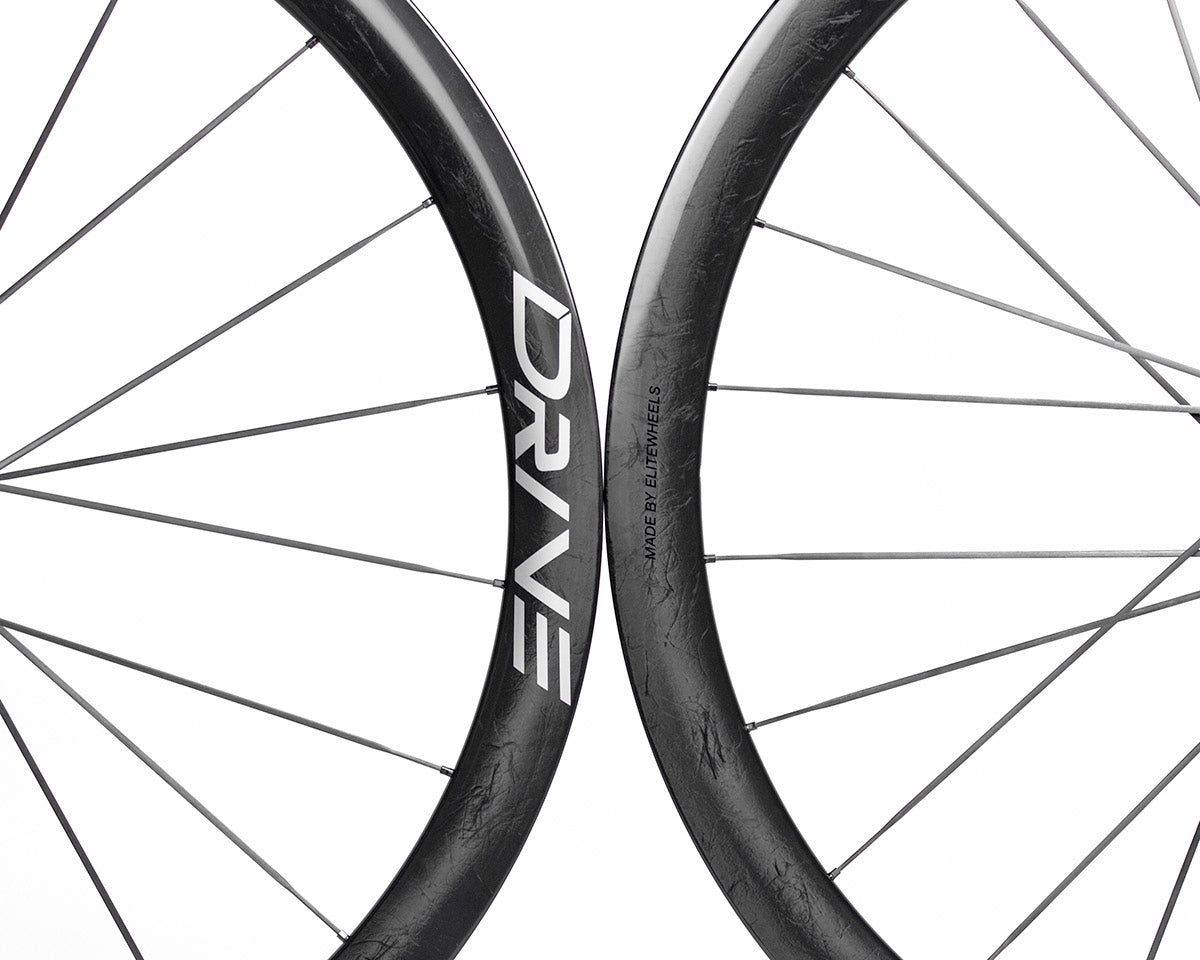

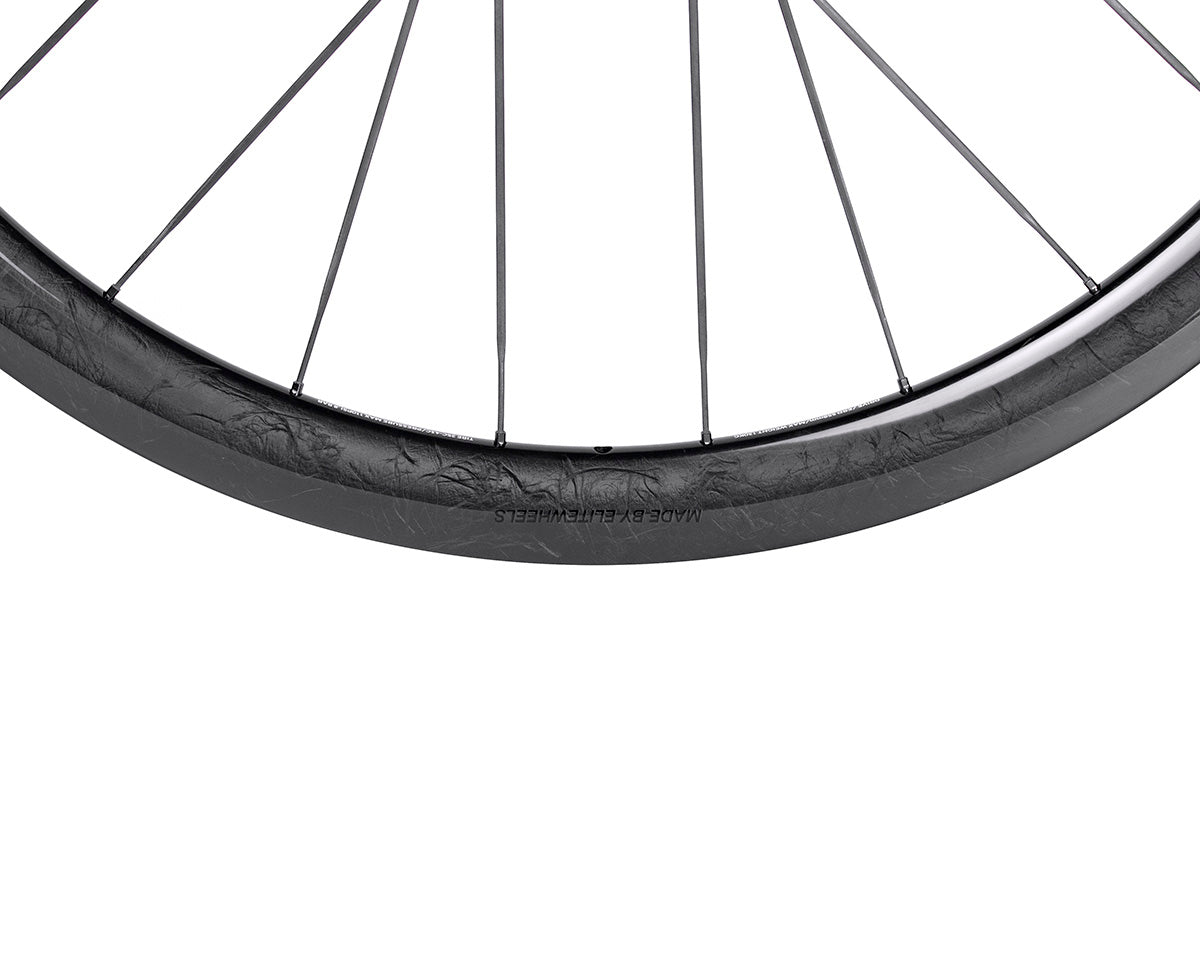

DRIVE RIMS

At Elitewheels, we design our Drive wheels to match the needs of professional riders. In order to deliver the best performance, we incorporate our own UNI carbon fiber, a specific ratio of T800 and T1000 carbon fiber , making rims not only strong, but also exceptionally light and stiff. The U/V-shaped rim profile of the Drive 40D was chosen to make the rim both aero as well as stable in windy conditions. The Drive 40D’s 21mm inner rim allows for wider tires to be run, allowing for more comfort and grip.

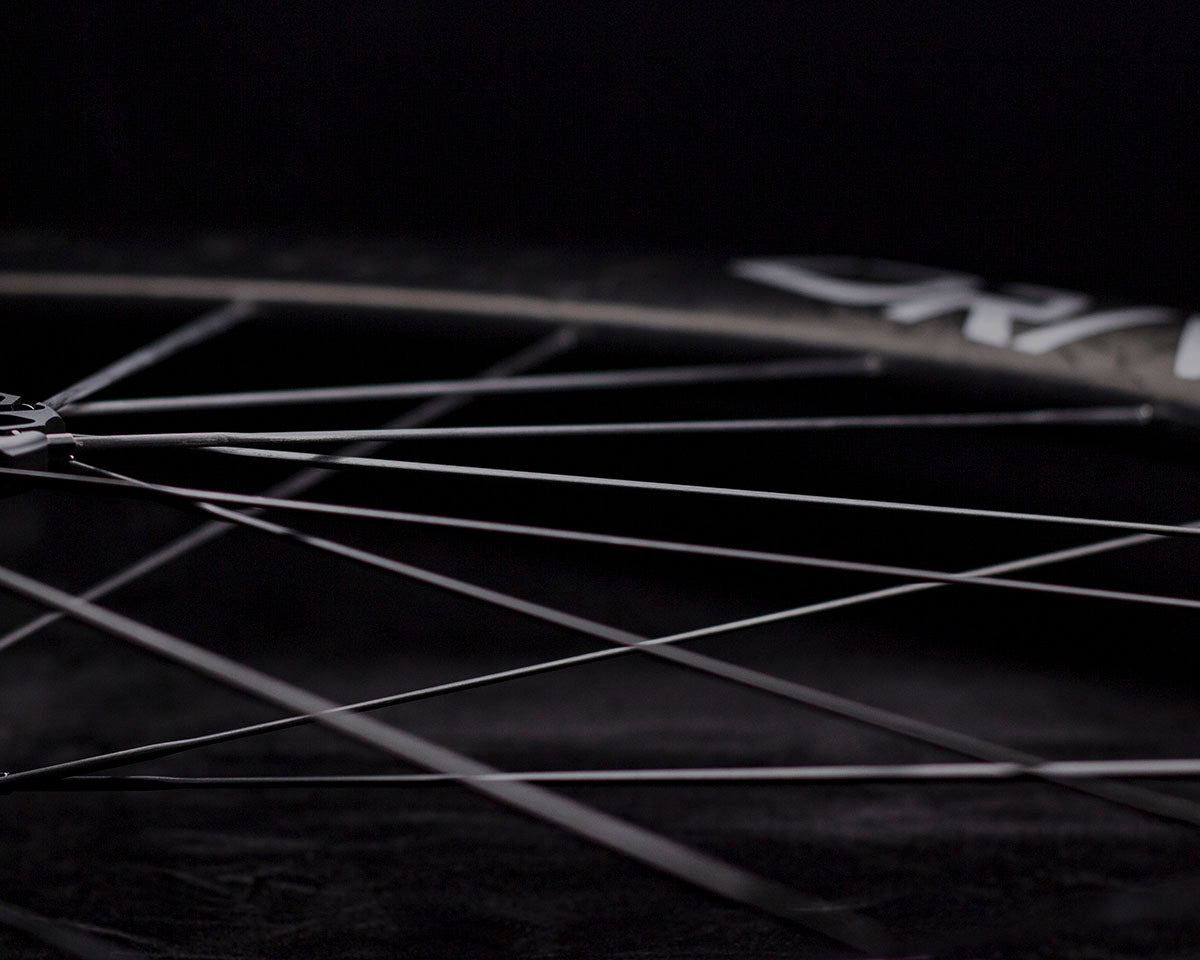

Spokes

What separates the Drive 40D from most other wheels is its use of high-modulus carbon spokes. They are 3.2mm wide aero bladed spokes, offering 7% more lateral stiffness as compared to equivalent steel spokes. The carbon spokes are mechanically secured, giving the benefit of being able to be trued and maintained just like regular steel spokes. Anti-loosening technology is also incorporated into the spoke nipples. The threads built into the nipples give them a double-locking effect.

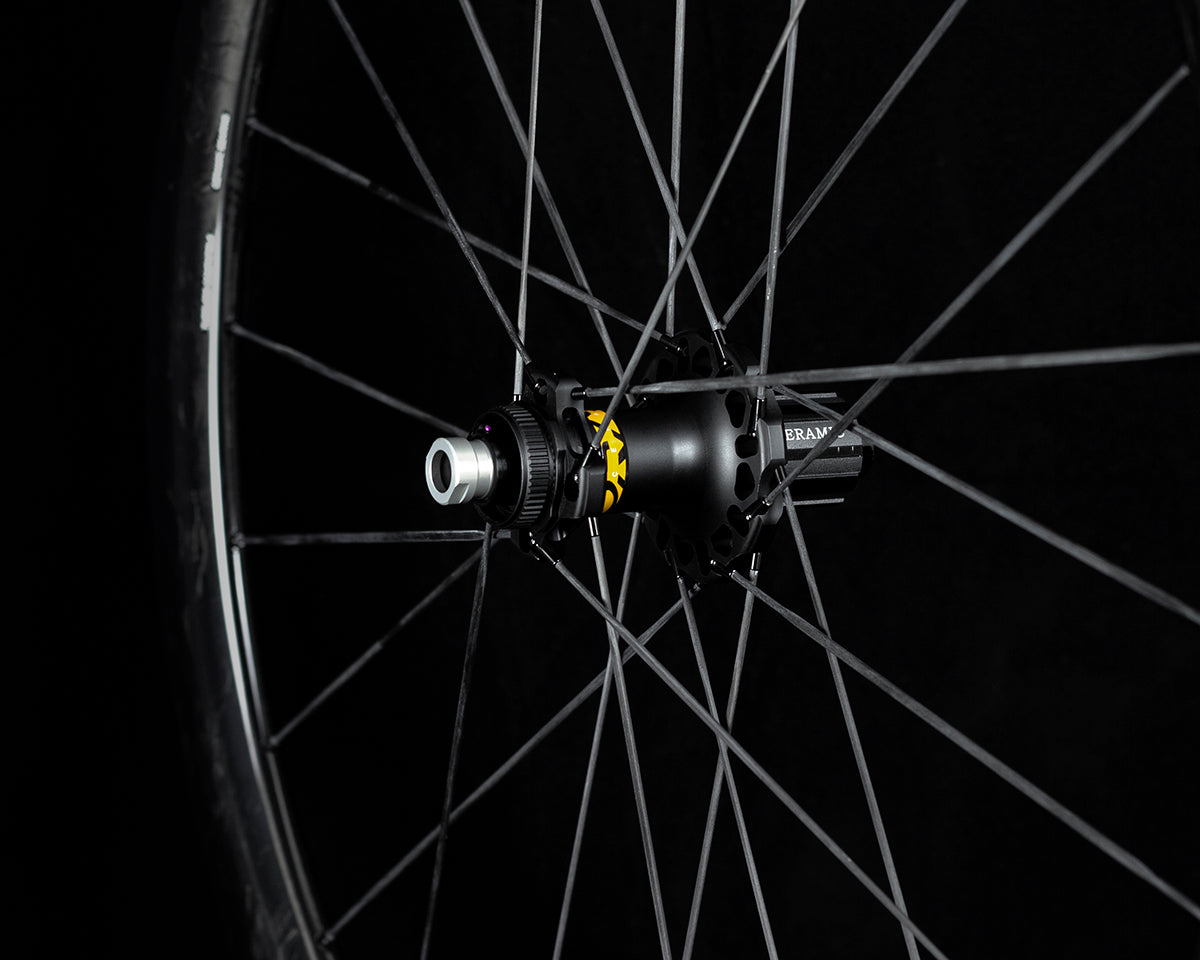

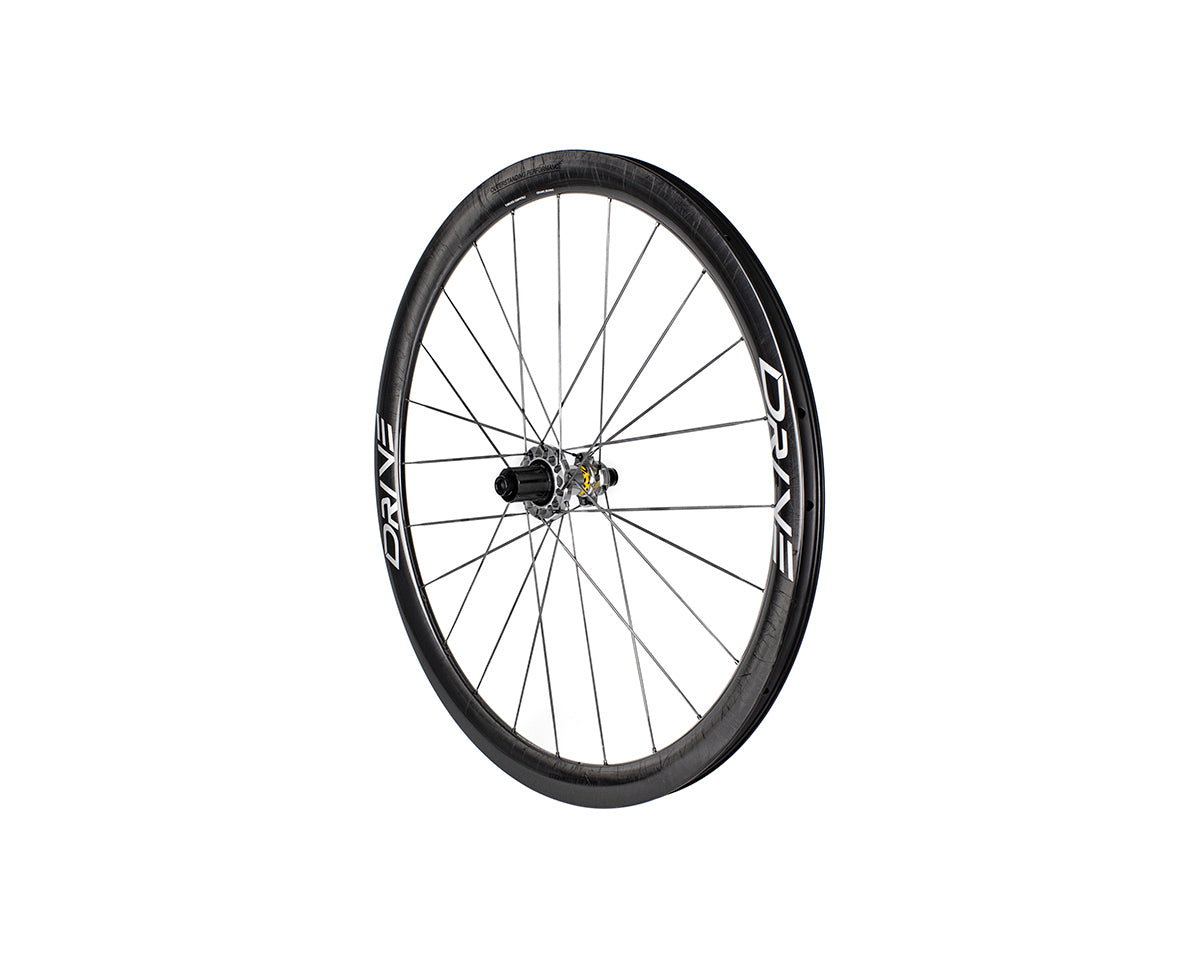

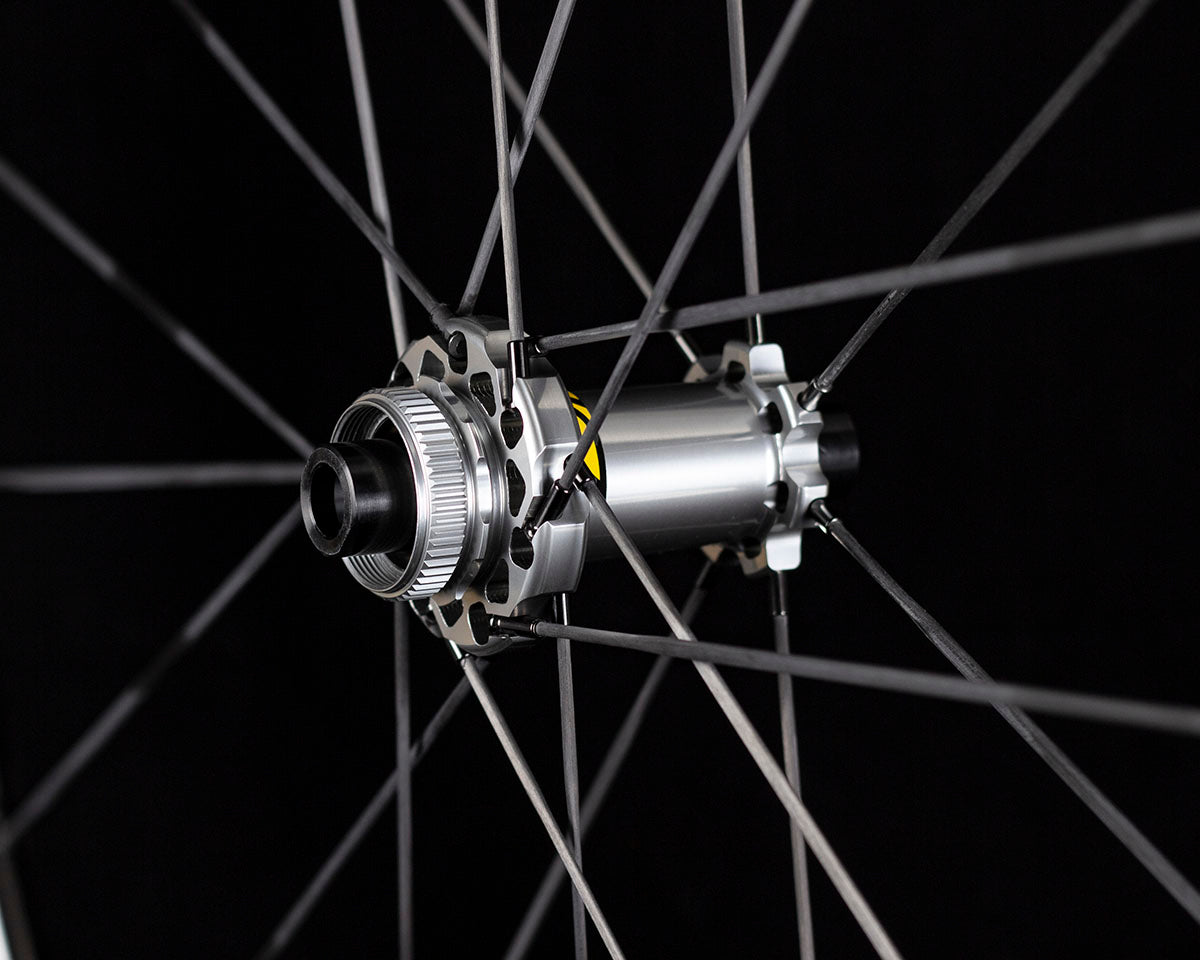

Hubs

To get the most out of carbon fiber spokes, we specifically designed the hub with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own high precision hubs with Fanuc CNC machines, which can machine to tolerances of just 0.02mm. This not only allows for lower rolling resistance but also increases bearing longevity.

Bearings

The 40D’s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better rigidity. The use of mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.
