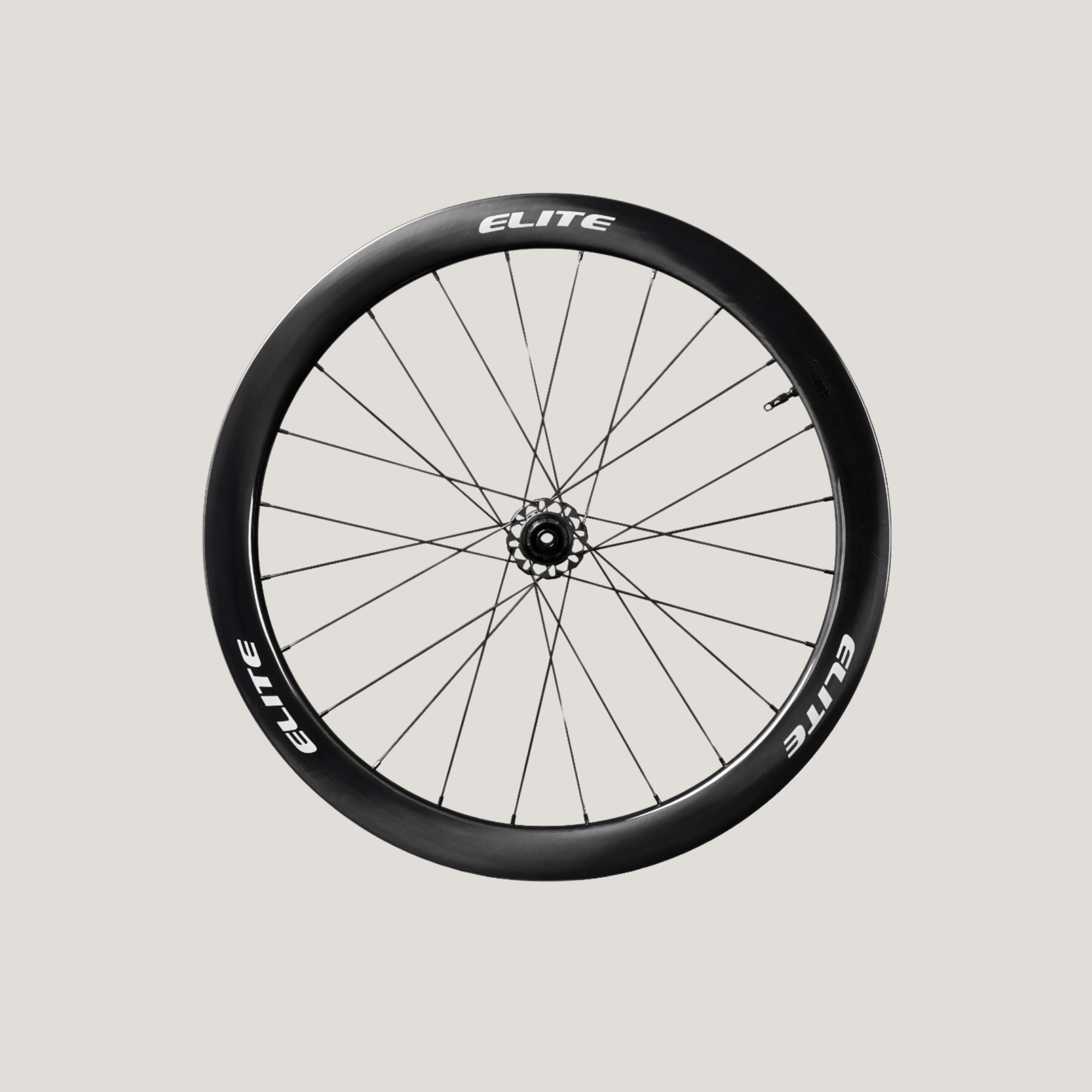

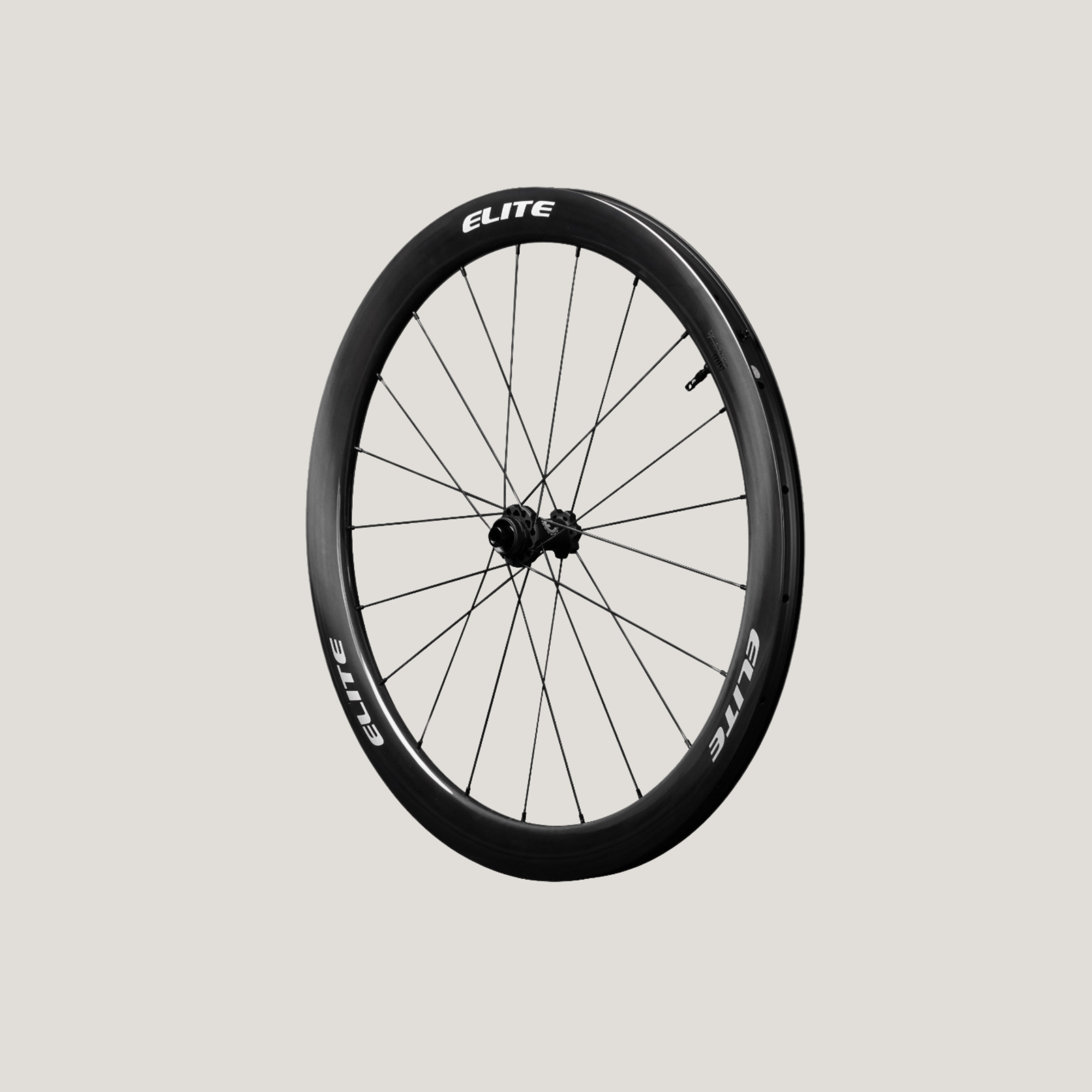

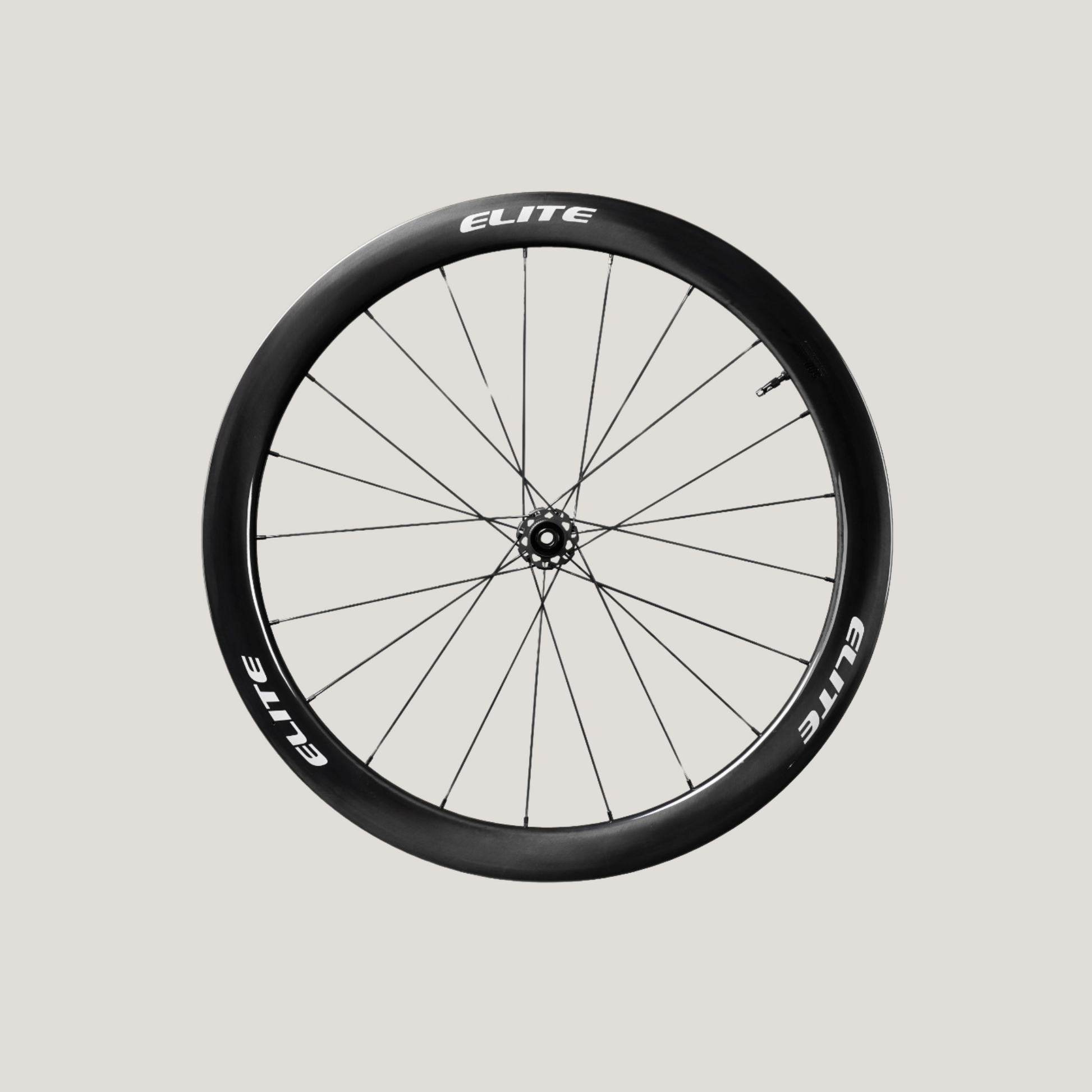

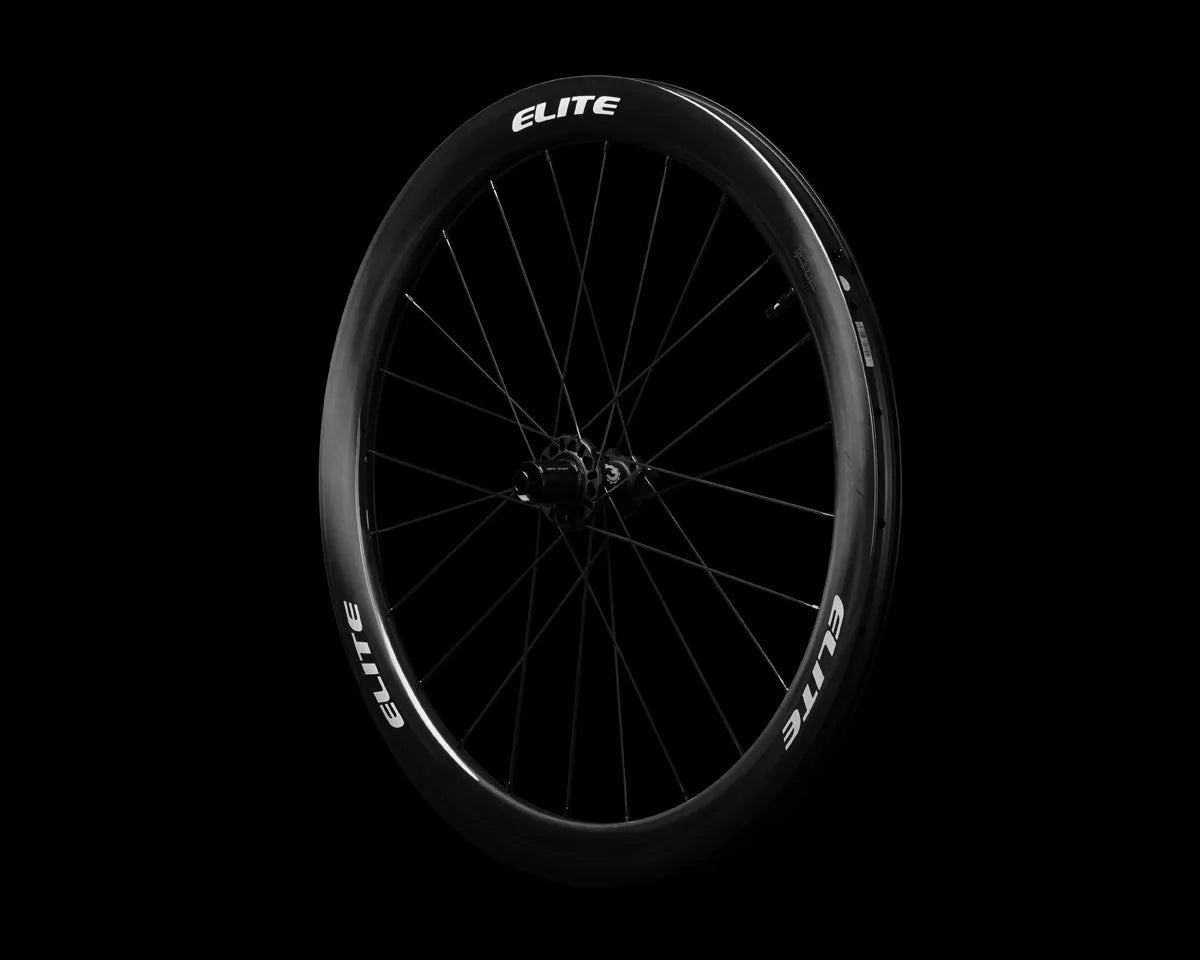

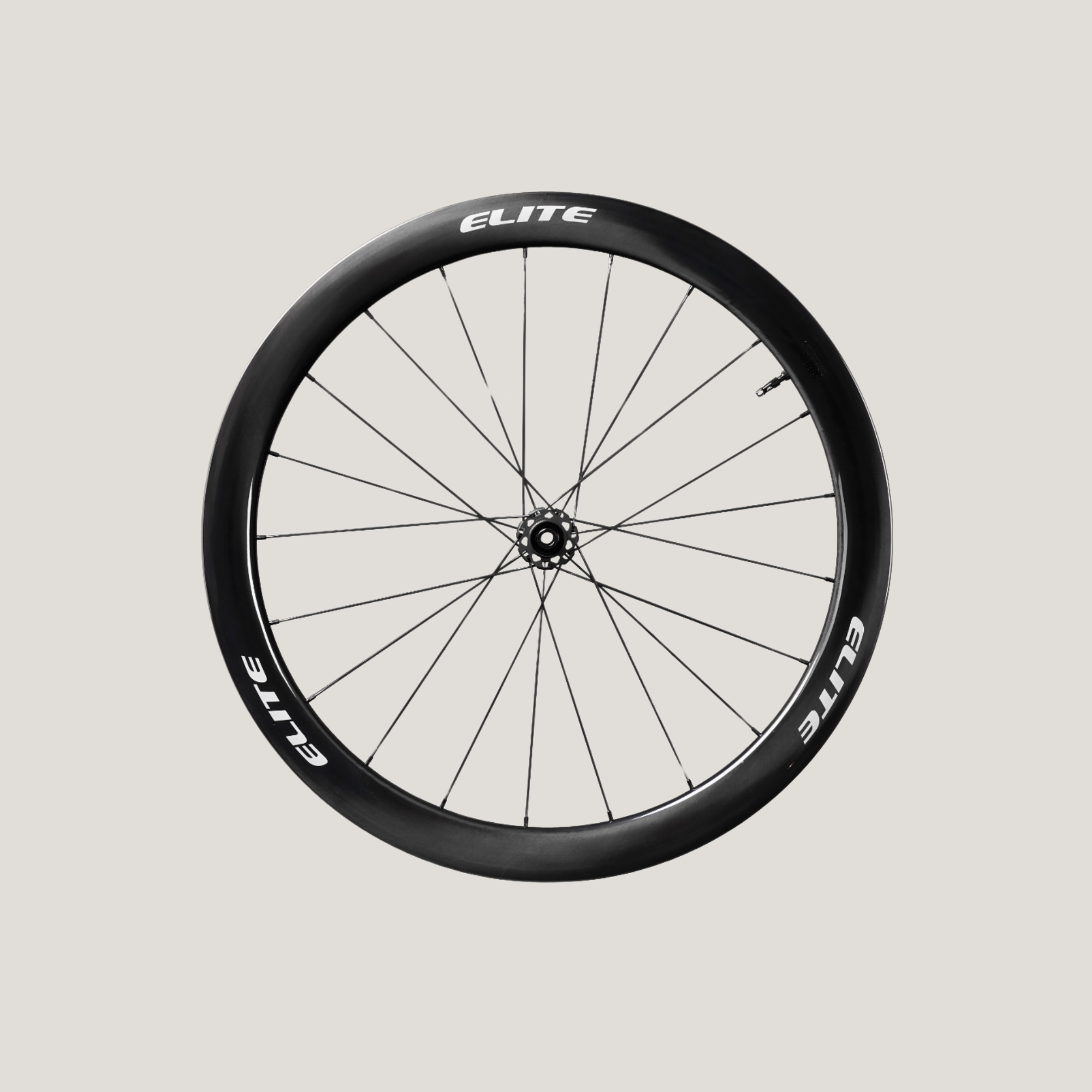

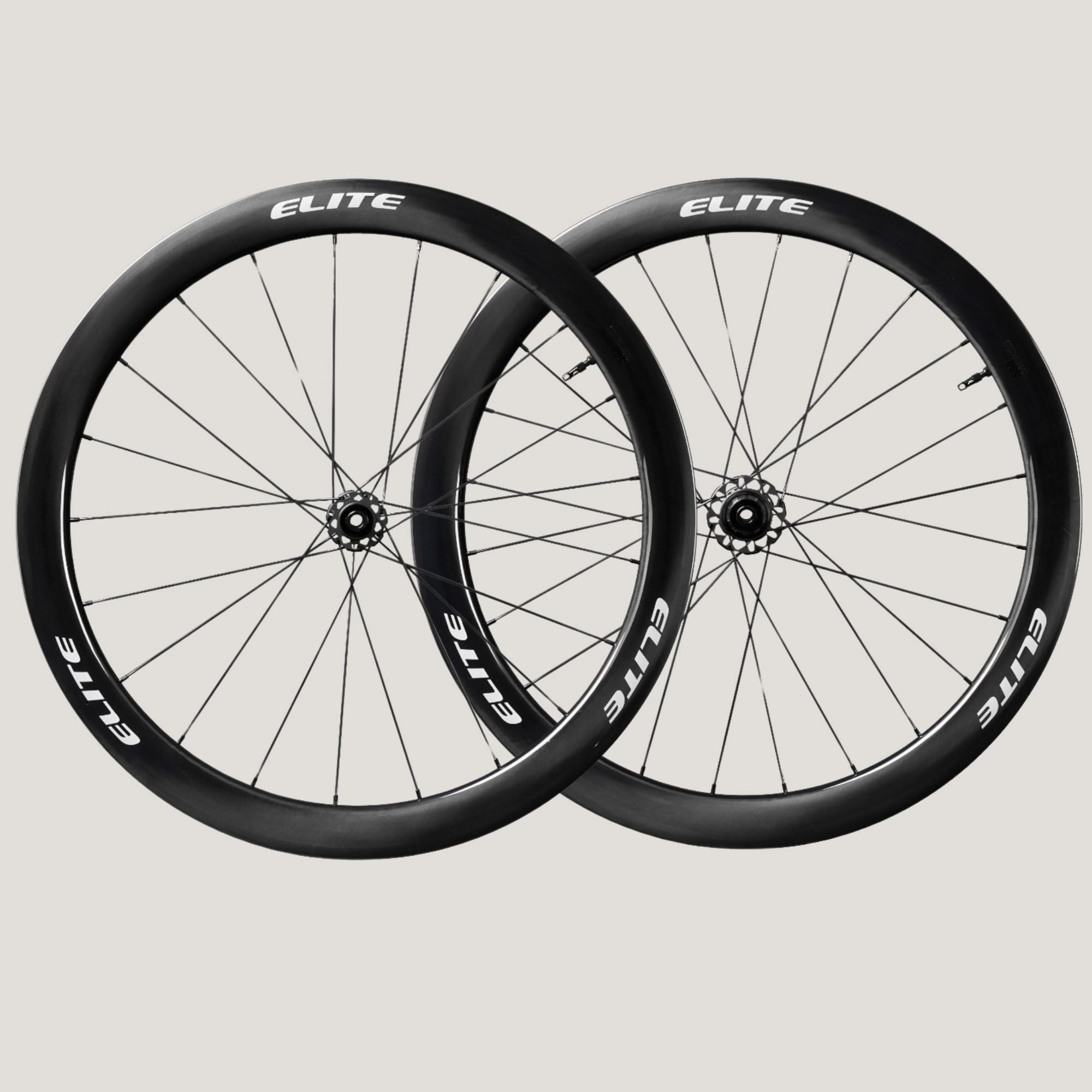

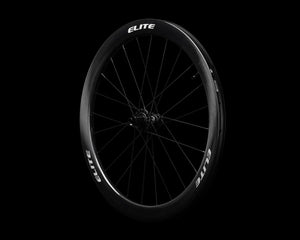

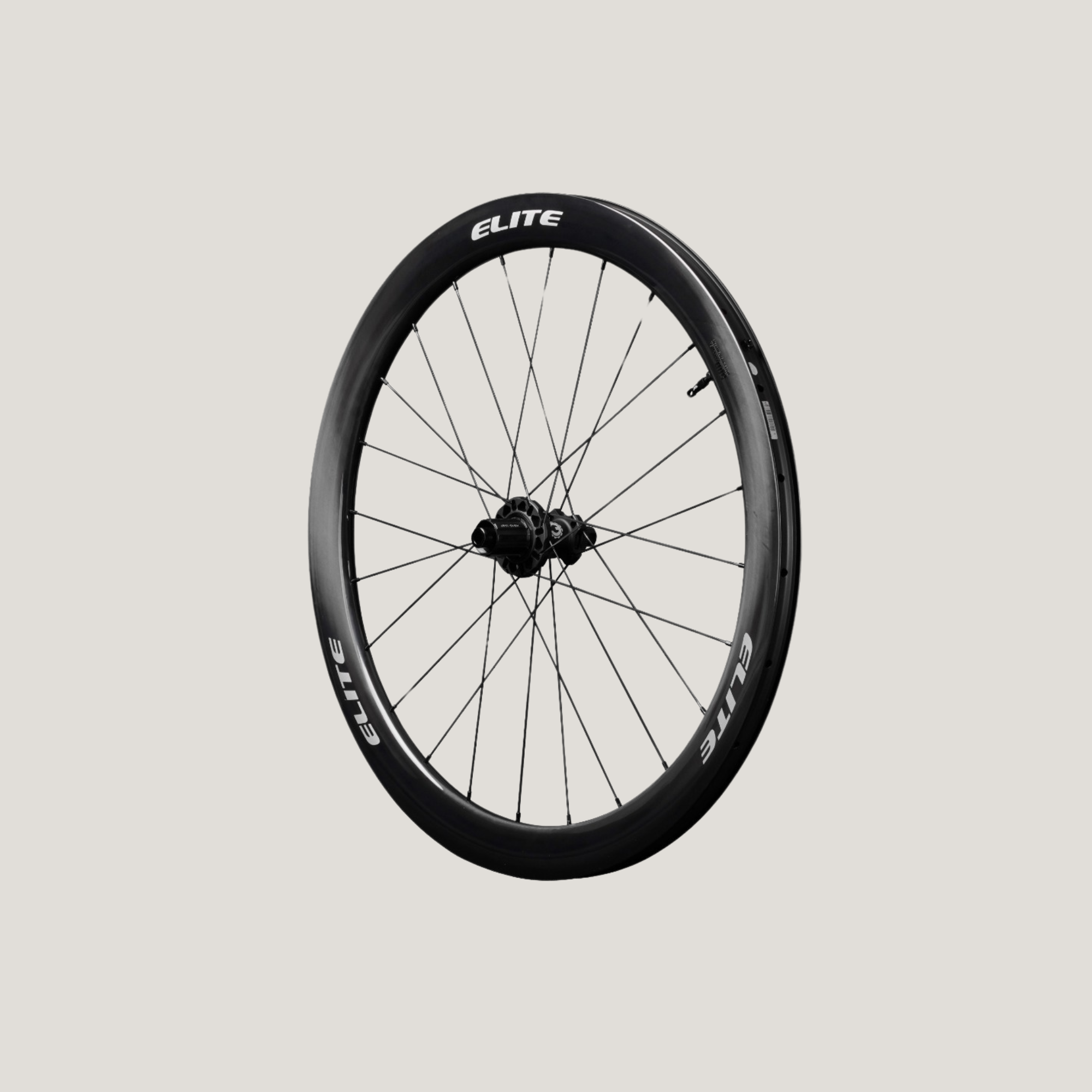

Elitewheels Marvel 50D ll (version 2)

Decals
Rs. 76,999.00
Rs. 76,999.00
Rs. 84,999.00
Shipping calculated at checkout.
1 in Stock Now

EL-ML-50D-II

View Full Details

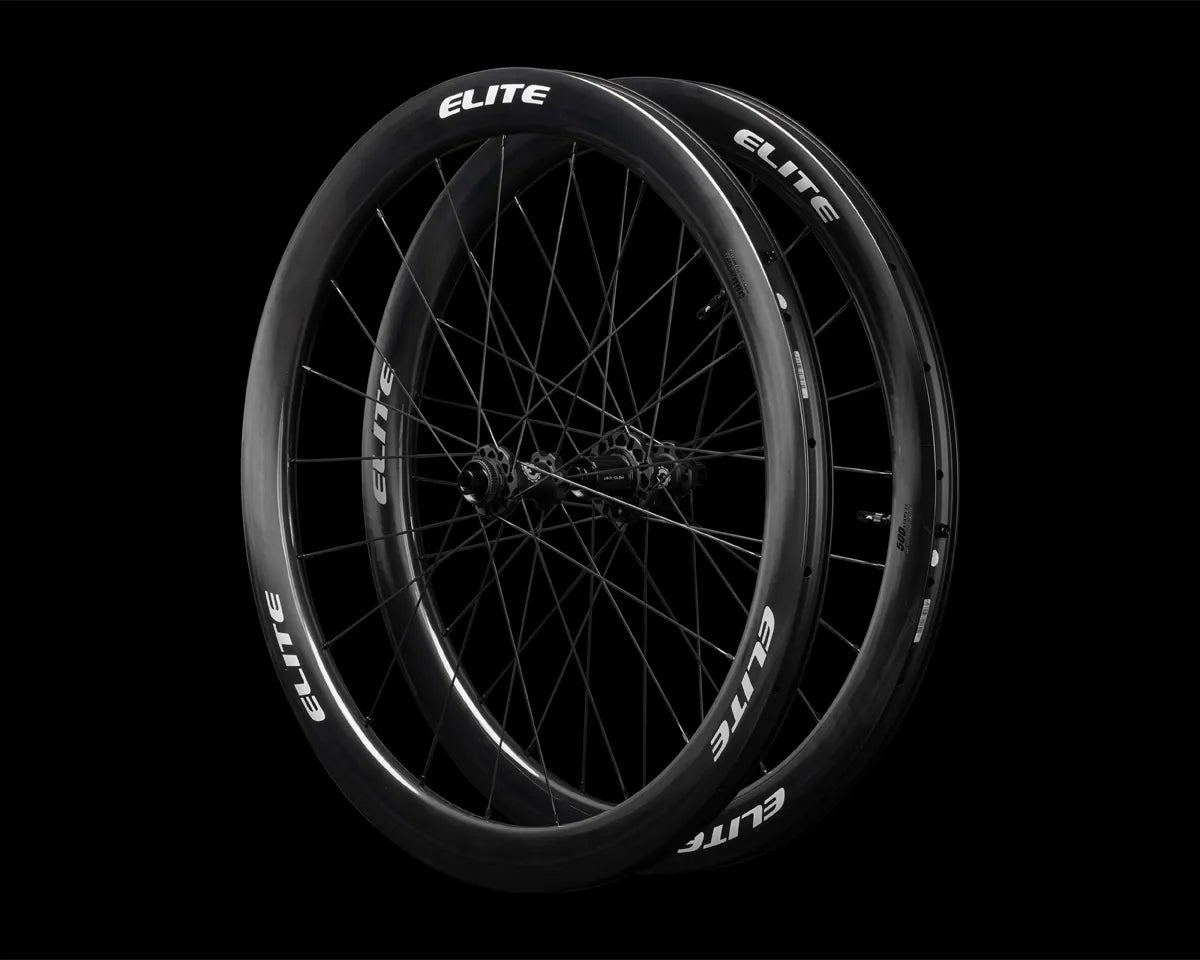

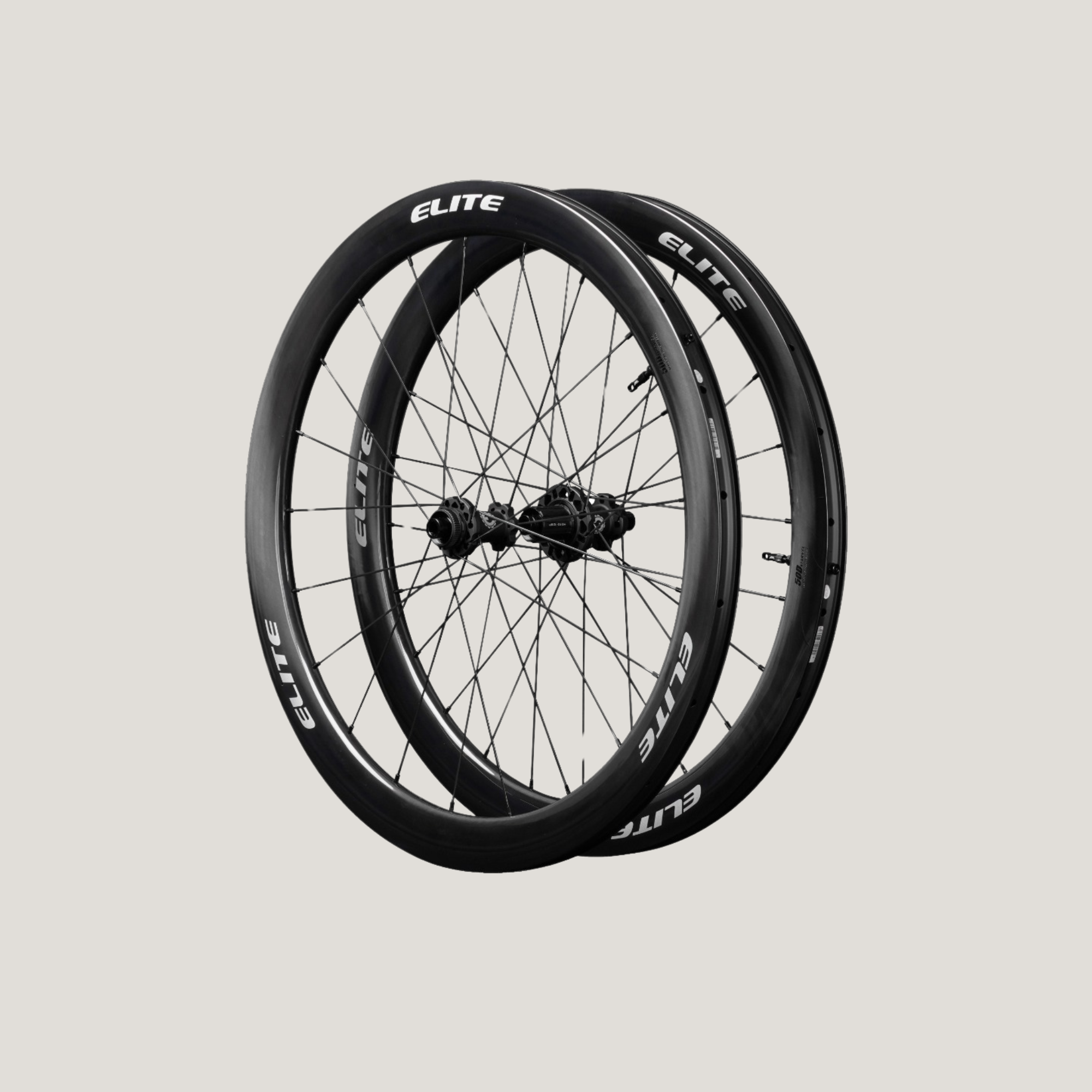

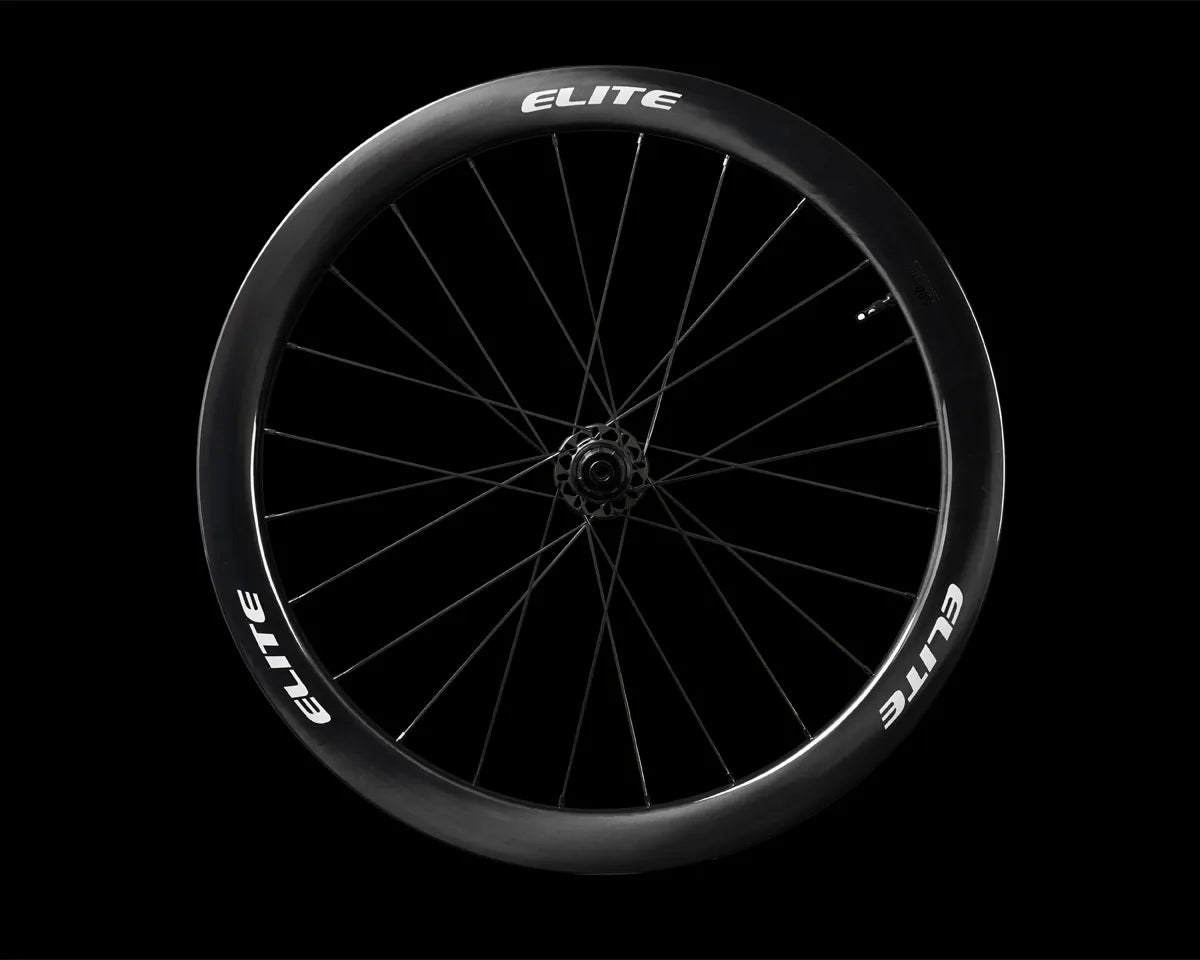

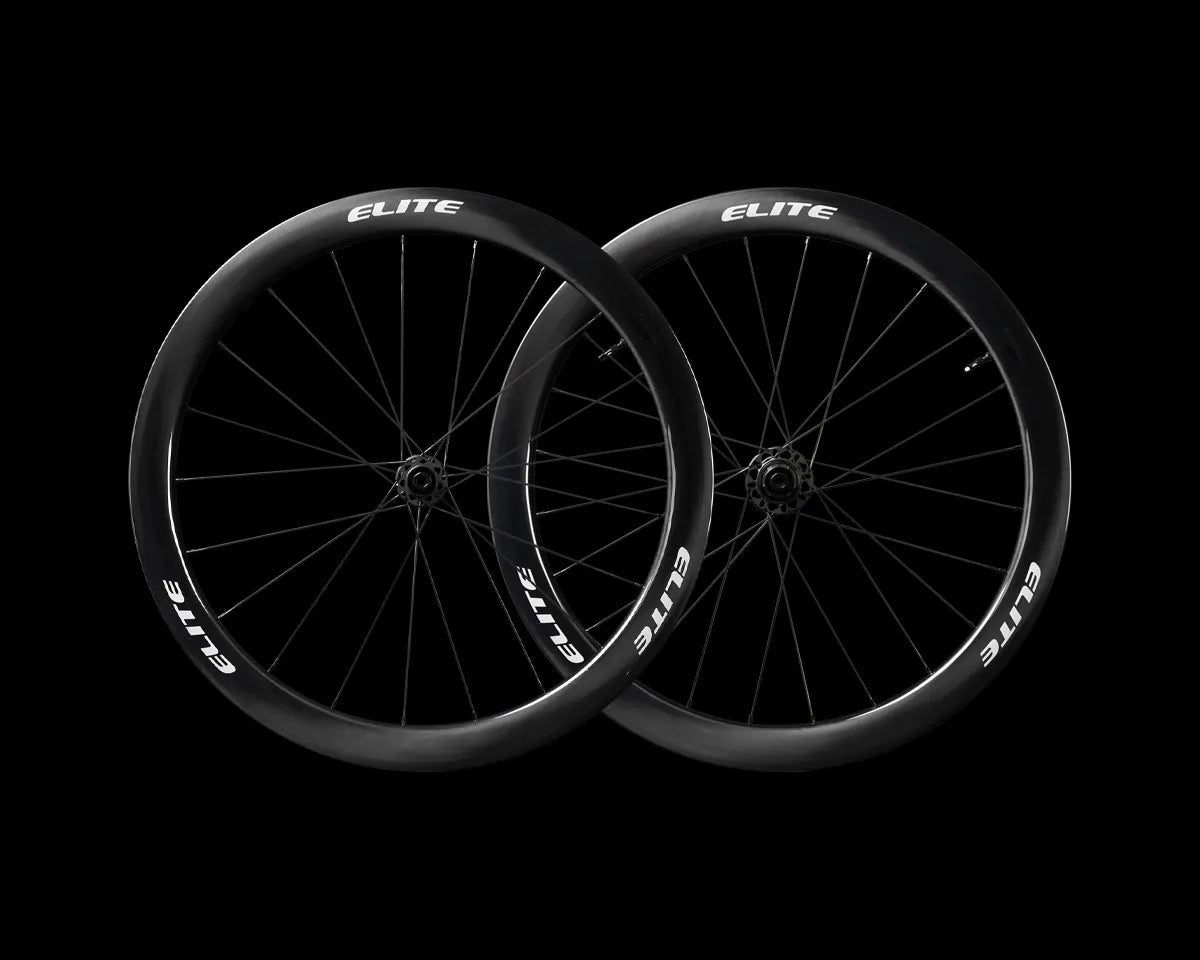

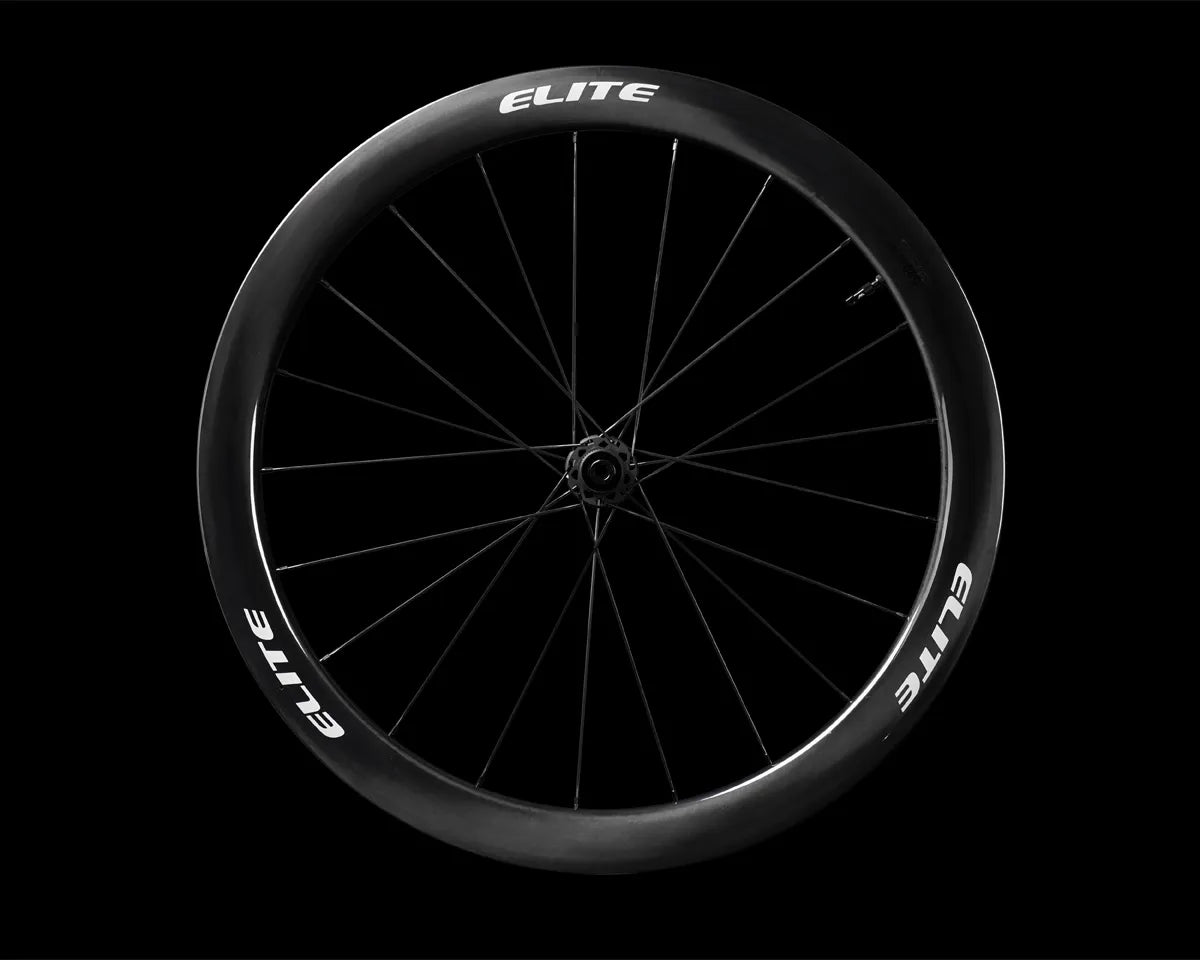

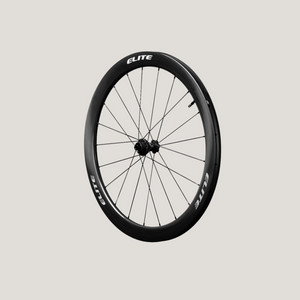

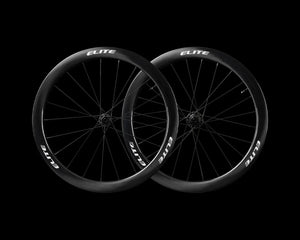

Elitewheels Marvel 50D ll (version 2)

Specification

Rim
Series Marvel 50D II
Wheel Size 700c
Tire Compatibility Clincher/Tubeless
Rim Depth 50mm
Inner Width 23mm
Outer Width 31mm

Hub
Front Hub Spacing 12x100mm
Rear Hub Spacing 12x142mm
Bearing S&S Ceramic
Brake Compatibility Disc (Center Lock)
Freehub Type 4 Pawls
Freehub Compatibility Shimano / SRAM XDR

Spoke
Front Spoke Pattern 2X/Radial (2:1)
Rear Spoke Pattern 2X/1X (2:1)
Spoke Count 21F/24R
Spoke Type Alpina Ultralite Aero
Nipple Type Alloy Secure Lock

Other
Weight(pair) 1500g±30g (without tubeless valves and rim tape)
Extras Rim Tape(Installed), Tubeless Valves(Installed)
Rider Weight Limit 270lbs/120kg
Compatible Tire Sizes 700 x 28-40C

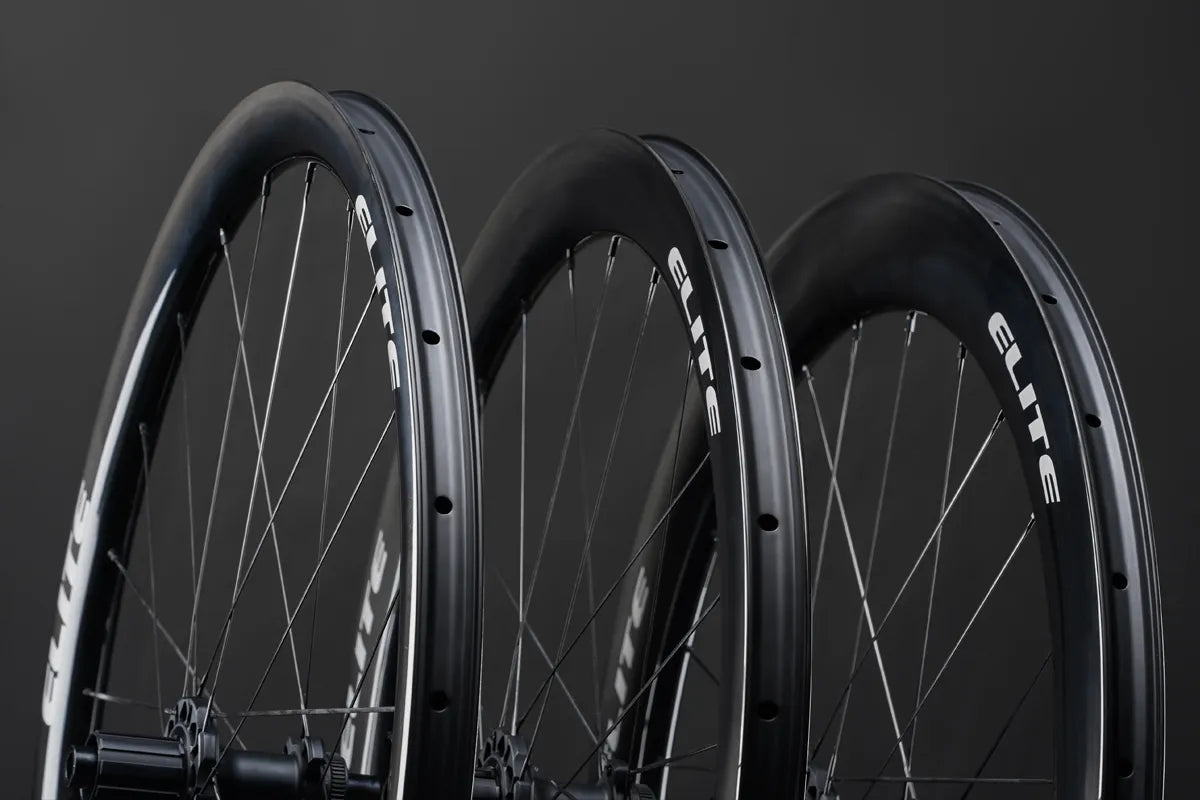

Rims

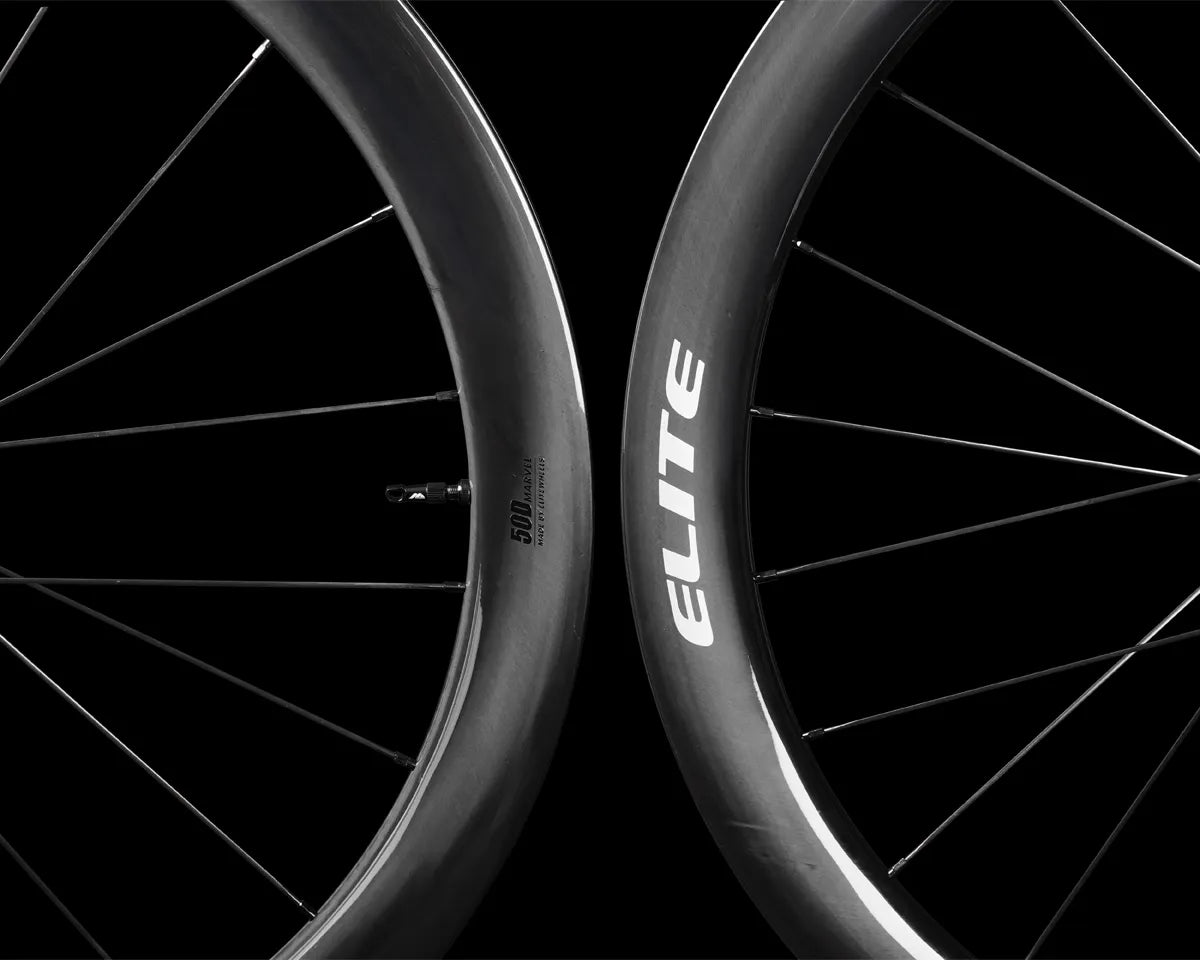

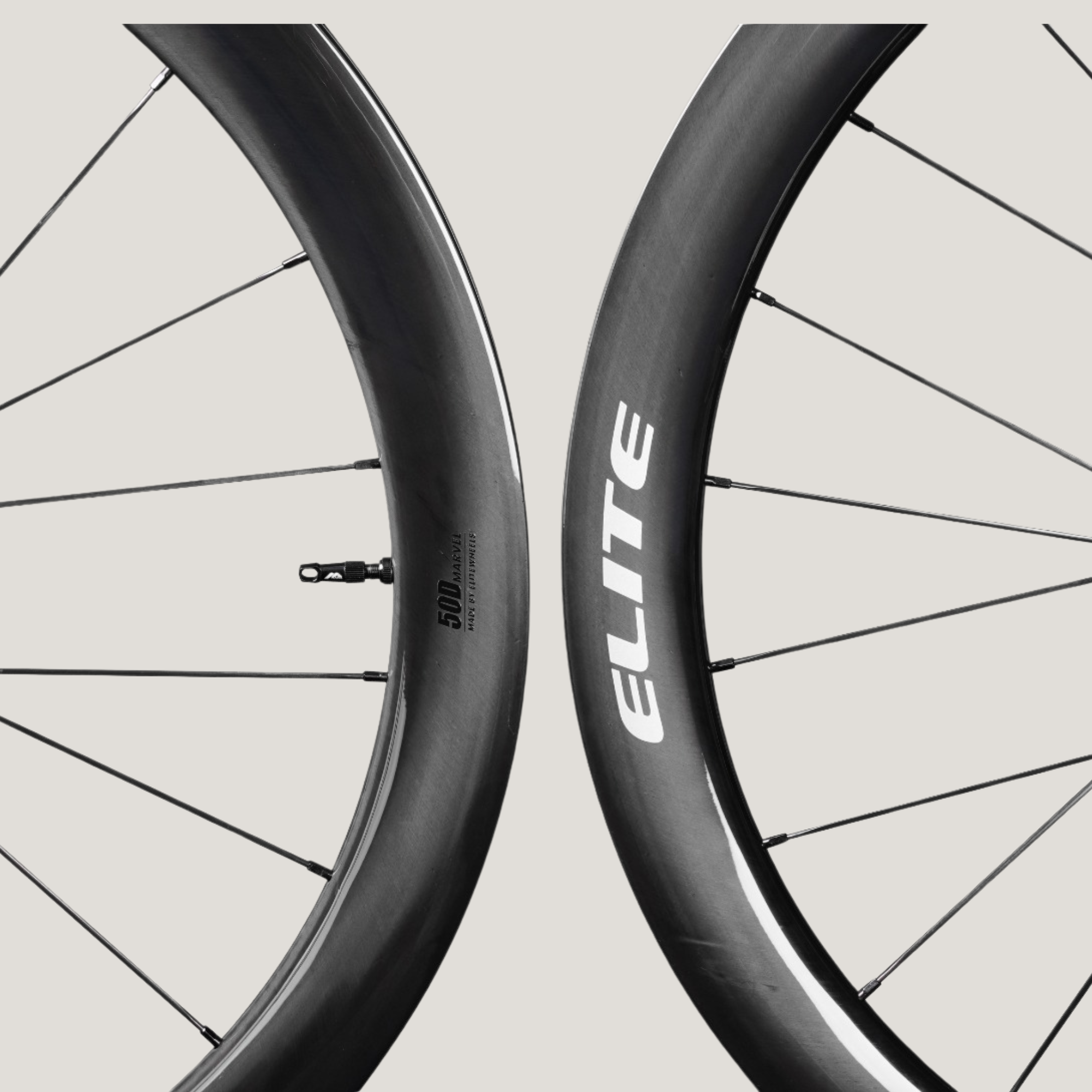

When engineering a new wheelset, the first consideration is always the rims. For the Marvel II series, we started from the ground up. After listening to valuable feedback from our riders, we decided to create rims with wider tires in mind. Marvel II’s 31mm external rim widths are aerodynamically optimized for 28c and 40c tires. To take things further, we chose inner rim widths of 23mm, leading to an ideal tire shape that maximizes grip and comfort, while minimizing rolling resistance. We design, manufacture, and test our own resin, carbon pre-preg, and rims, allowing us to ensure our rims are of the highest quality and are free of voids and wrinkles.

What makes our clincher, tubeless-ready rims unique is that we use a reduced hook design. We see the benefits and drawbacks of standard hooked as well as hookless rims and have found a way to offer the best of both worlds. Our ETRTO-compliant reduced hooks allow for the aerodynamic, durability, and optimal tire shape that hookless rims provide with the security, tire compatibility, and ability to run higher pressures that a clincher can offer.

Additionally, our rims feature in our exclusive UNI technology. It offers wider and more modern inner widths, making them compatible with wider tires for enhanced performance and versatility.

Spokes

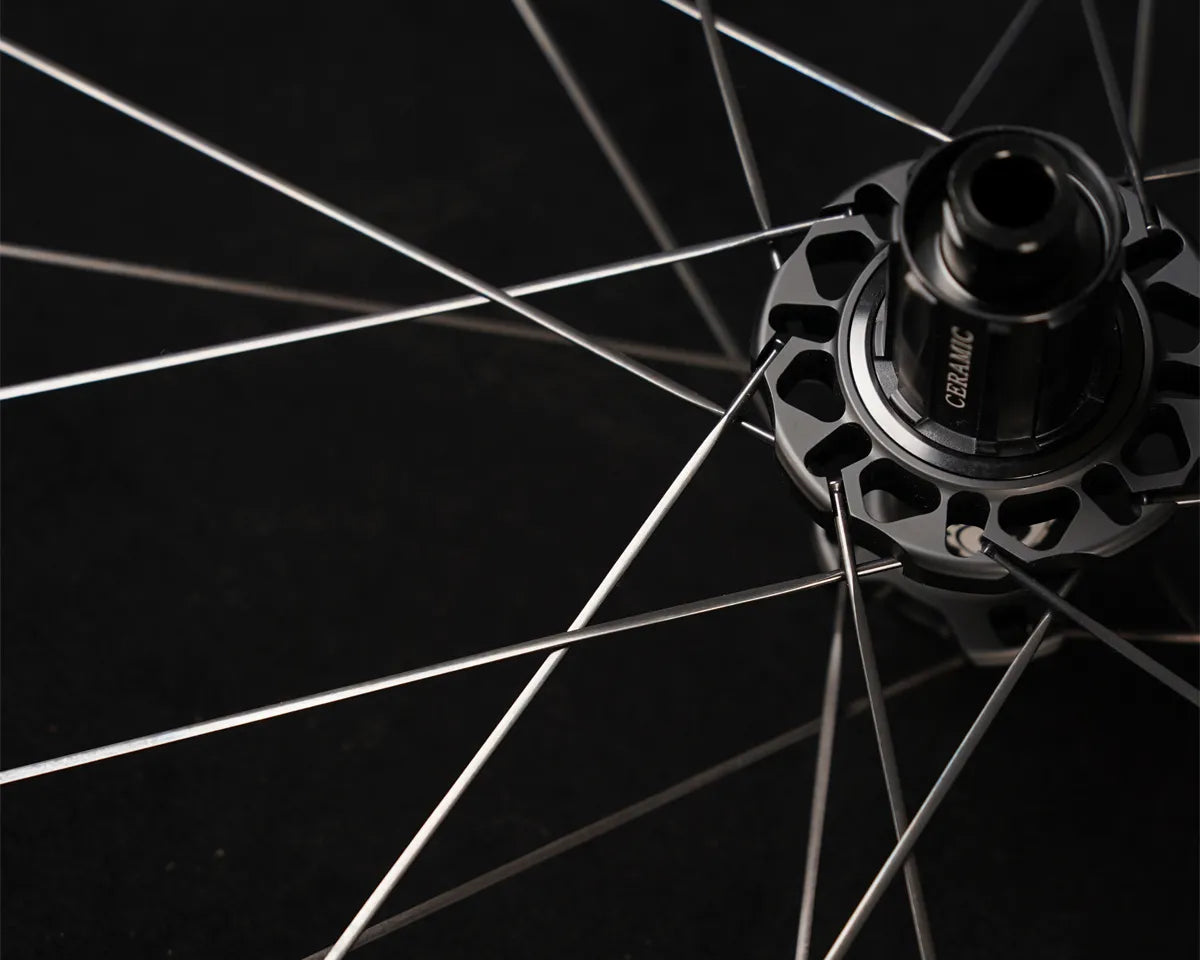

In the Marvel II wheels, we are using Alpina Ultralight Aero steel spokes, which provide a significant weight savings over the last generation of Marvel wheels. They are some of the lightest racing spokes available, while offering added benefits such as excellent durability, longevity, and improved aerodynamics.

Hubs

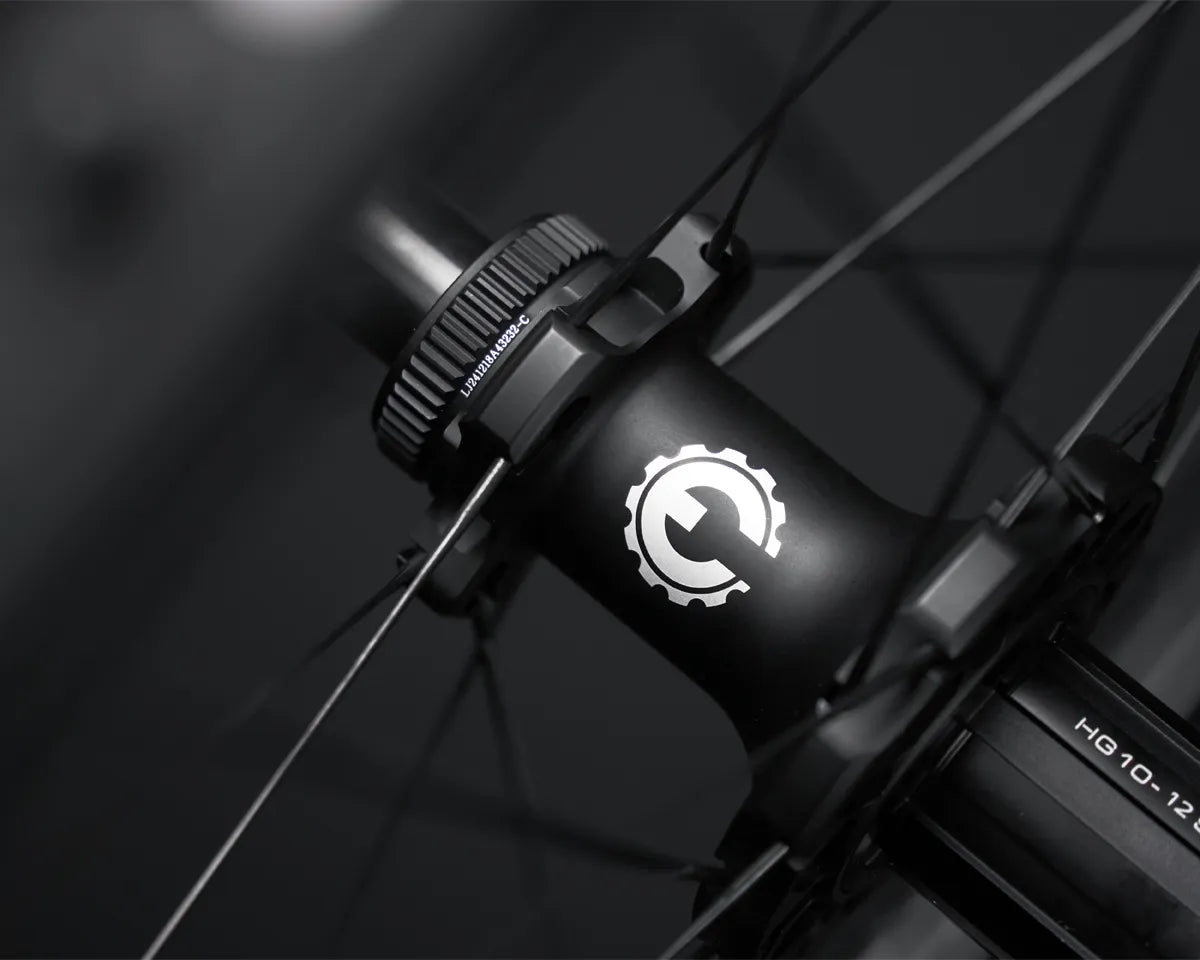

The Marvel 50D II uses our Motion hub, which features pawls-ratchet freehub mechanism, that has been tried and tested by our sponsored UCI pro cycling teams in World Tour races like the UAE Tour. It offers low rolling resistance and excellent longevity.

Just like all of our other designs, the Motion hub is made by us using 5-axis CNC machines. High-grade precision S&S ceramic bearings were chosen to improve their lifespan and reduce rolling resistance, saving you precious watts. While having high quality bearings is important, a perfect bearing seat fit is essential for optimal performance. Our CNC machines precisely machine bearing seats to 0.02mm tolerances, guaranteeing exceptionally low rolling resistance and improving longevity.

Testing

At Elitewheels, we see value in ensuring what we offer not only performs well but has excellent durability and longevity. Each wheelset undergoes more than 20+ laboratory tests at our factory including various durability, longevity, and stiffness tests. We also ensure each wheel passes the UCI Vertical Impact Test, which gives the green light for wheels to be used at the top levels of professional racing.

Besides the laboratory tests, we put a strong emphasis on aerodynamic and real world testing. Our engineers run CFD (Computational Fluid Dyamics) programs for hundreds of hours during the design phase to aerodynamically optimize wheelsets before even producing the first prototype. After our engineering team is satisfied and the prototype is ready, we conduct wind tunnel testing to verify the results as well as real world testing by our staff and our sponsored UCI pro cycling teams, getting as much feedback as possible. The pro riders offer a unique perspective due to their hundreds of thousands of kilometers of riding experience with a large number of wheelsets.
