Elitewheels Drive 65V Carbon Wheels

Decals
Rs. 115,000.00
Rs. 115,000.00
Rs. 135,000.00
Tax included. Shipping calculated at checkout.
Out of stock

EL-DR-65V-BK

View Full Details

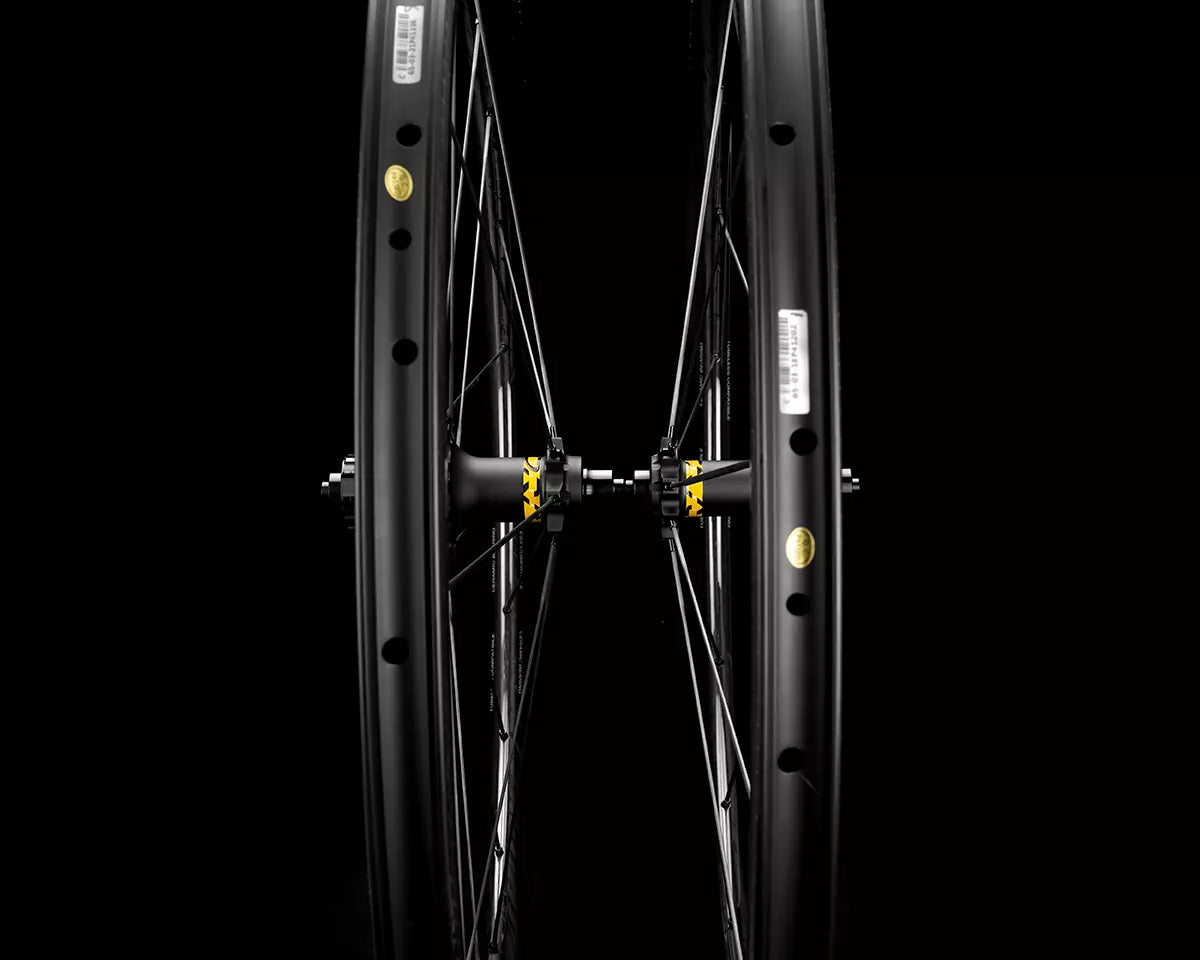

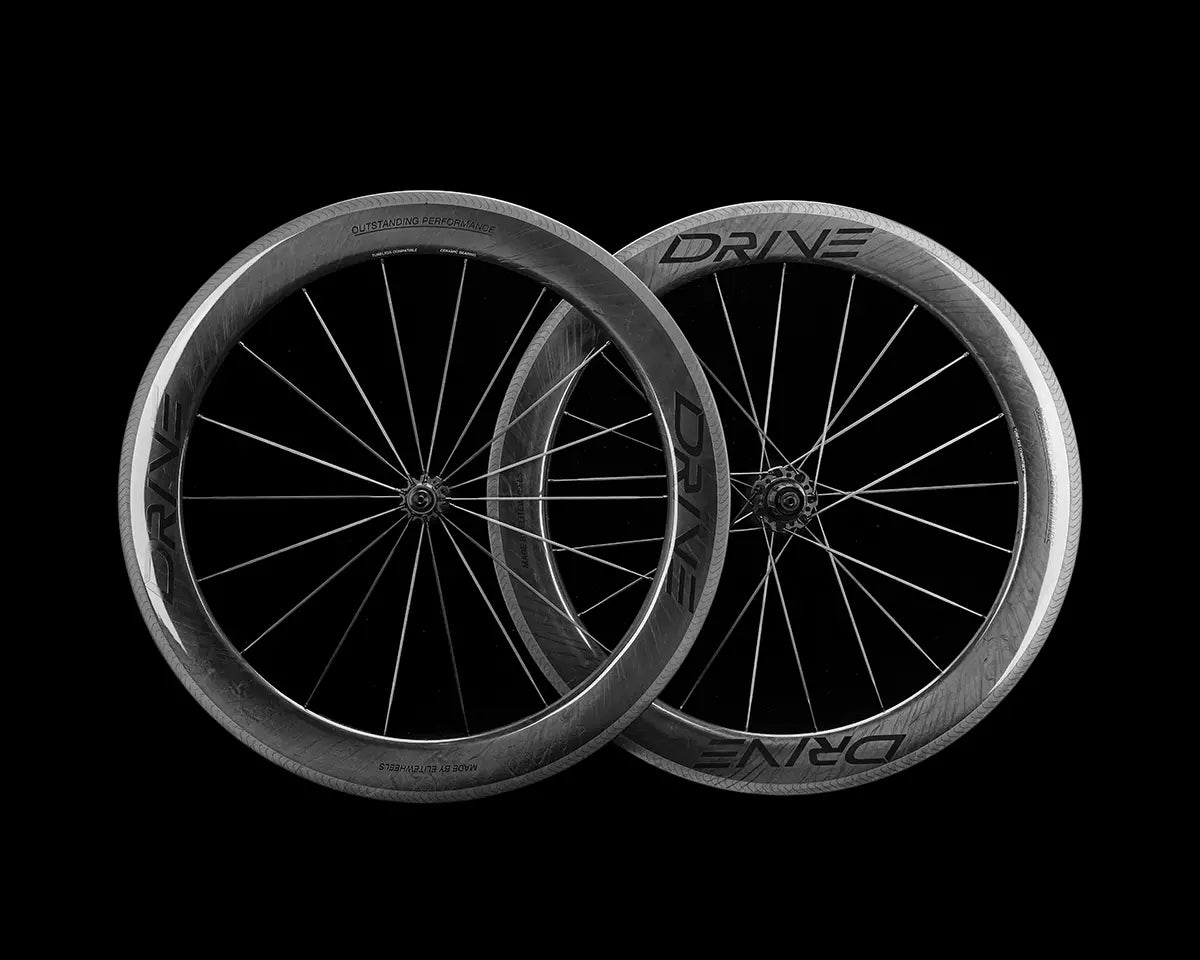

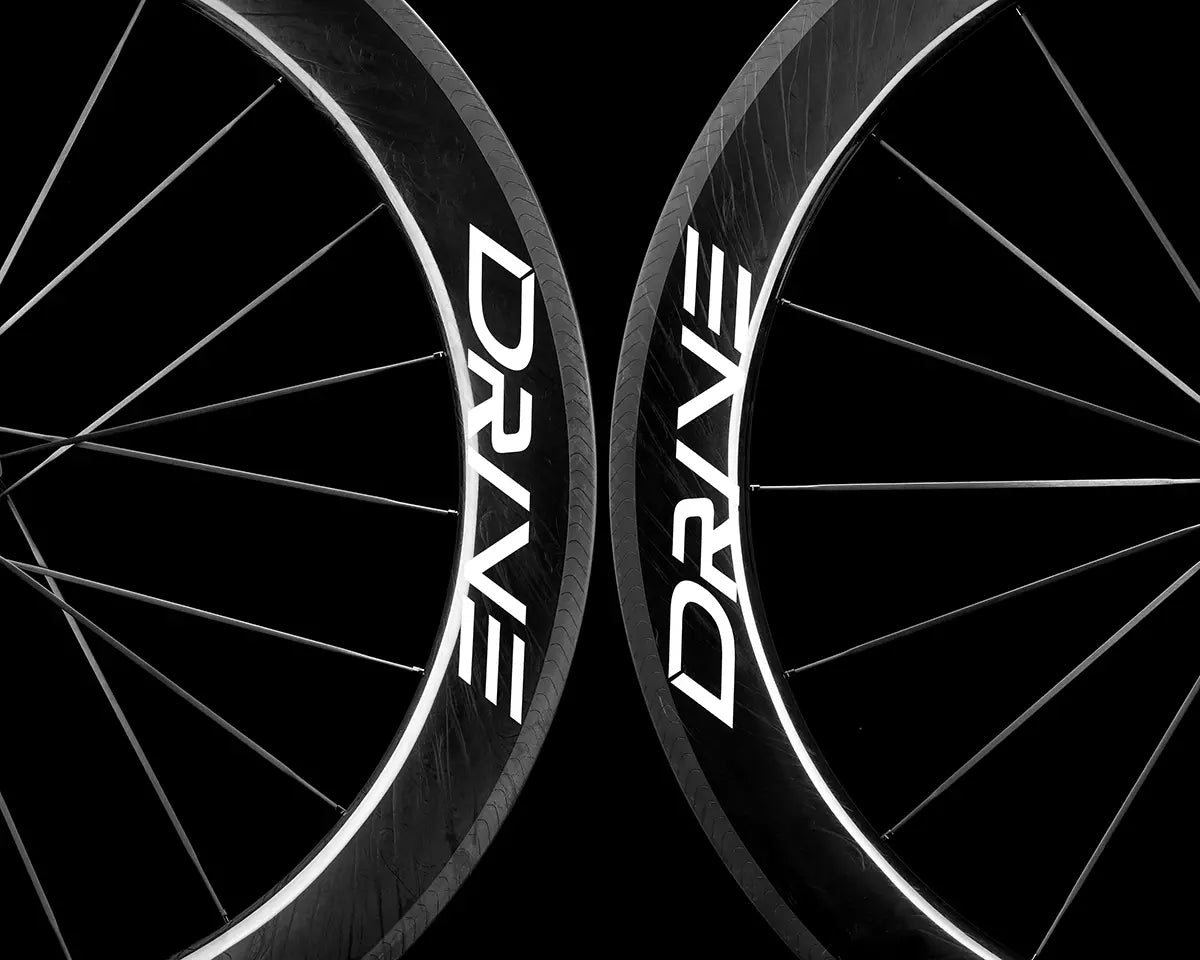

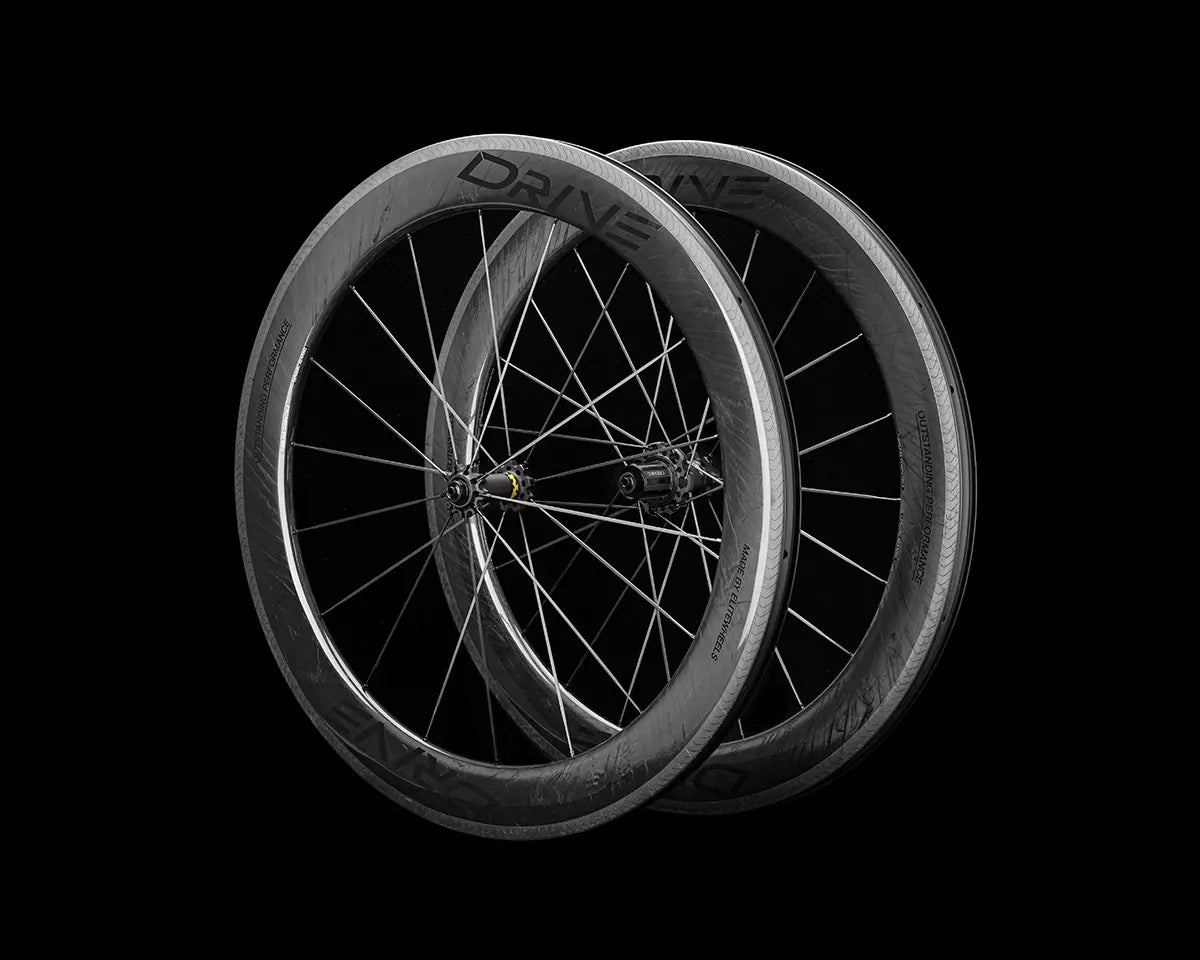

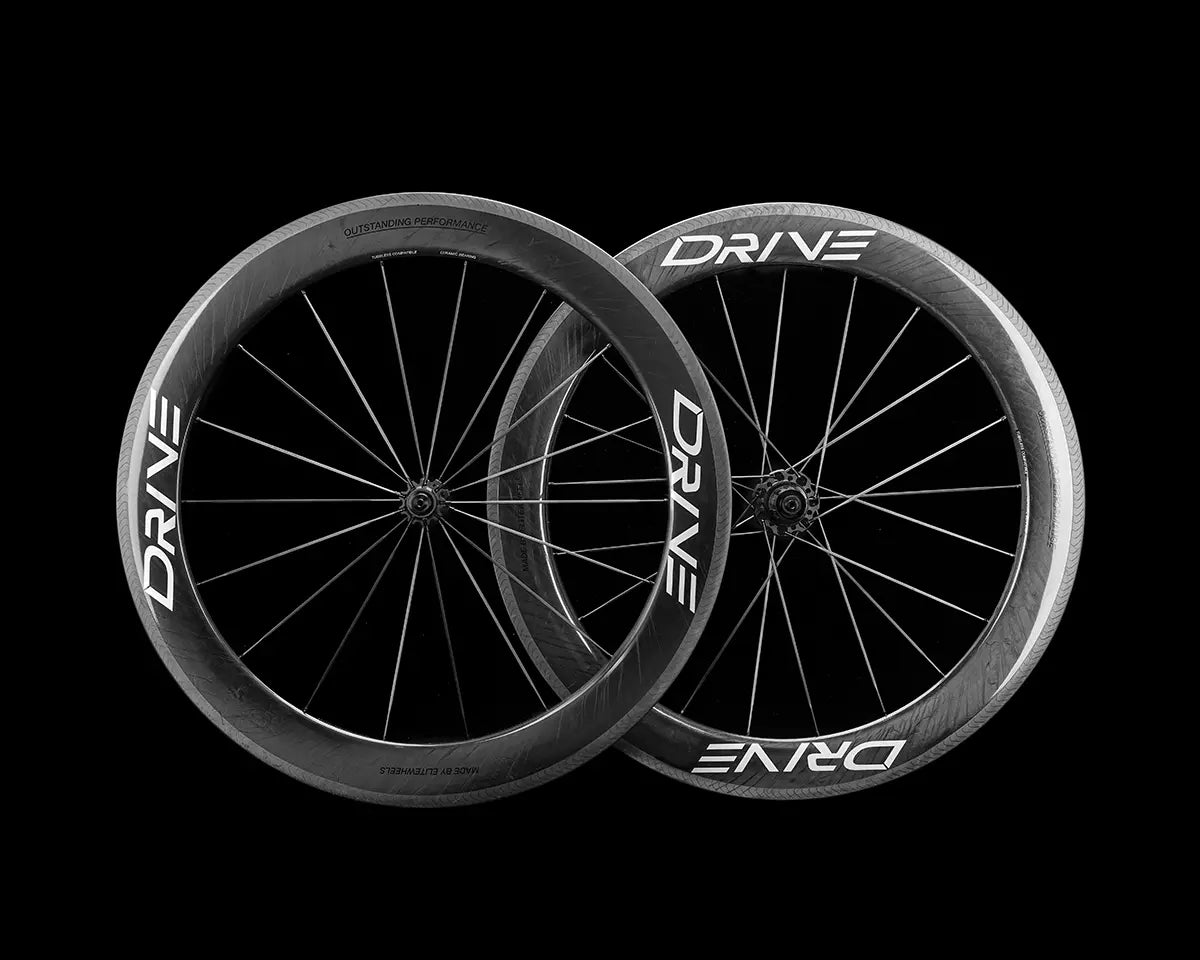

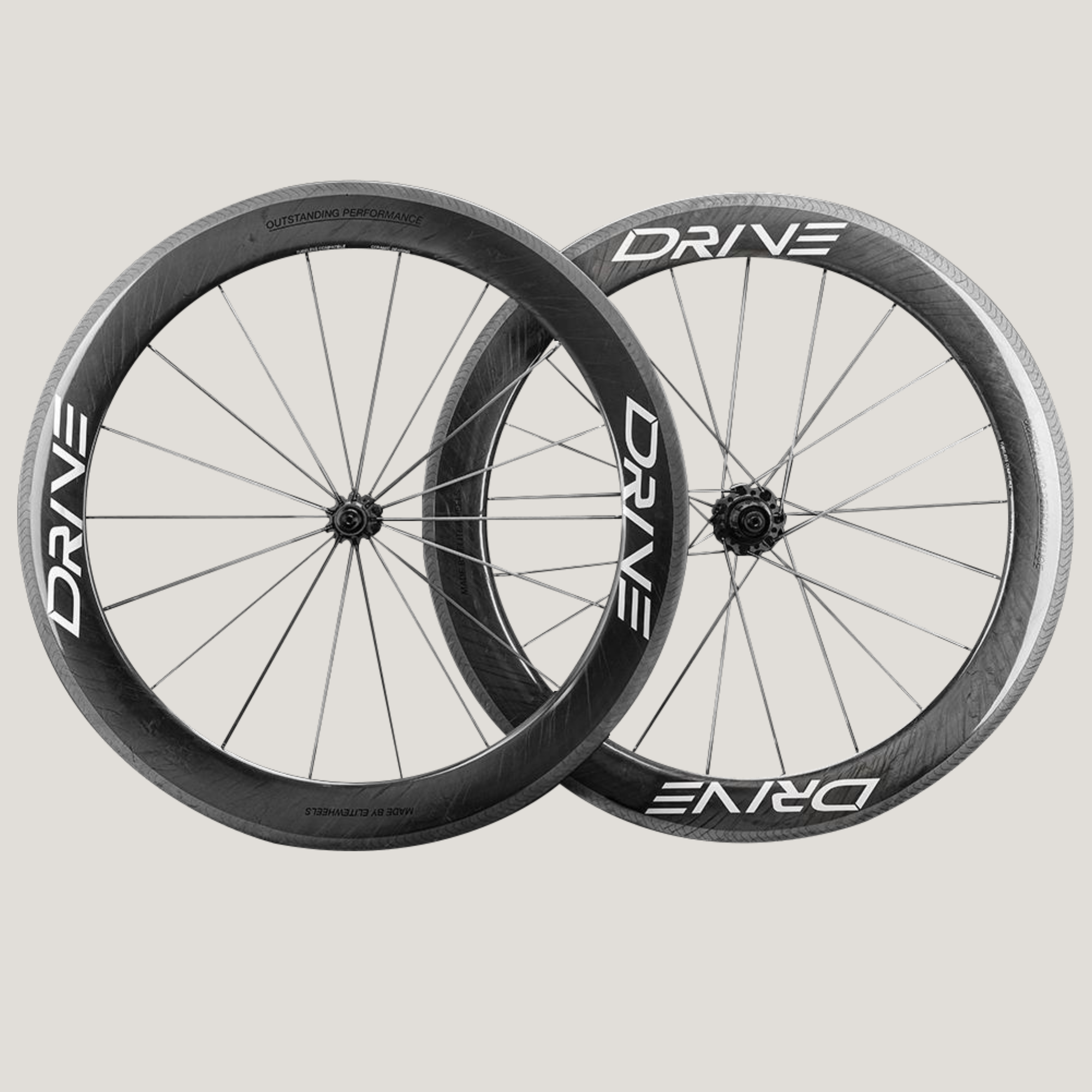

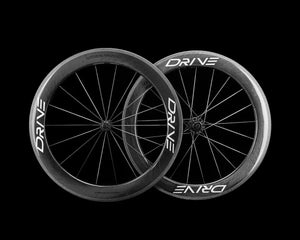

Elitewheels Drive 65V Carbon Wheels

Specification

Rim
Wheel Size 700c
Tire Compatibility Clincher/ Tubeless
Bead Type Hooked
Rim Depth 65mm
Inner Width 21mm
Outer Width 28mm

Hub
Front Hub Spacing QR x 100mm
Rear Hub Spacing QR x 130mm
Bearing S&S Ceramic
Brake Compatibility Rim Brake
Freehub Type 4 Pawls
Freehub Compatibility Shimano / SRAM XDR / Campagnolo

Spoke
Front Spoke Pattern Radial
Rear Spoke Pattern 2X/Radial (2:1)
Spoke Count 18F/21R
Spoke Type Carbon Spoke (3.2mm)
Nipple Type Alloy Secure Lock
Spare Spokes 3PCS

Other
Rim Finish Glossy Marbling Black
Extras Pre-installed Rim Tape & Tubeless Valves; Quick Releases; Brake Pads(2 Sets)
Weight (Pair) 1500g±30g (without tubeless valves and rim tape)
Rider Weight Limit 285lbs/130kg
Recommended Tire Sizes 700 x 25-33C
Certification UCI Approved, CE Certified

Find The Right Wheelset For You Find The Right Wheelset For You

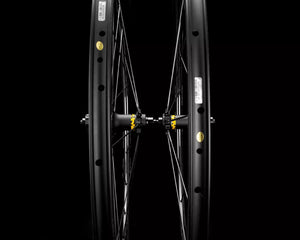

Rims

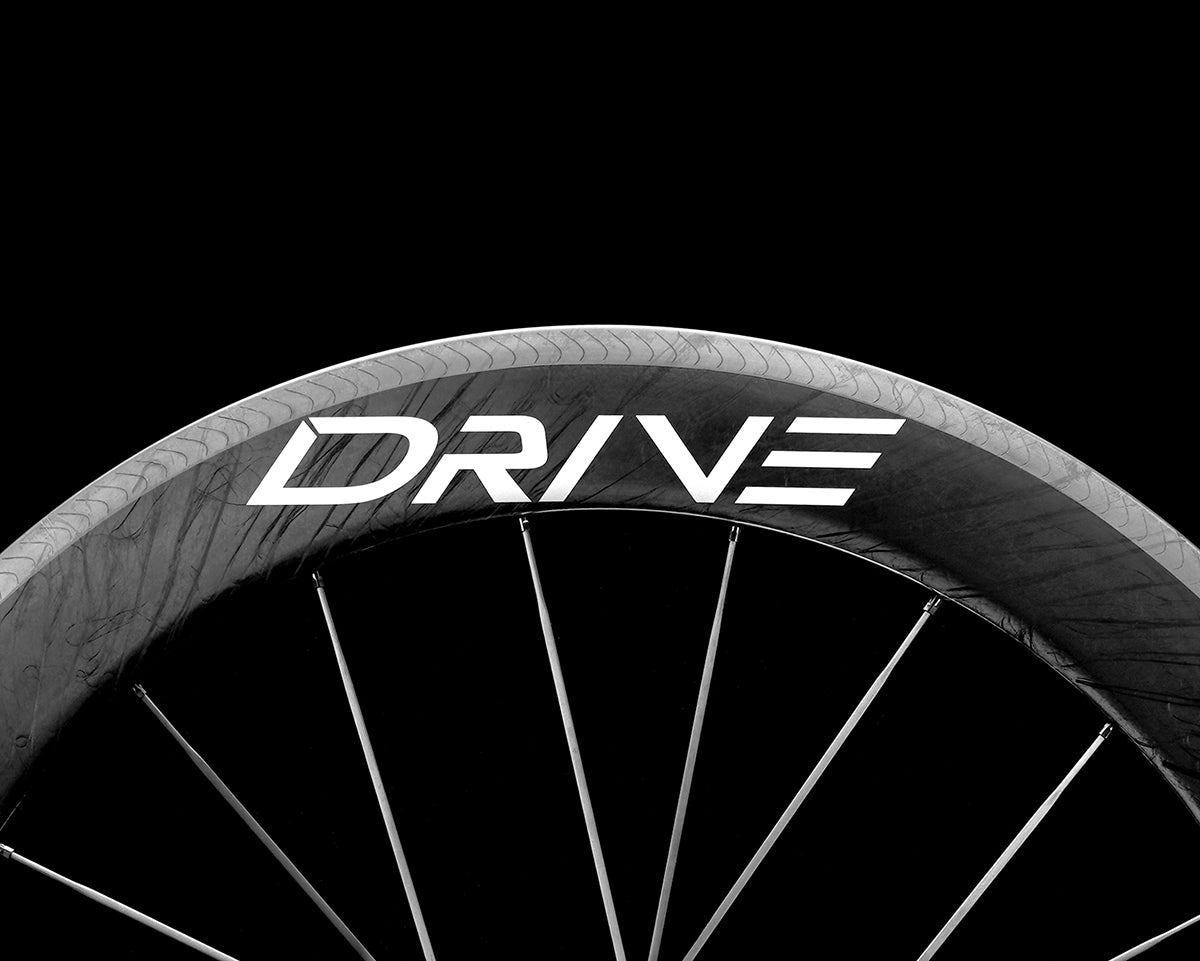

At Elitewheels, we design our Drive wheels to match the needs of professional riders. In order to deliver the best performance, we incorporate our own UNI carbon fiber, a specific ratio of T800 and T1000 carbon fiber , making rims not only strong, but also exceptionally light and stiff. The U/V-shaped rim profile of the Drive 65V was chosen to make the rim both aero as well as stable in windy conditions. The Drive 65V’s 21mm inner rim allows for wider tires to be run, allowing for more comfort and grip.

Spokes

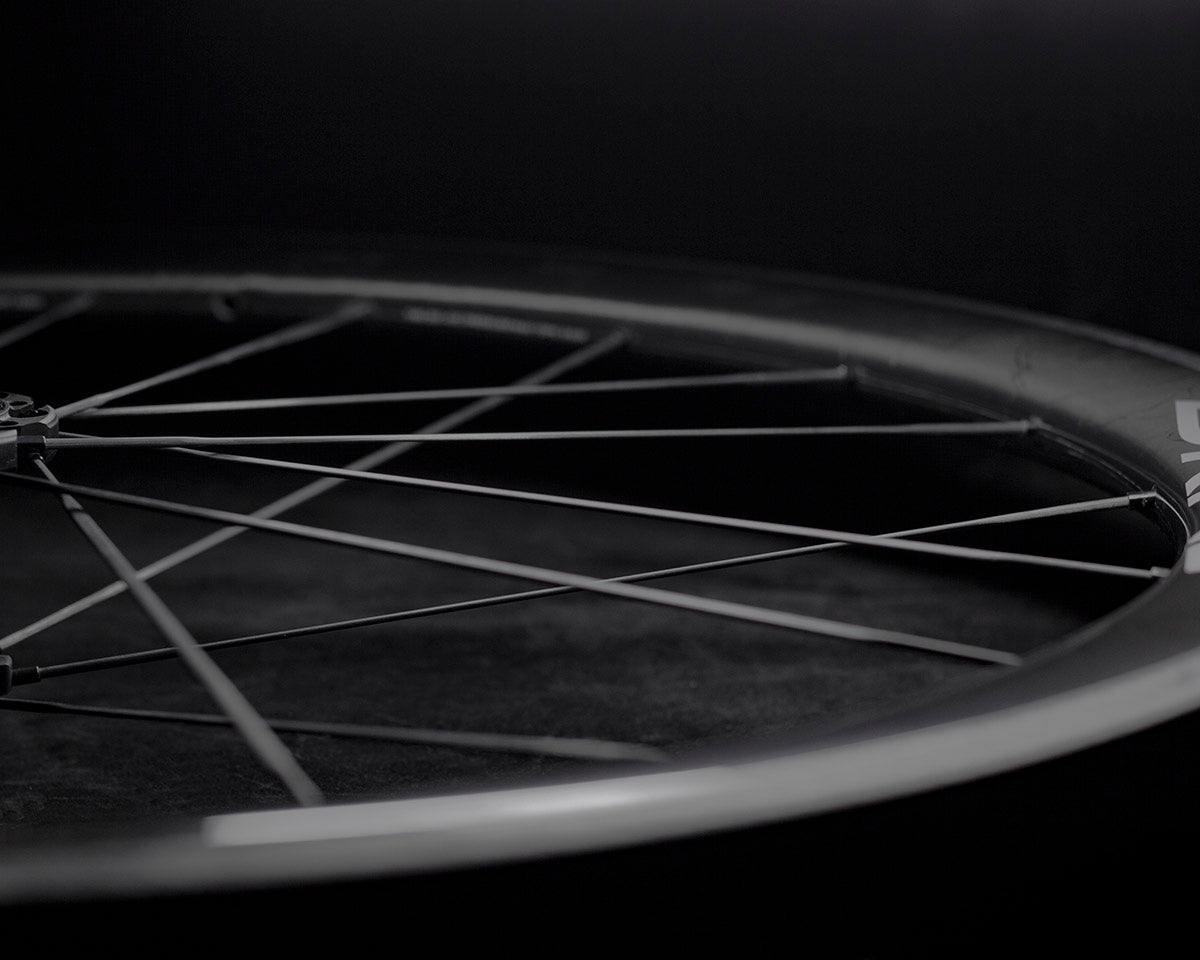

What separates the Drive 65V from most other wheels is its use of high-modulus carbon spokes. They are 3.2mm wide aero bladed spokes, offering 7% more lateral stiffness as compared to equivalent steel spokes. The carbon spokes are mechanically secured, giving the benefit of being able to be trued and maintained just like regular steel spokes. Anti-loosening technology is also incorporated into the spoke nipples. The threads built into the nipples give them a double-locking effect.

Hubs

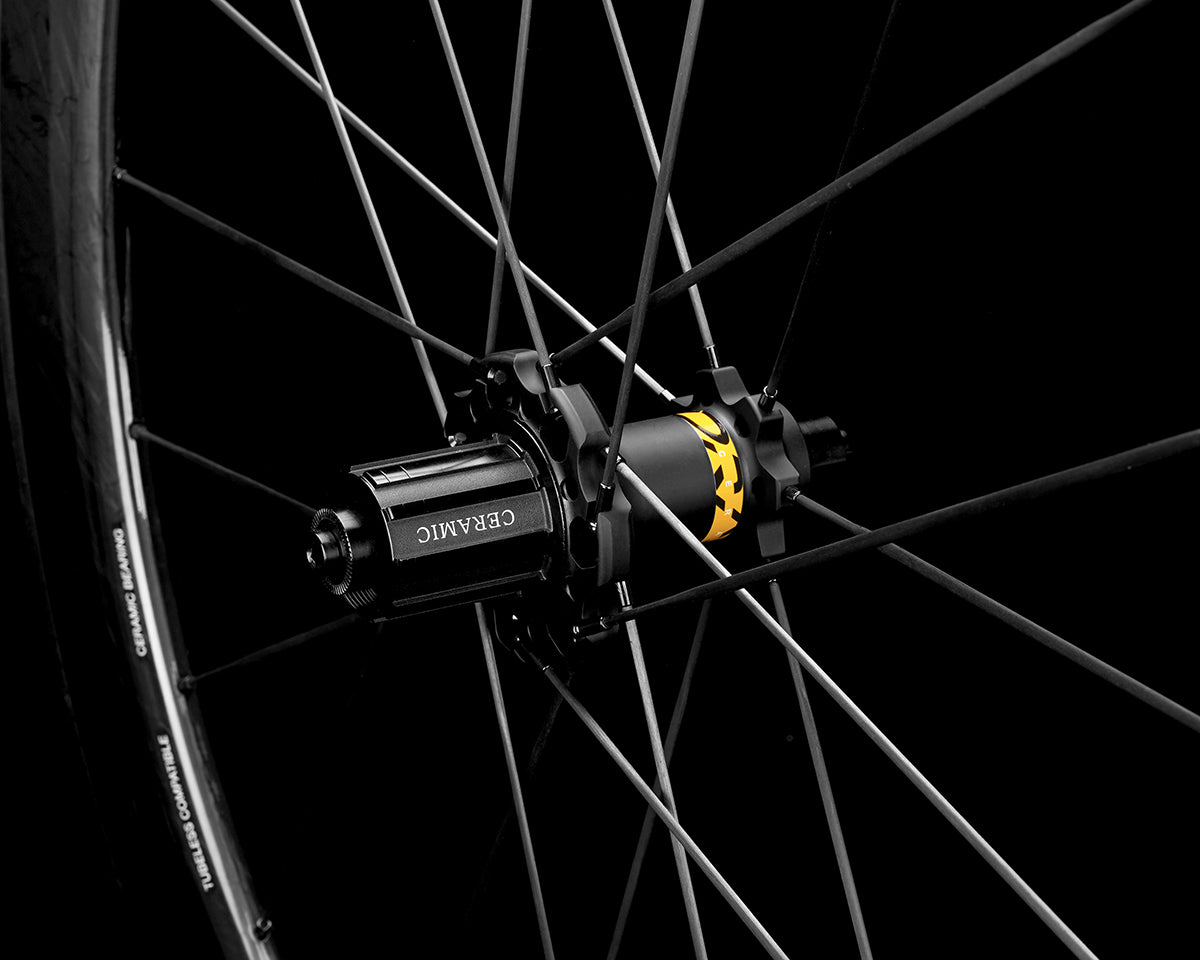

To get the most out of carbon fiber spokes, we specifically designed the hub with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own high precision hubs with Fanuc CNC machines, which can machine to tolerances of just 0.02mm. This not only allows for lower rolling resistance but also increases bearing longevity.

Bearings

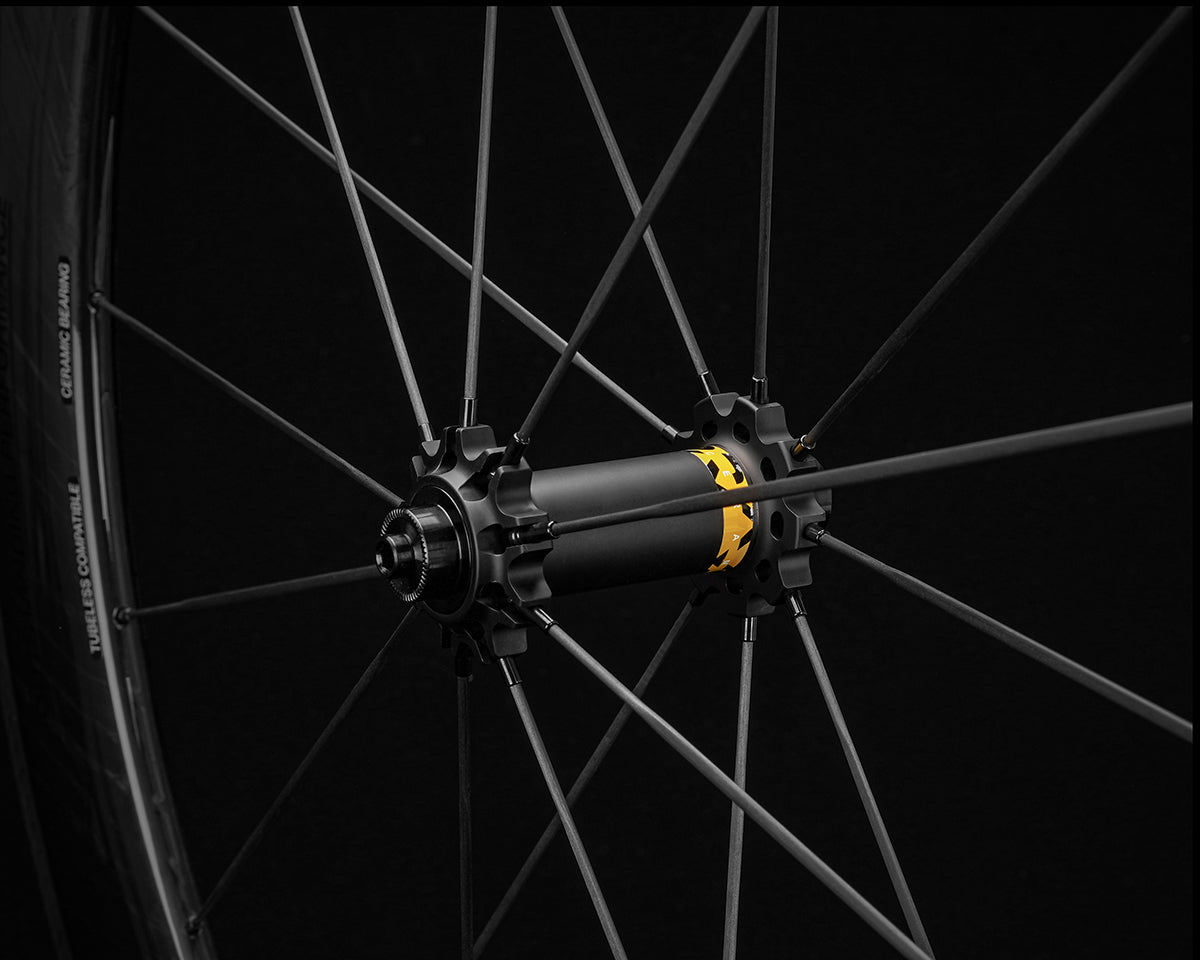

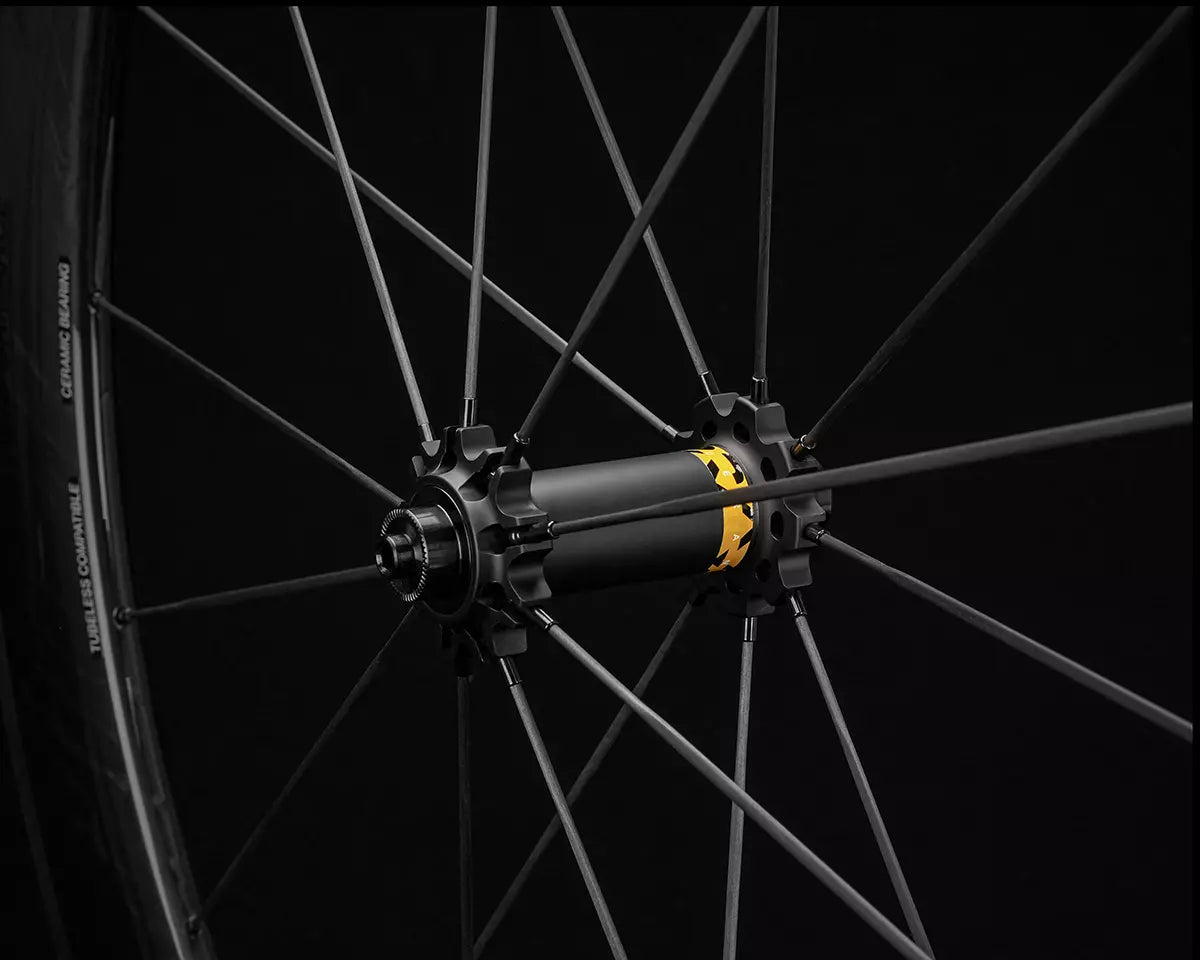

The 65V’s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better rigidity. The use of mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.

More about Ceramic Bearings

Brake Surface

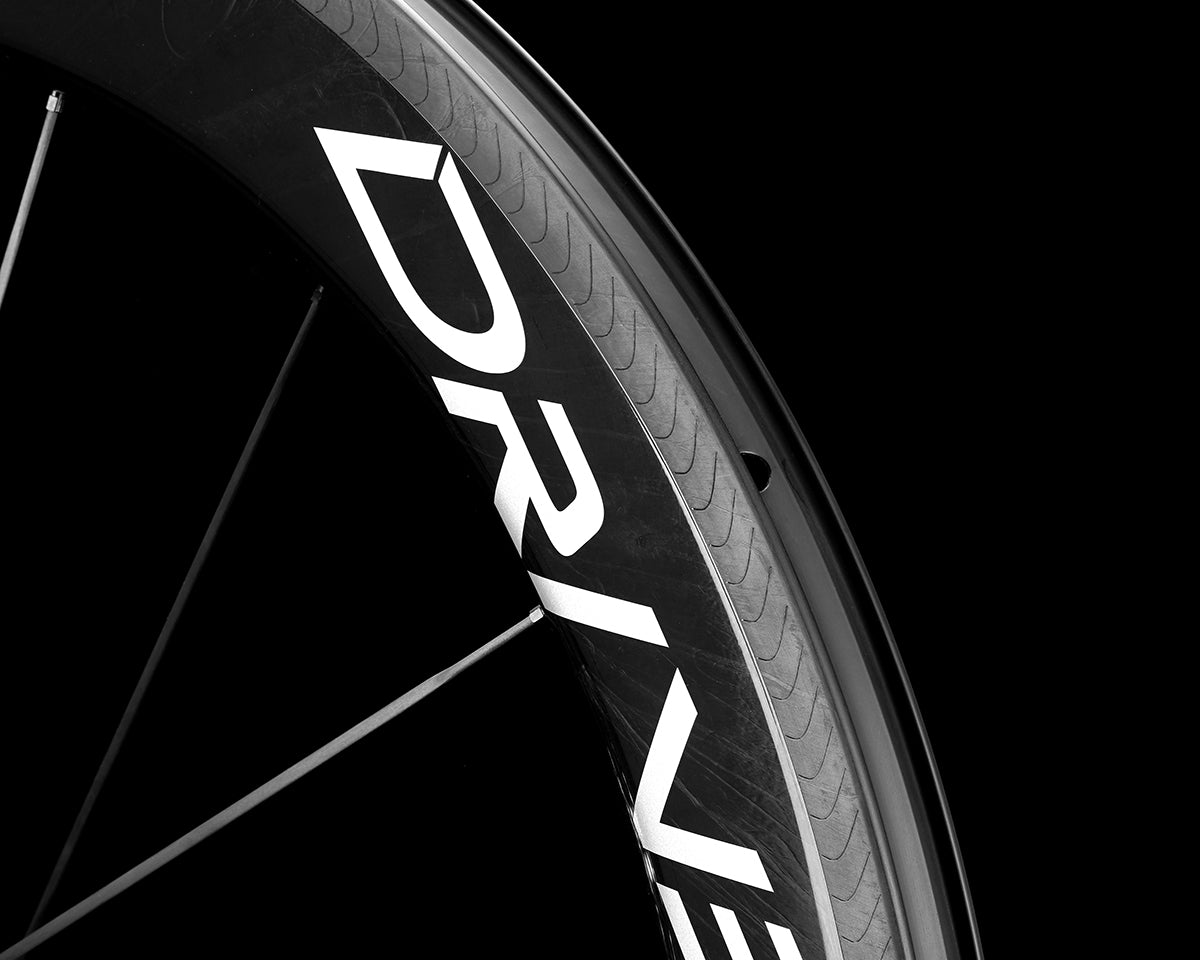

Some descriptionThe Drive 65V uses a blend of 270 ℃, high-temperature resin, developed by Elitewheels, and Japanese Toray T800 carbon fiber for the brake surface. This heat resistance ensures excellent braking performance even on long, steep descents. The brake track also features laser-etched grooves to clear water away, giving safe, consistent braking in wet conditions.
