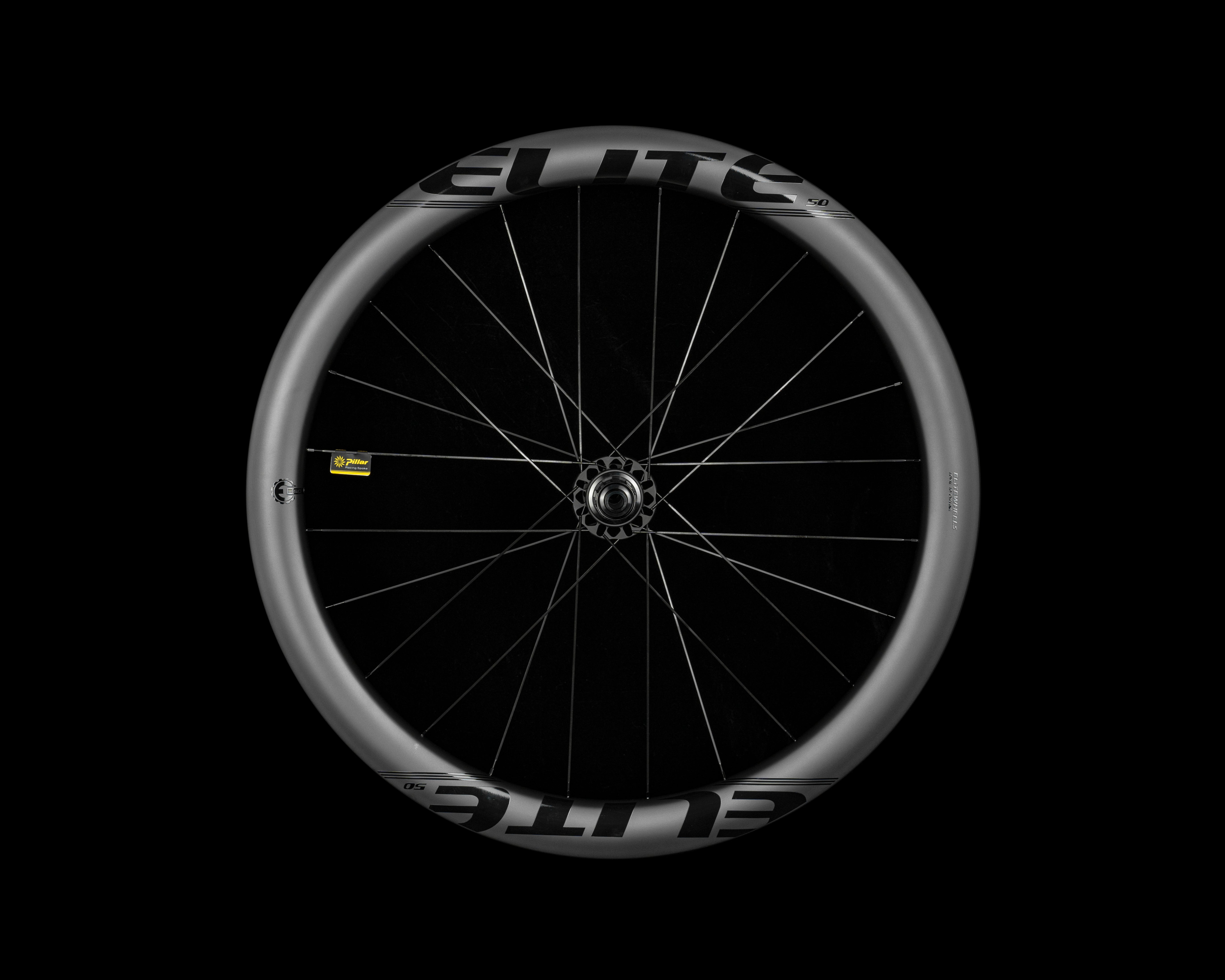

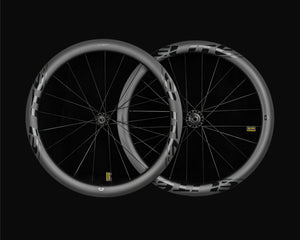

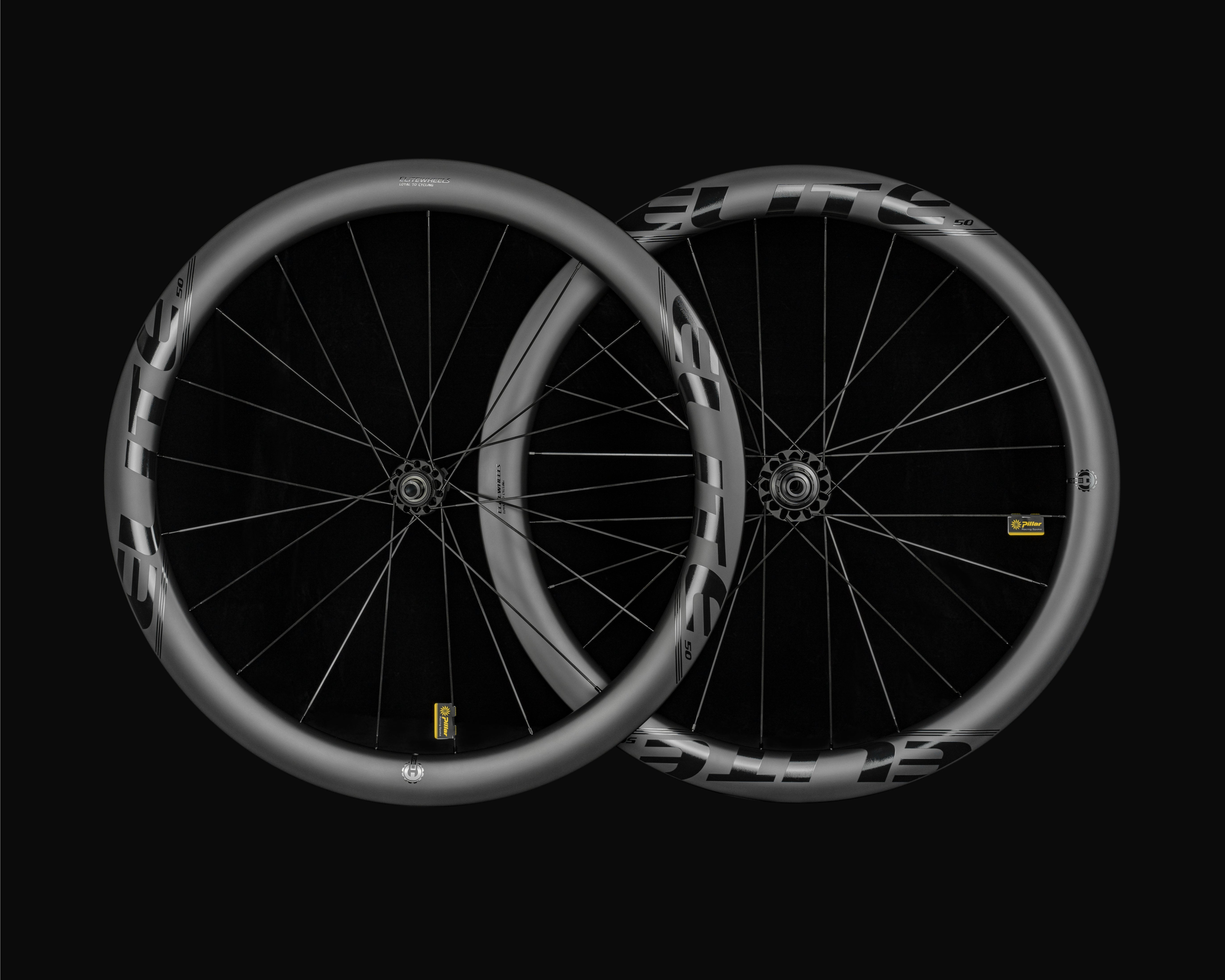

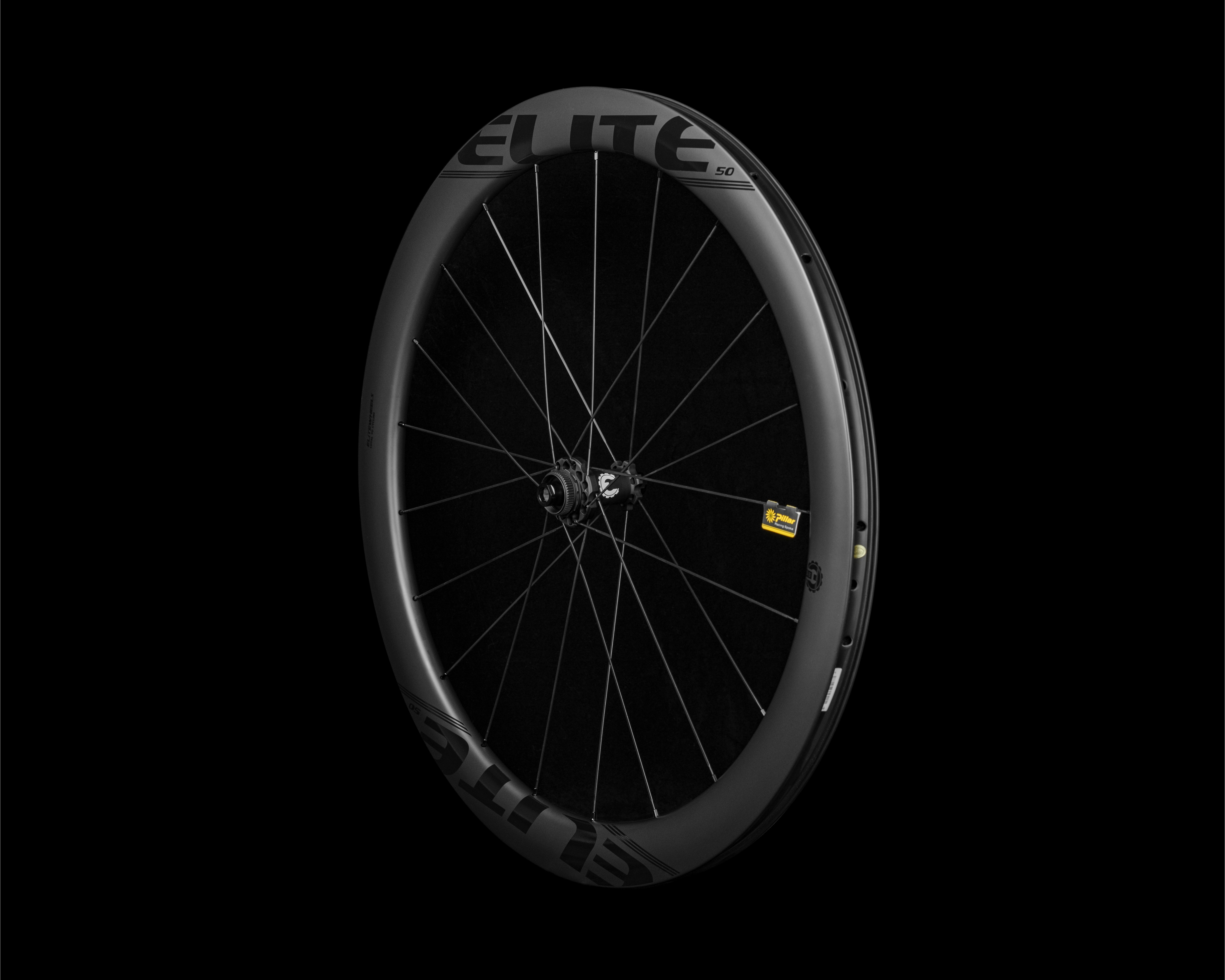

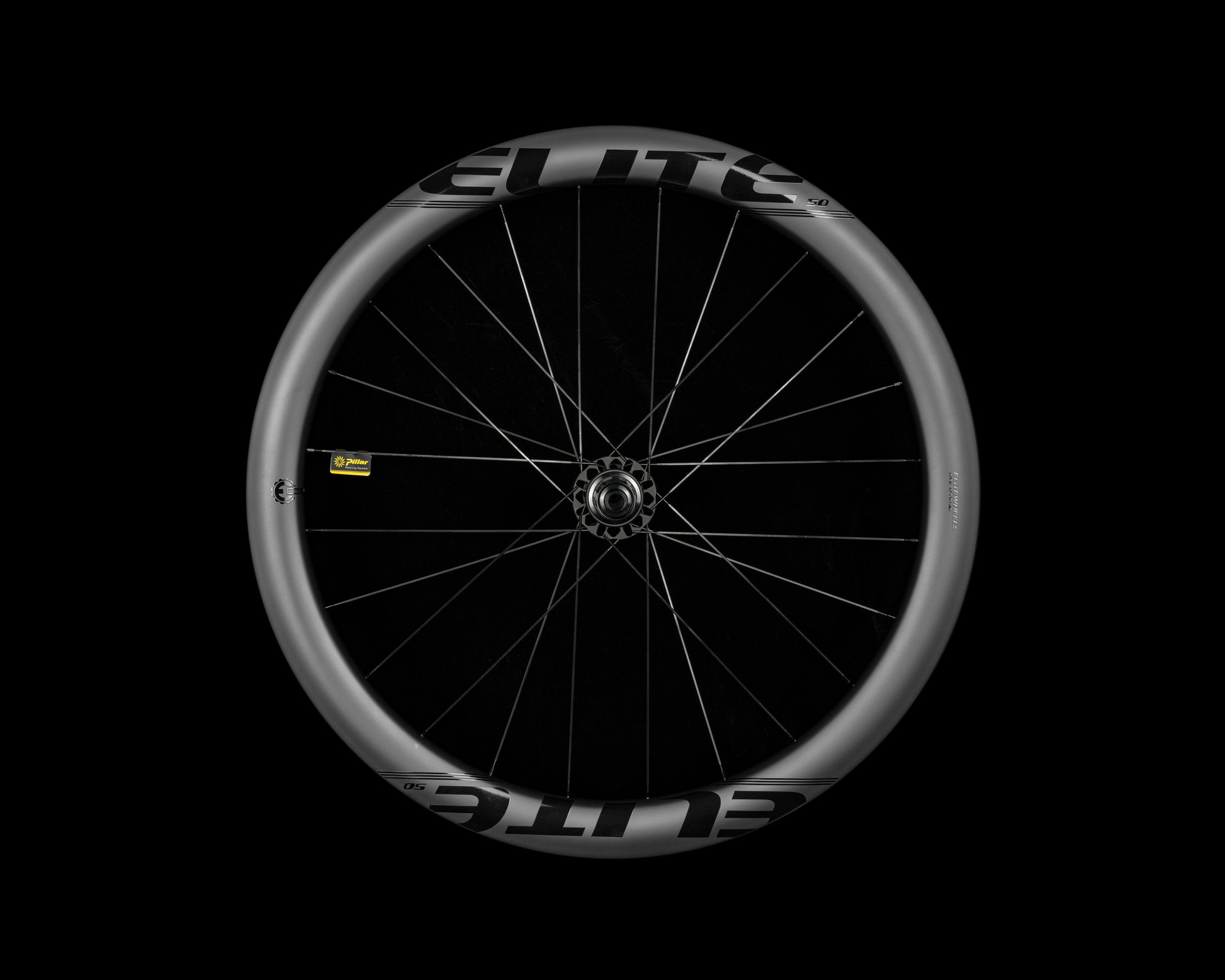

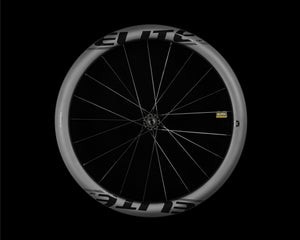

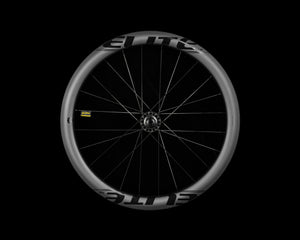

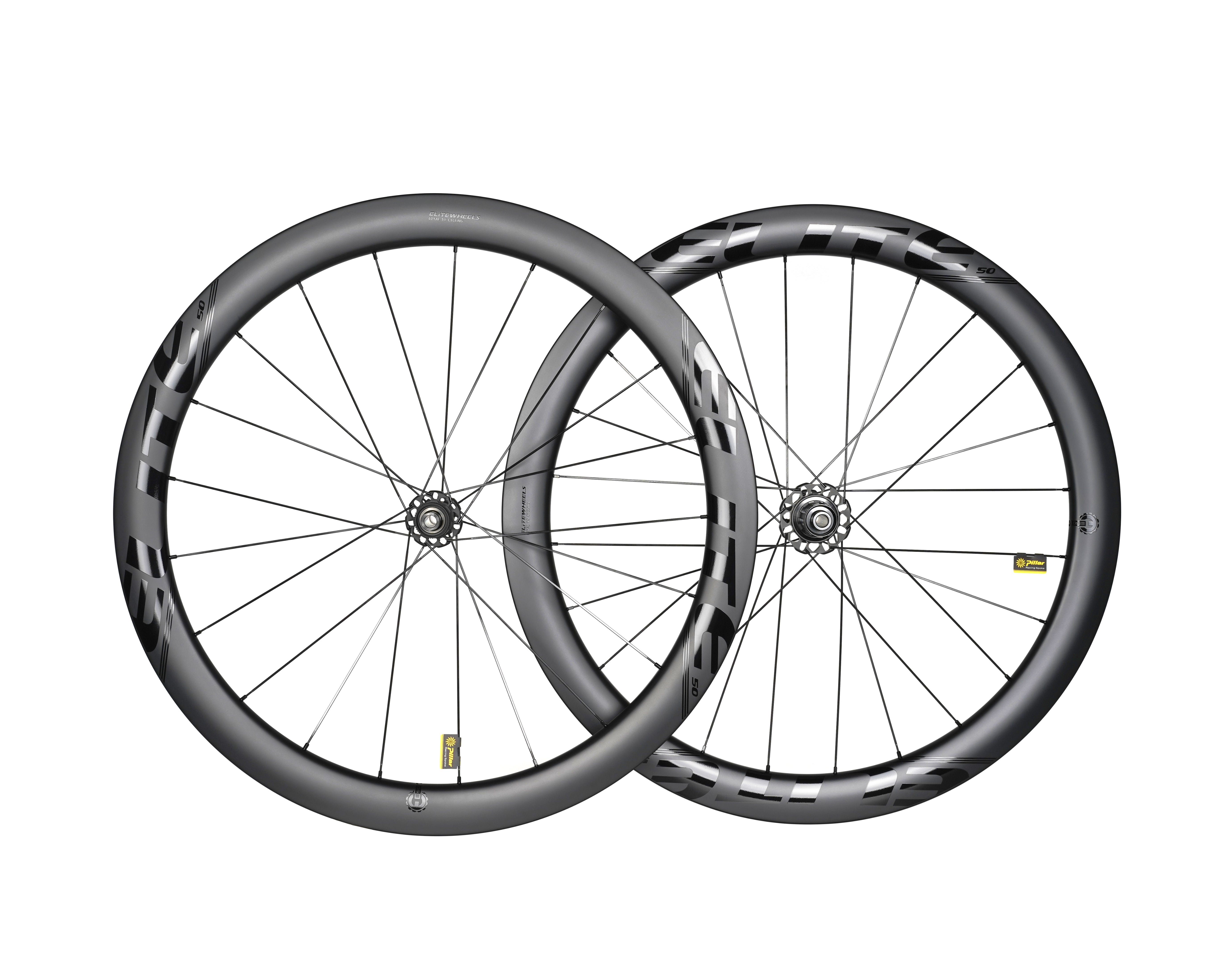

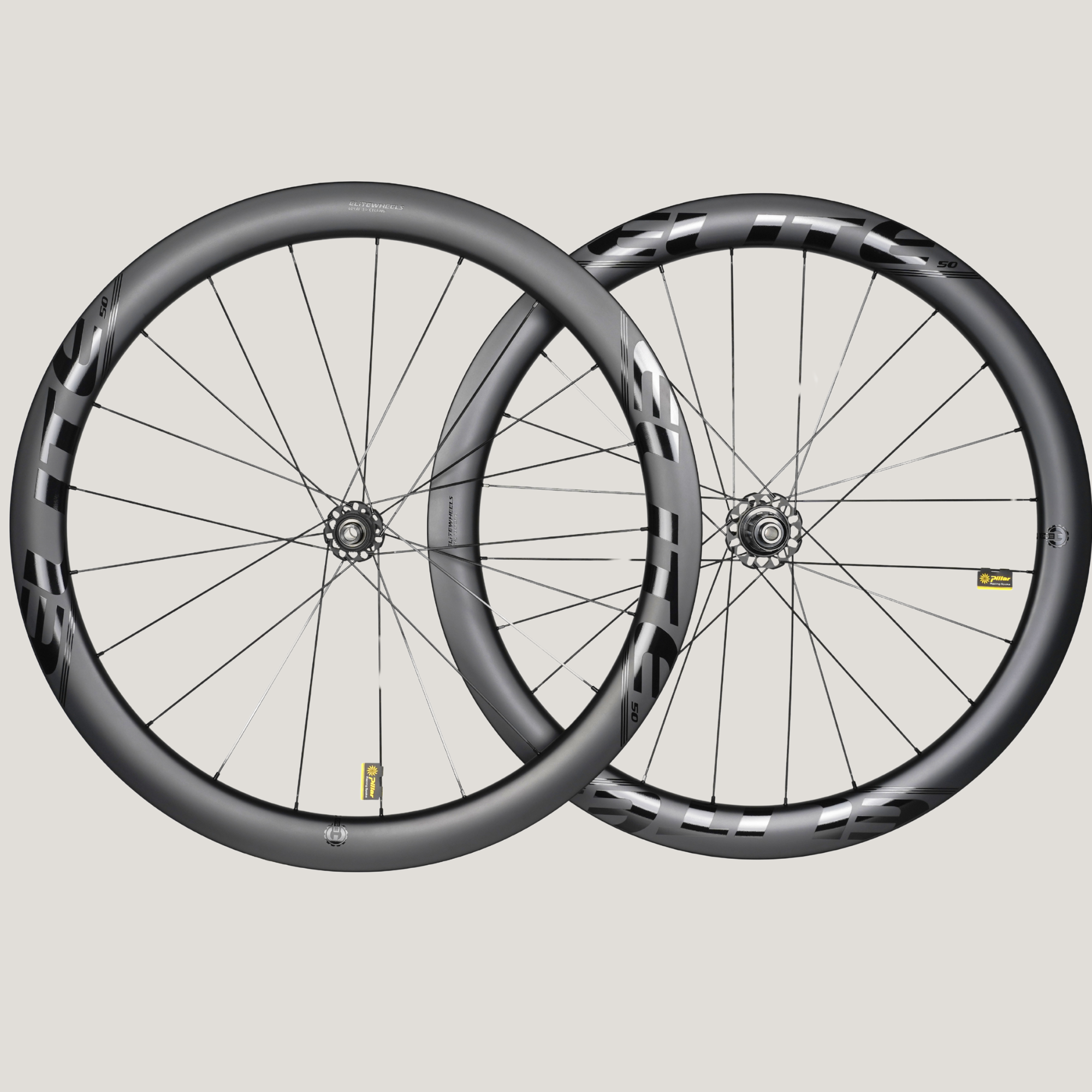

Elitewheels Marvel 50D Carbon Wheels

Decals
Rs. 54,000.00
Rs. 54,000.00
Rs. 64,999.00
Tax included. Shipping calculated at checkout.
Out of stock

EL-ML-50D-BK

View Full Details
Elitewheels Marvel 50D Carbon Wheels

Specification

Rim
Series Marvel
Wheel Size 700c
Tire Compatibility Clincher/Tubeless
Rim Depth 50mm
Inner Width 17mm
Outer Width 28mm

Hub
Front Hub Spacing 12x100mm
Rear Hub Spacing 12x142mm
Bearing S&S Ceramic
Brake Compatibility Disc (Center Lock)
Freehub Type 4 Pawls
Freehub Compatibility Shimano / SRAM XDR

Spoke
Front Spoke Pattern 2X/Radial (2:1)
Rear Spoke Pattern 2X/1X (2:1)
Spoke Count 21F/24R
Spoke Type Pillar PA 1423
Nipple Type Sapim Secure Lock

Other
Weight(pair) 1692g±30g (without tubeless valves and rim tape)
Extras Rim Tape(Installed), Tubeless Valves(Installed)
Rider Weight Limit 285lbs/130kg
Recommended Tire Sizes 700 x 23-33C
Max Tire Pressure 120psi
Certification CE Certified

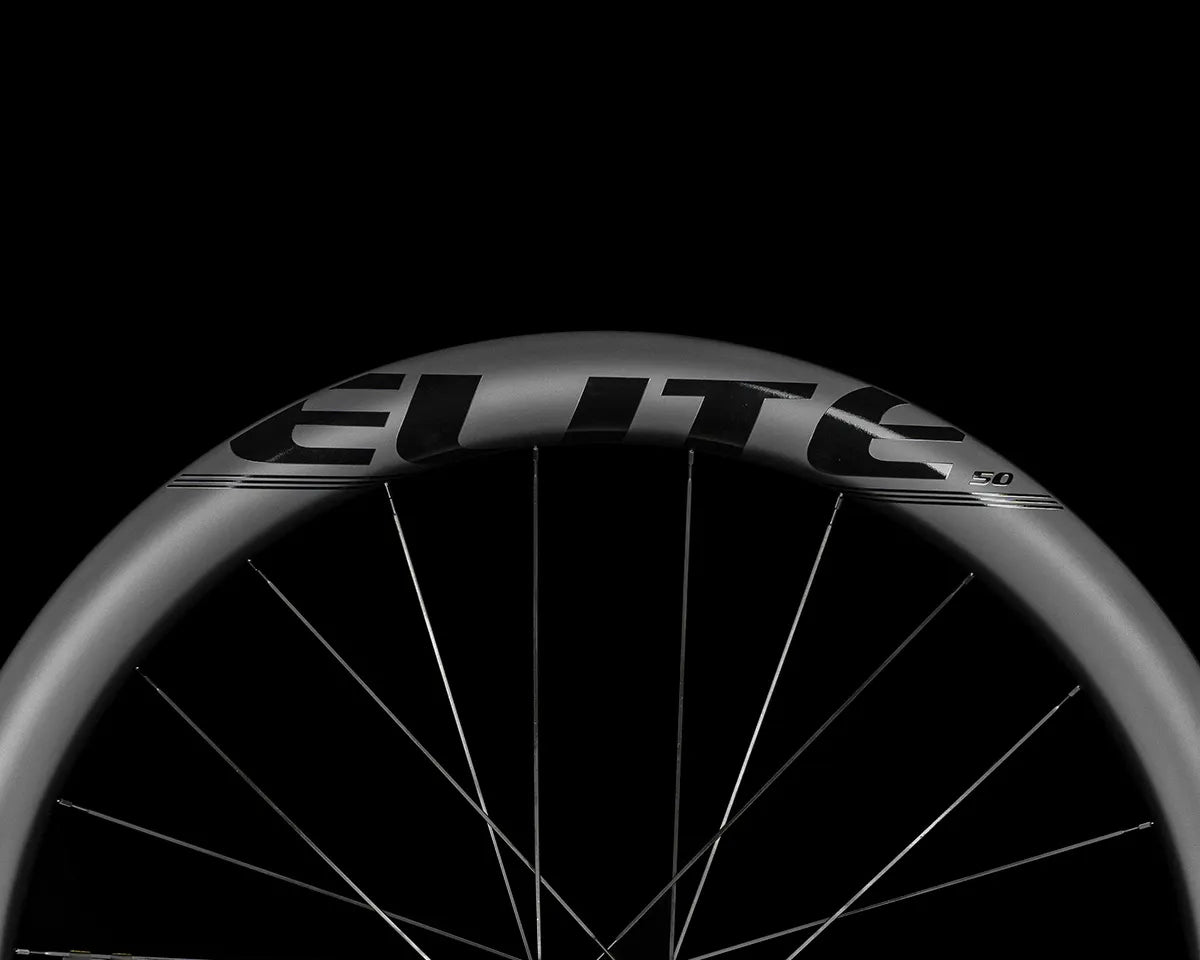

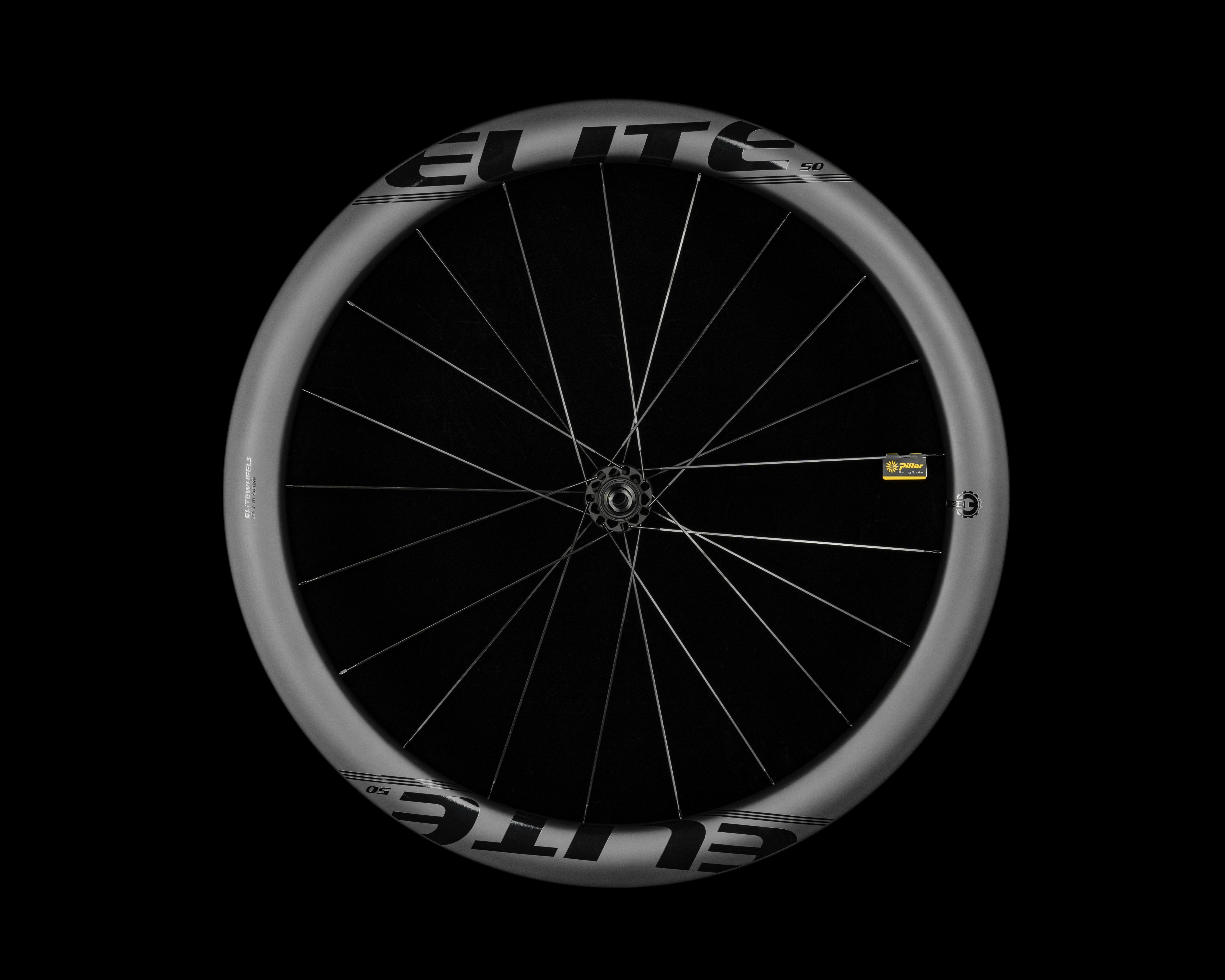

Rims

At Elitewheels, we design our Marvel wheels to match the needs of recreational cyclists. As opposed to alloy rims found on most road bikes, Marvel wheels are stronger, stiffer, much more more aerodynamic and significantly lighter. In fact, wheels play the biggest role in aerodynamics on a bicycle. As opposed to reducing weight elsewhere, a lighter rim saves rotational weight, making for a more agile feel and faster accelerations.

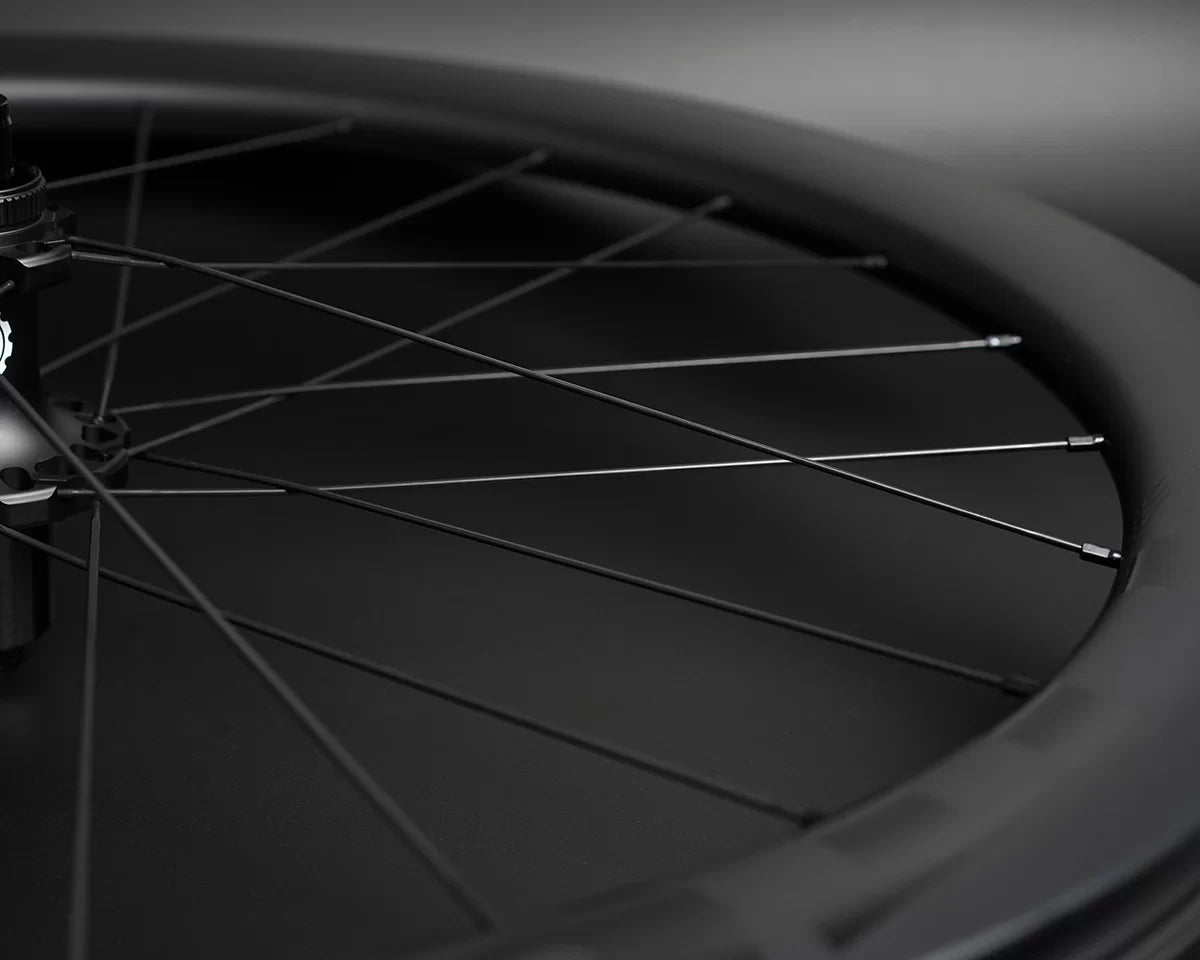

Spokes

Choosing the right spoke to build a wheel is essential. We specifically selected Pillar PA 1423 aero bladed spokes. They are cold forged making them strong, allowing them to be able to withstand over 300kgf of tension.

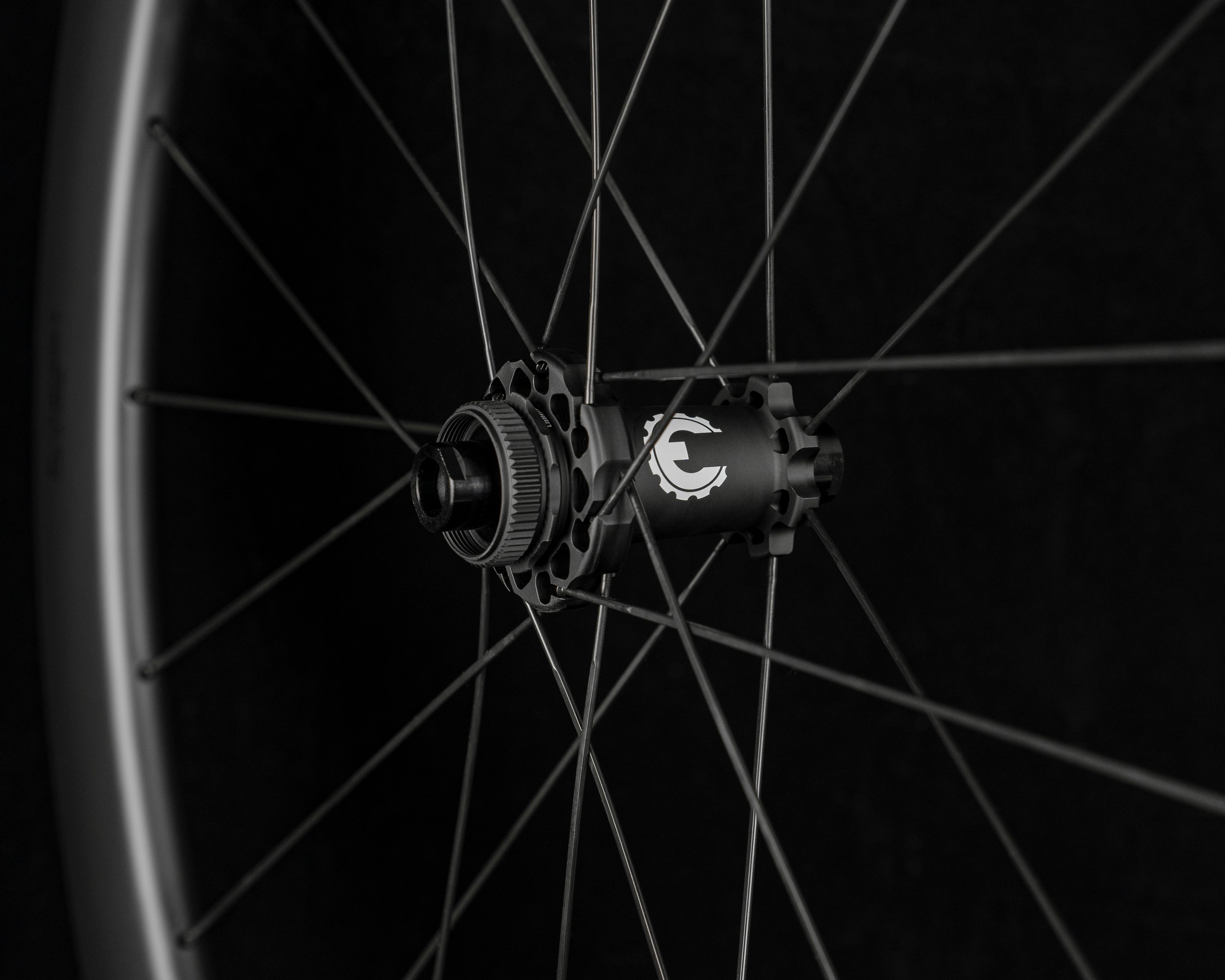

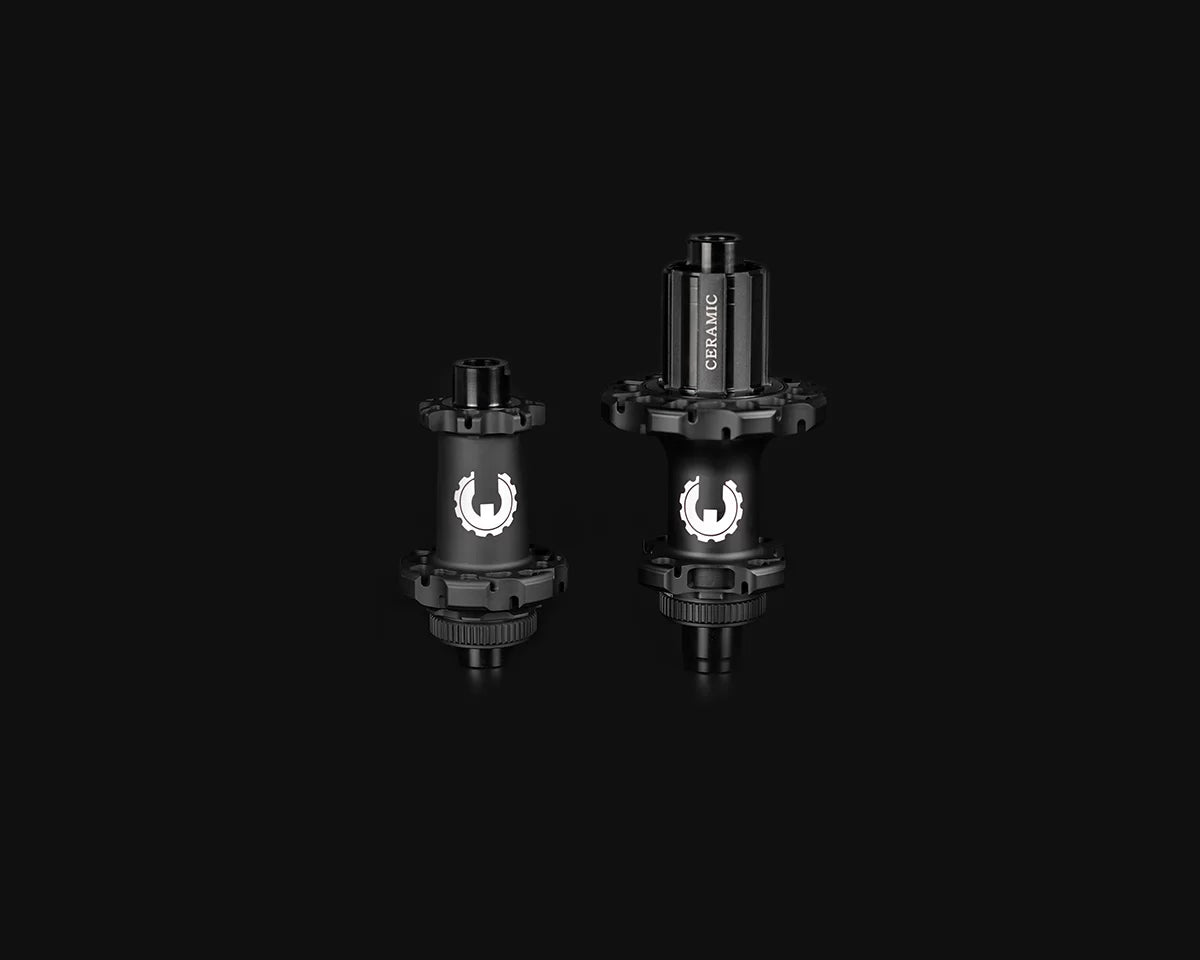

Hubs

Marvel Disc wheels feature high flange hubs which offer greater lateral stiffness, improving stability. Both the front and rear wheel hubs feature ceramic bearings with an extremely low coefficient of friction, saving you precious watts. The front hub uses 6803 ceramic bearings and the rear hub uses three 6803 bearings and one 6903 bearing. The larger the bearing, the better the rigidity.

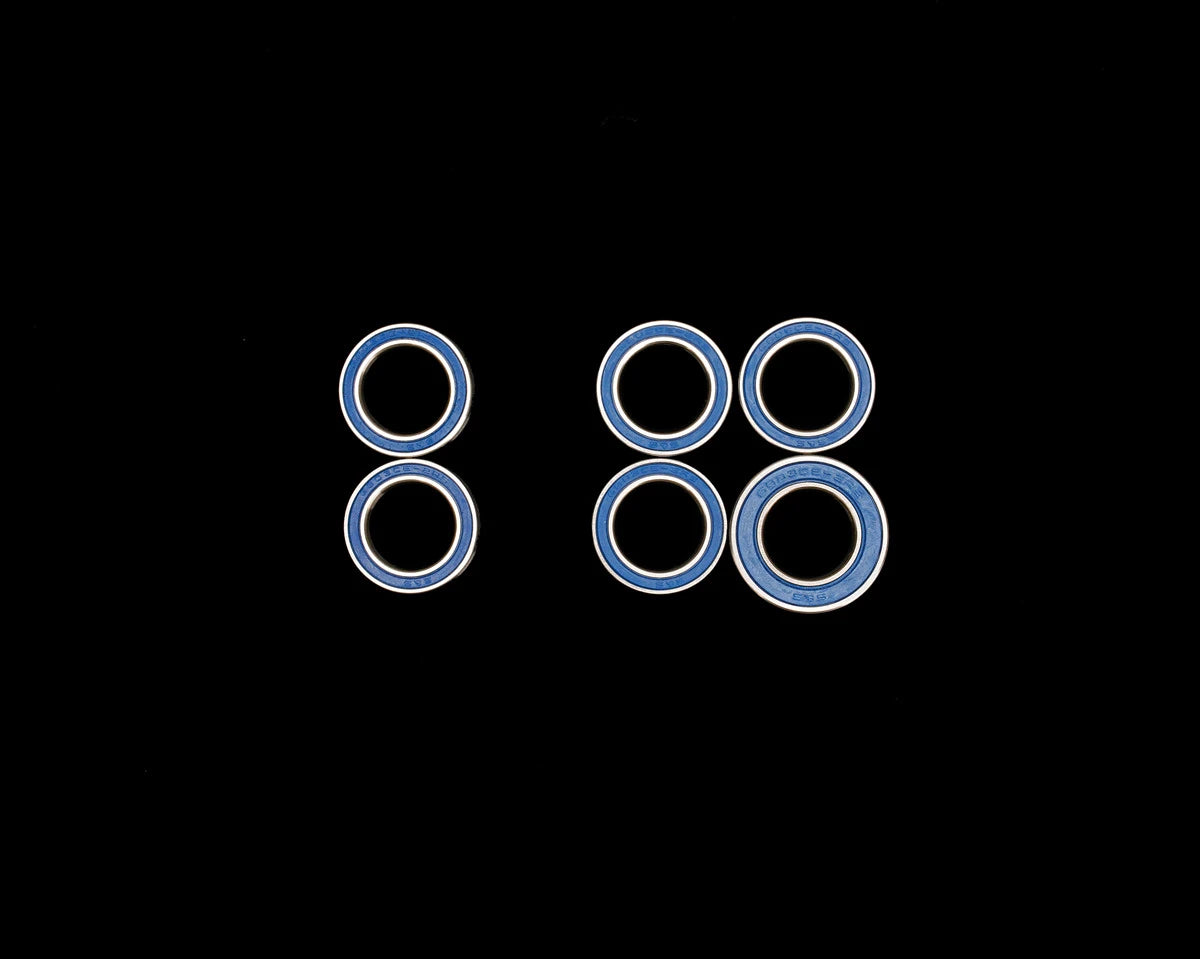

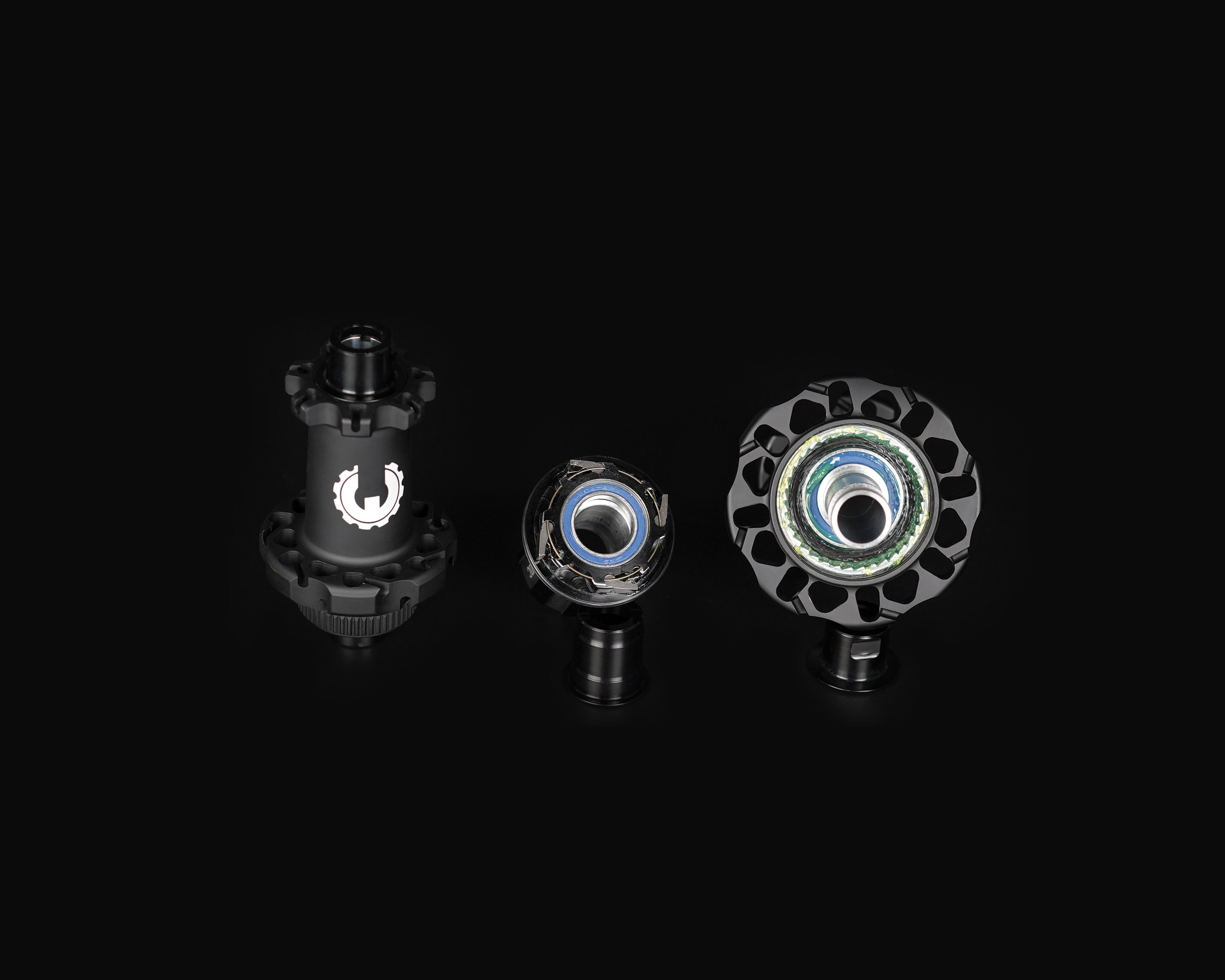

Bearings

The Marvel 50D’s front hub uses two 6803 mixed ceramic bearings. The rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better durability over standard size ones. The use of large mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.

More about Ceramic Bearings

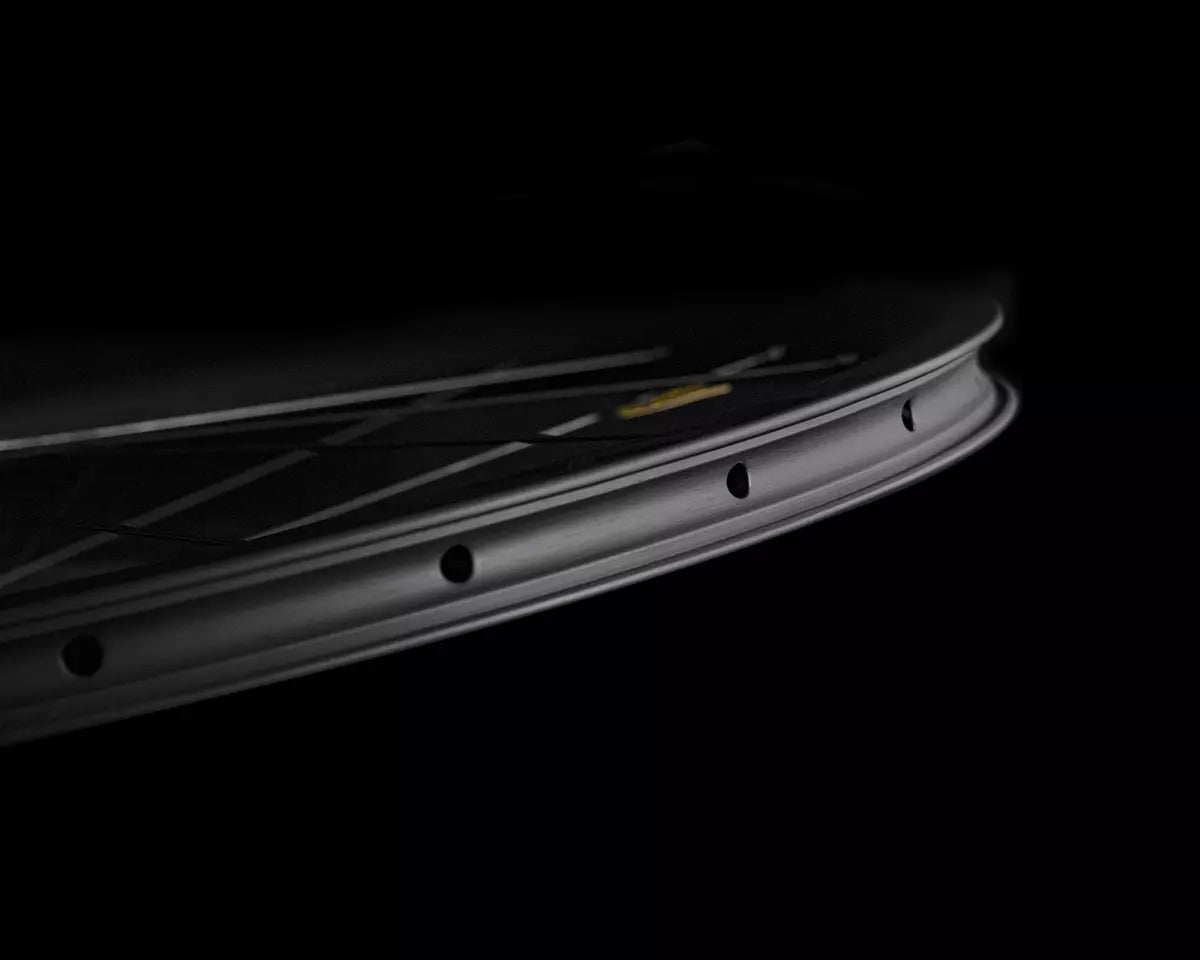

Tubeless in Mind

All of our wheels are tubeless ready with tubeless rim tape pre-installed. Each rim features our unique tubeless R-angle design, allowing for easier mounting. To make mounting tubeless tires even easier, rims are designed with bead seat retention ridges making inflation possible with just a floor pump.
