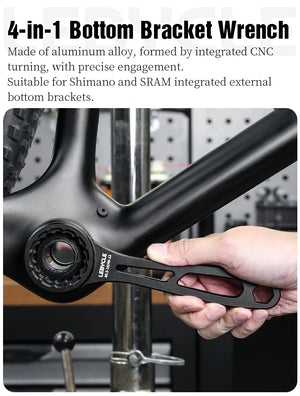

What This Wrench Is For

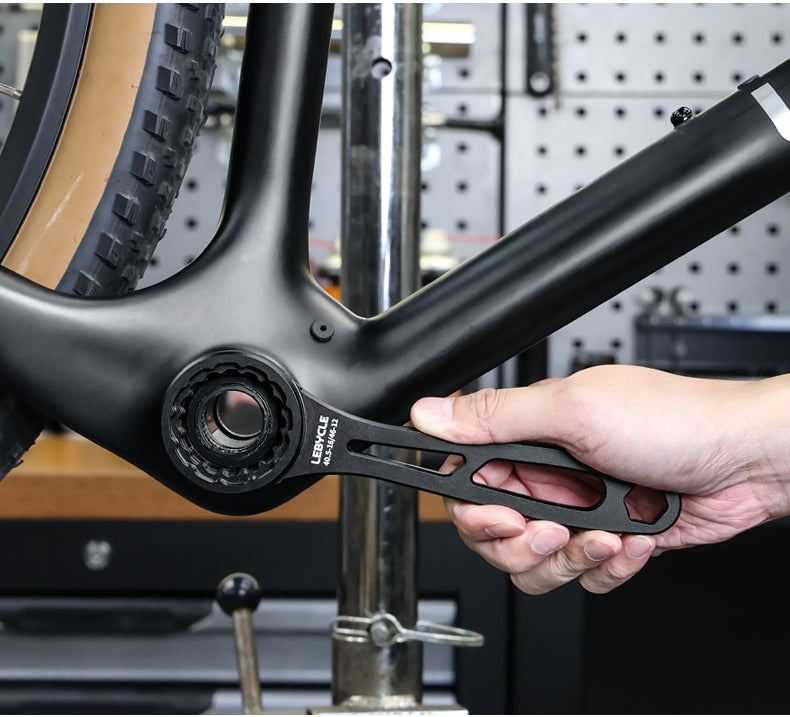

Modern integrated external bottom brackets (BB) thread or press into the frame and need a specific splined socket to tighten or remove them — a standard spanner or adjustable wrench simply won't grip the fine internal teeth correctly, and forcing one on risks rounding out the BB cup or slipping and marking up your frame.
This wrench is machined with the precise spline pattern needed to engage cleanly, so you can torque the bottom bracket to spec confidently whether you're building up a new frame, servicing your crankset, or swapping between bottom bracket standards.

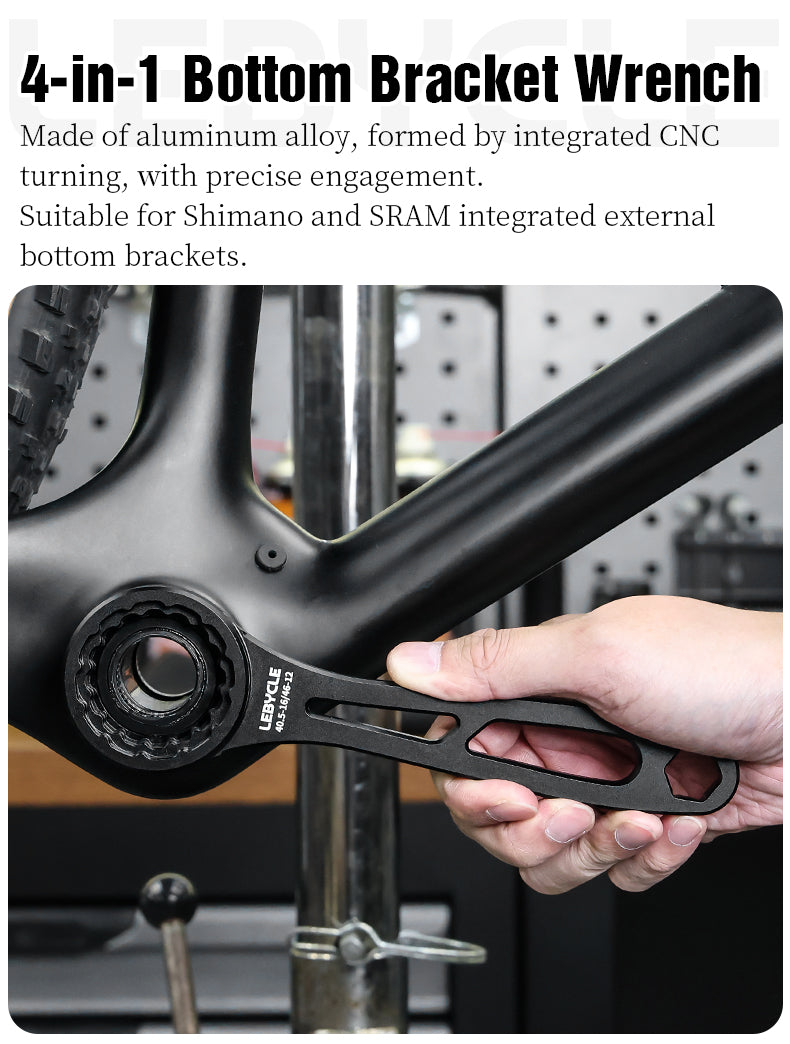

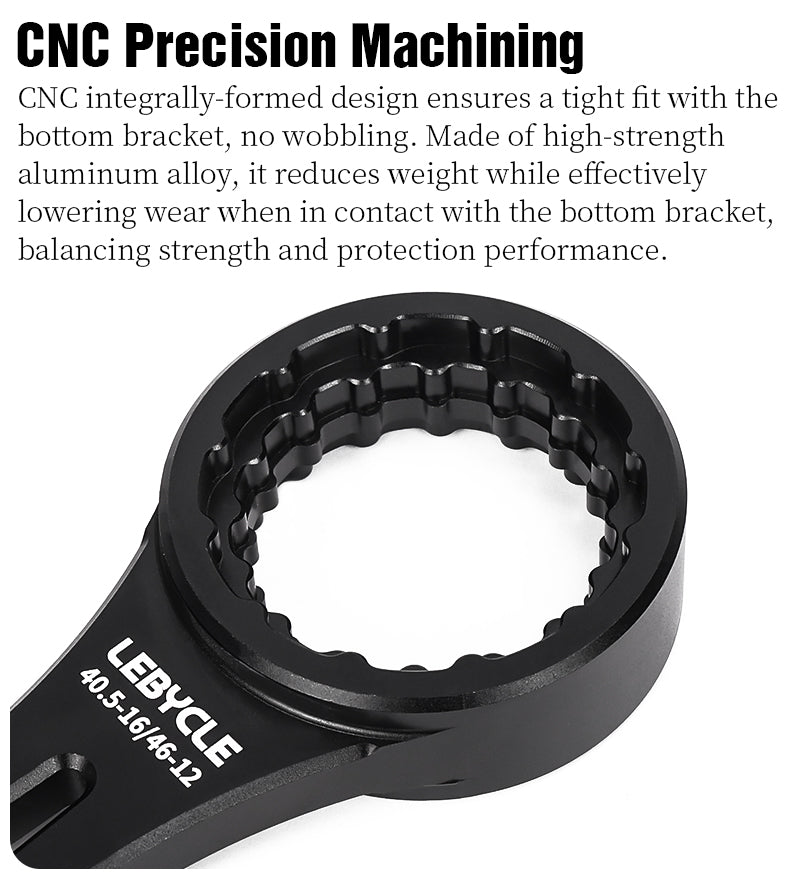

CNC Precision Machining
The wrench is CNC-turned from a single piece of aluminum alloy rather than stamped or cast, which gives the spline socket precise, consistent engagement with the bottom bracket — no wobbling or slipping under torque. High-strength aluminum keeps the tool light while still holding up to repeated use, and reduces wear on the bottom bracket's own splines every time you use it, protecting the part you're actually trying to service.
Hollowed-Out, Weight-Reducing Handle
The long handle is cut with hollowed-out slots rather than left as a solid bar. This trims unnecessary weight out of the tool while keeping the handle long enough to generate real leverage — a balance of strength where it's needed (the socket end) and lightness where it isn't (the handle).

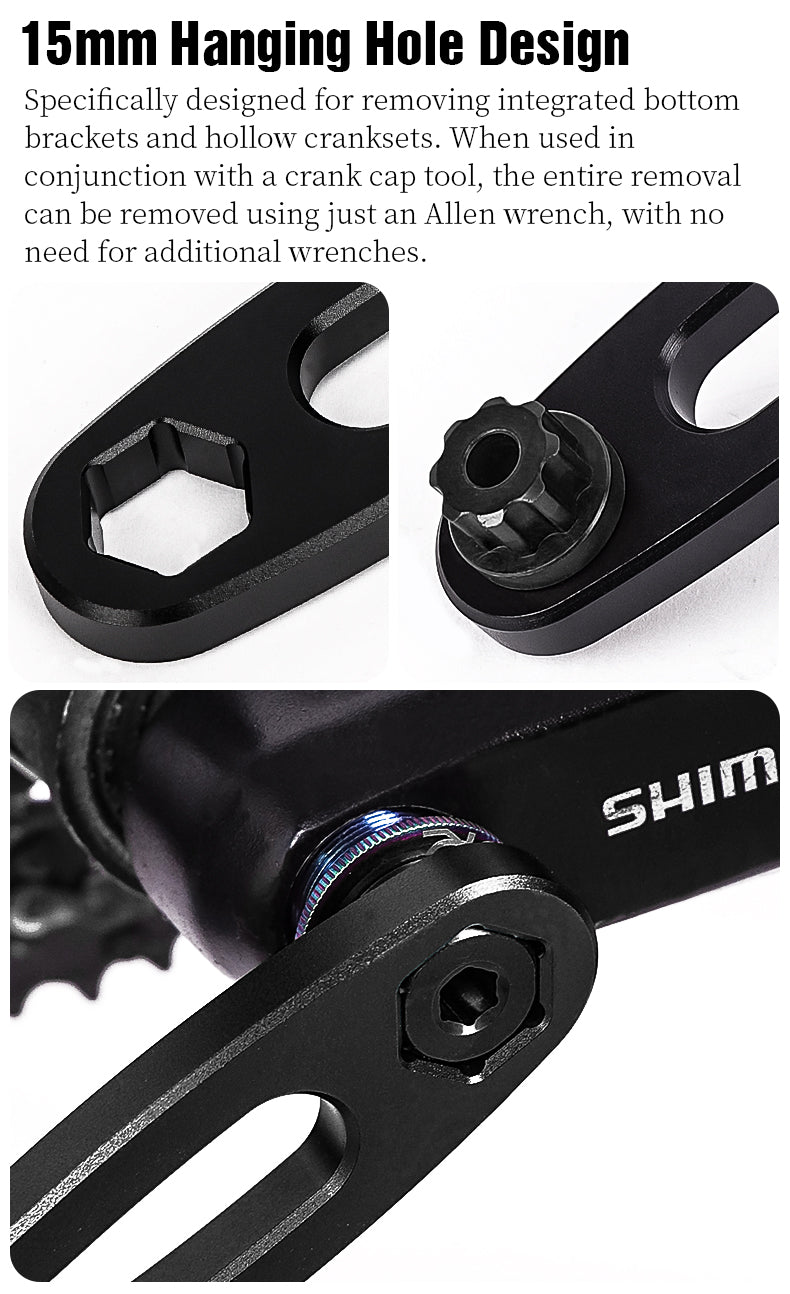

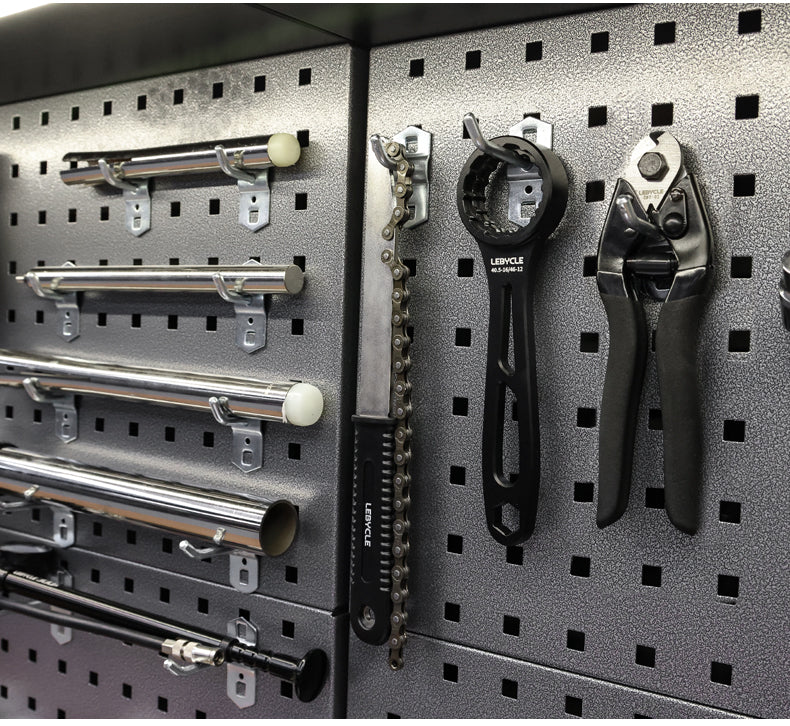

15mm Hanging Hole Doubles as a Crank Cap Fitting

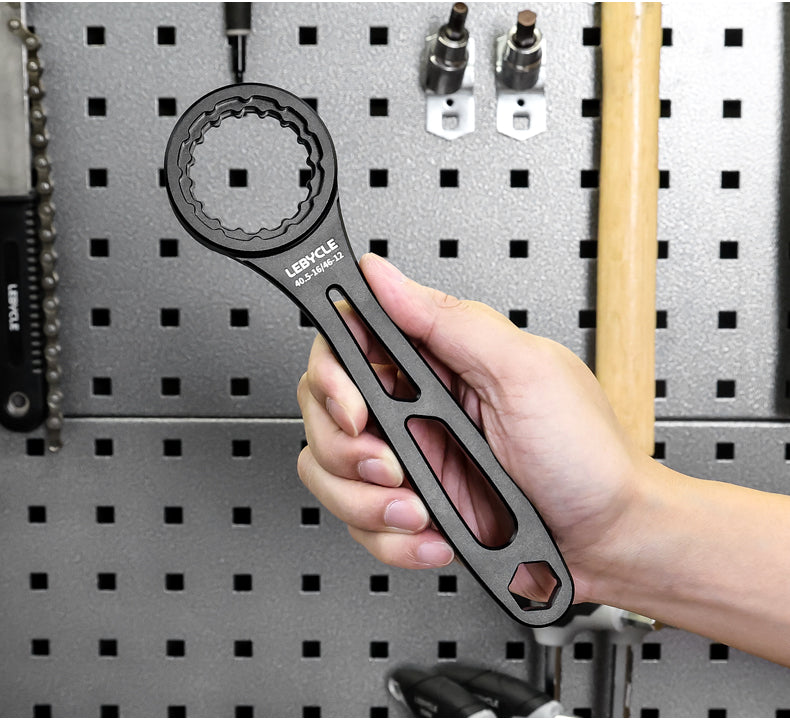

At the opposite end from the main socket, a 15mm hex-shaped hole serves two purposes: hang the wrench on a pegboard for storage, or use it together with a crank cap tool to remove the crank cap on integrated bottom brackets and hollow cranksets. Combined with a standard Allen wrench, this means a full crank/BB removal can be done with just this tool and an Allen key — no separate crank cap wrench needed in your kit.

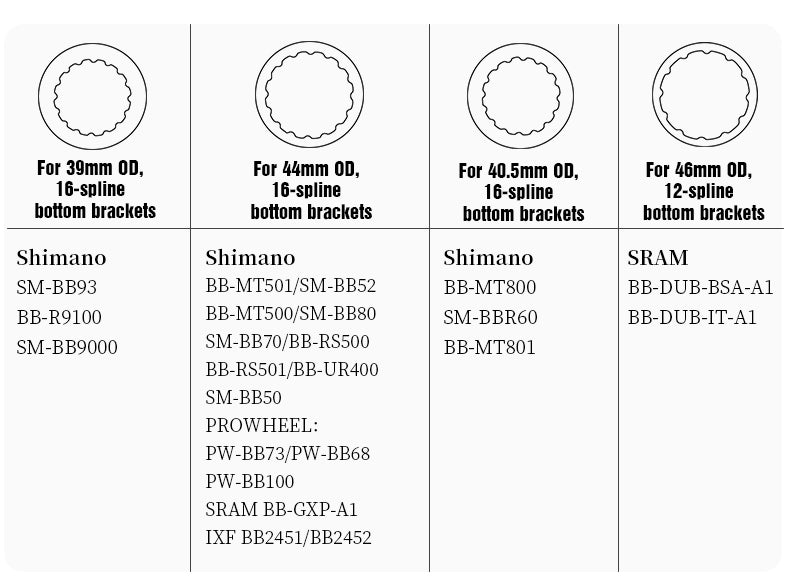

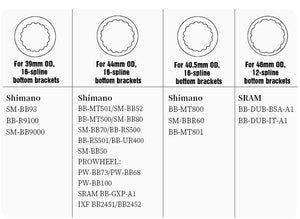

Compatibility — Check Your Bottom Bracket First

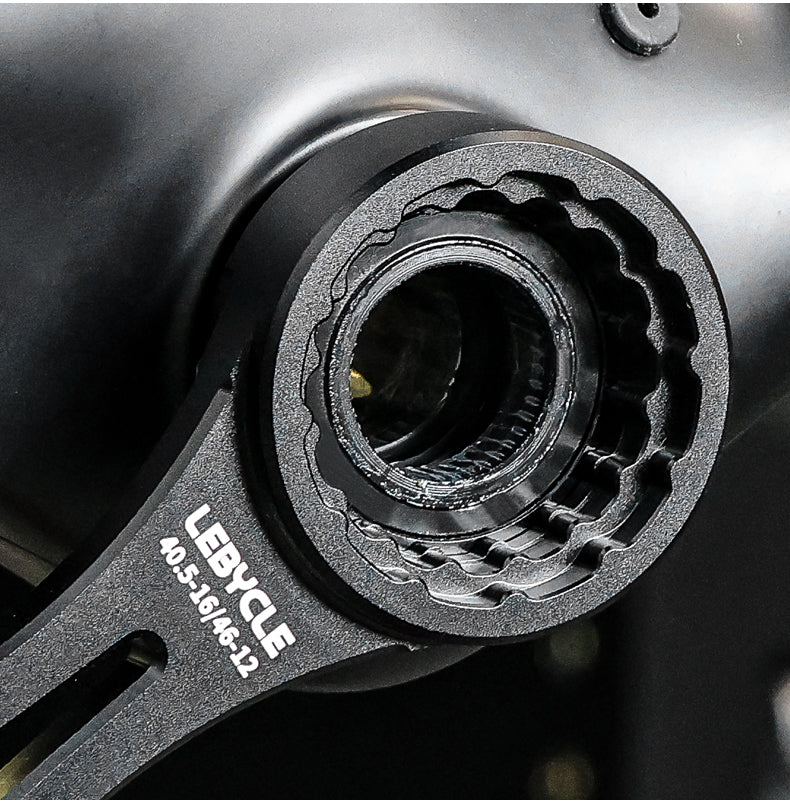

This specific wrench (model TS-BBT-H06C) is machined for the 40.5mm OD / 16-spline and 46mm OD / 12-spline patterns, marked directly on the tool. It fits:
| 40.5mm OD, 16-spline |
Shimano BB-MT800, SM-BBR60, BB-MT801 |
| 46mm OD, 12-spline |
SRAM BB-DUB-BSA-A1, BB-DUB-IT-A1 |
LEBYCLE's wider 4-in-1 wrench series also covers 39mm OD/16-spline (Shimano SM-BB93, BB-R9100, SM-BB9000) and 44mm OD/16-spline (Shimano BB-MT501/SM-BB52, BB-MT500/SM-BB80, SM-BB70/BB-RS500, BB-RS501/BB-UR400, SM-BB50, PROWHEEL PW-BB73/PW-BB68/PW-BB100, SRAM BB-GXP-A1, IXF BB2451/BB2452) — those two groups need the other wrench in the series, not this one. Check your bottom bracket's exact model number before ordering to make sure you get the correct wrench for your setup.

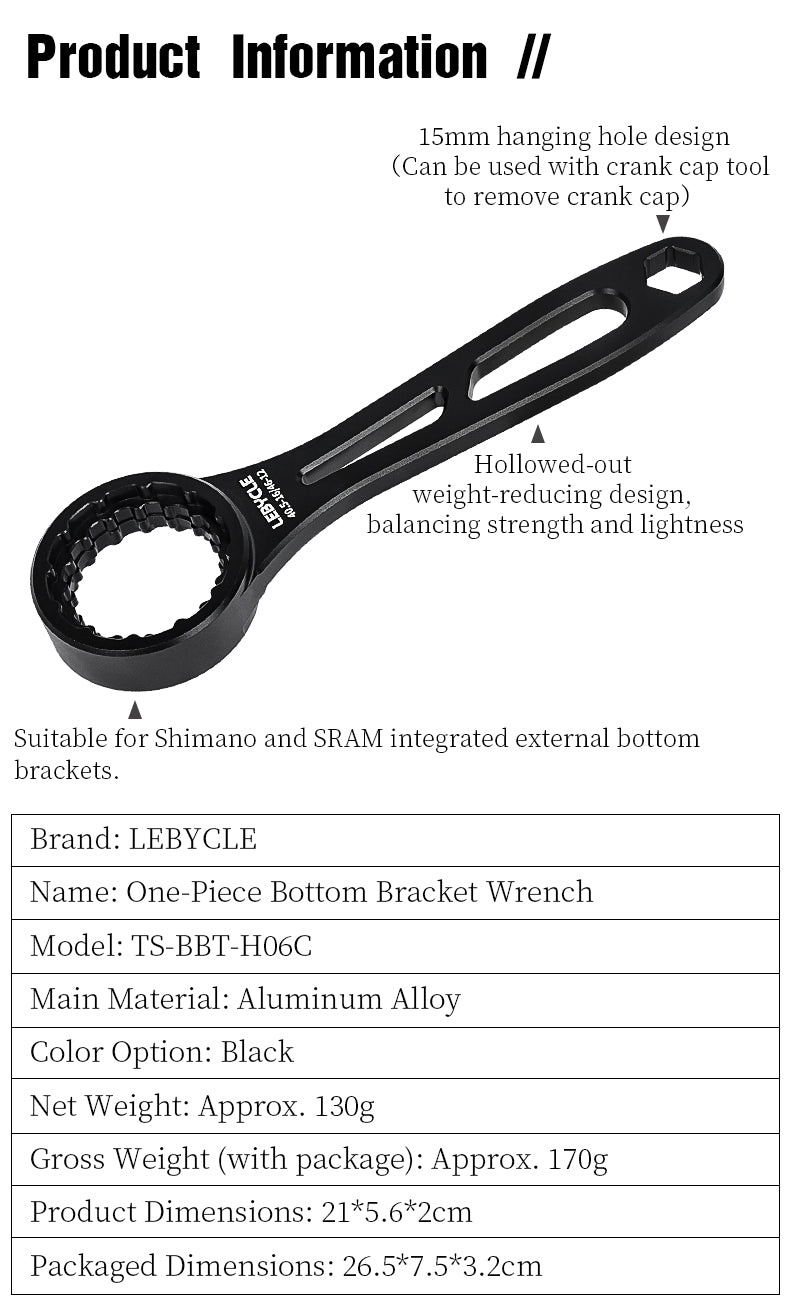

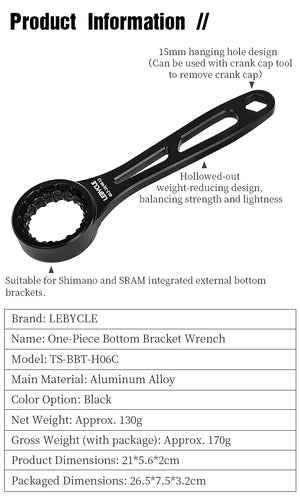

Specifications
| Brand |
LEBYCLE |
| Model |
TS-BBT-H06C |
| Main Material |
Aluminum Alloy |
| Color |
Black |

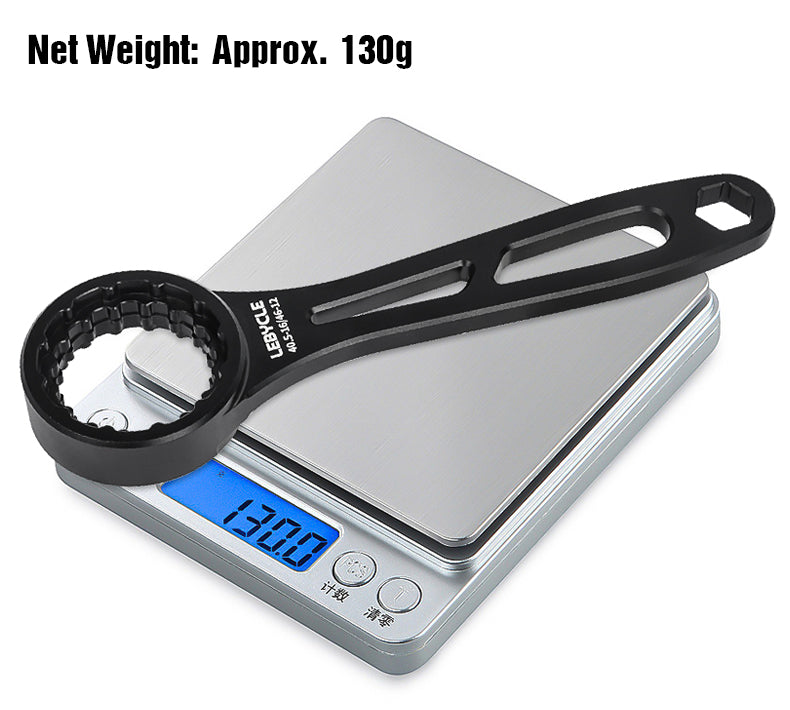

| Net Weight |
Approx. 130g |
| Gross Weight (with package) |
Approx. 170g |
| Product Dimensions |
21 x 5.6 x 2cm |
| Packaged Dimensions |
26.5 x 7.5 x 3.2cm |
💡 Pro Tip

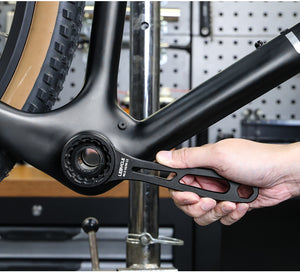

Before applying real torque, seat the wrench fully onto the bottom bracket splines and check it sits flush with no rocking — a partially engaged socket is the most common way to strip a bottom bracket's teeth, on this tool or any other.
Model: TS-BBT-H06C | LEBYCLE
