LeBycle Top Cap Carbon
- Regular price
- Rs. 510.00
- Sale price
- Rs. 510.00
- Regular price
-
Rs. 580.00 - Unit price
- / per
Shop location: 10 in stock
Warehouse: 40 in stock
SKU:HS-C04-01-I
You May be Interested
LEBYCLE

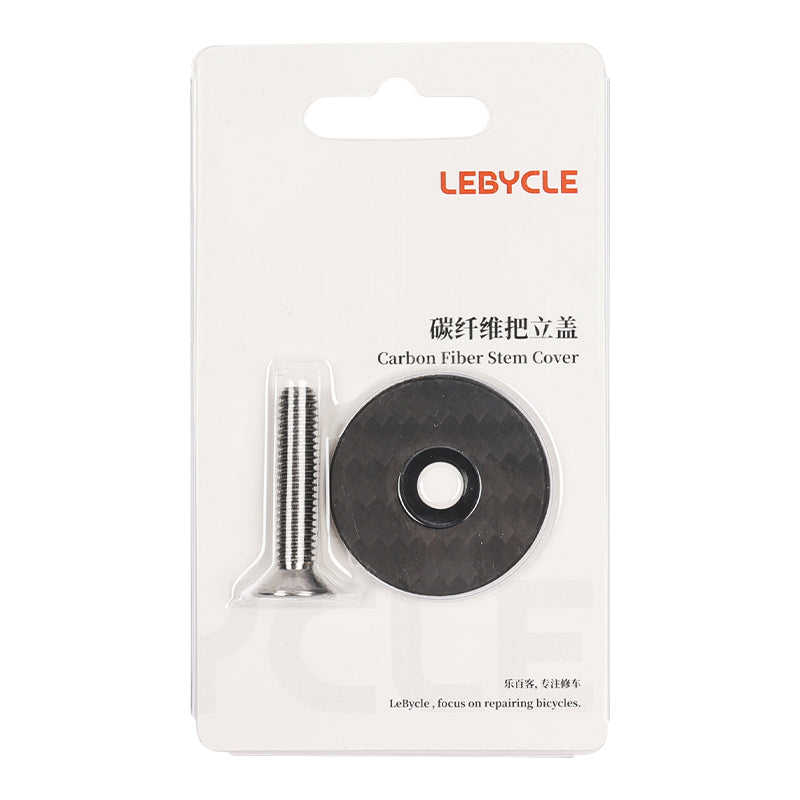

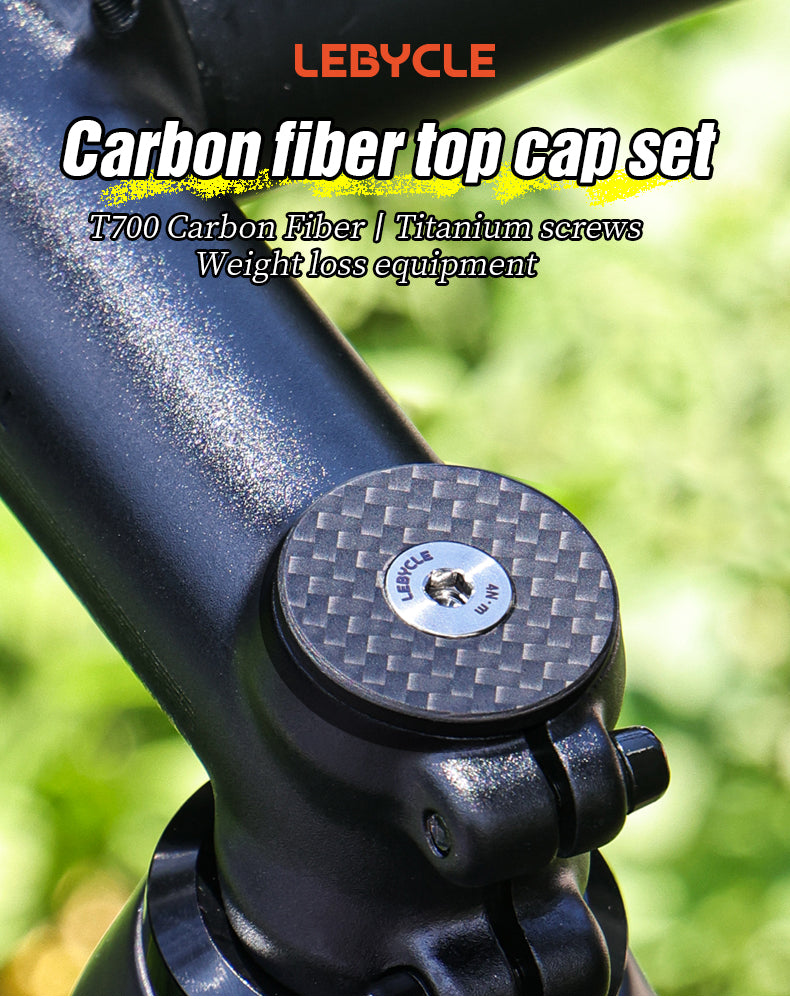

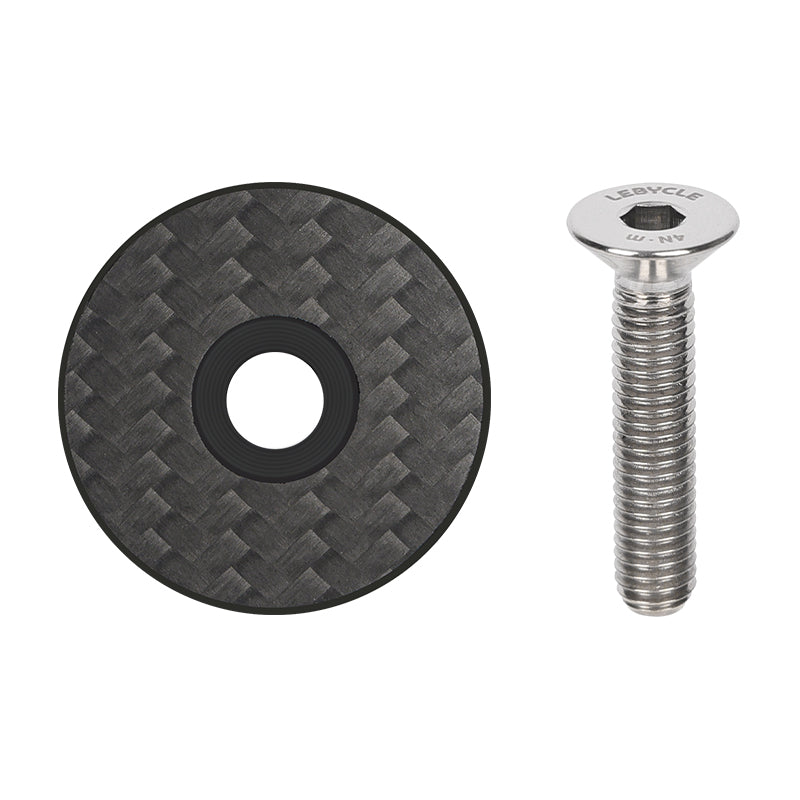

Carbon Fiber Top Cap Set
T700 carbon fiber stem cover with a titanium bolt — a small, easy upgrade that trims grams off one of the few visible metal parts left on a modern cockpit.
What This Part Actually Does

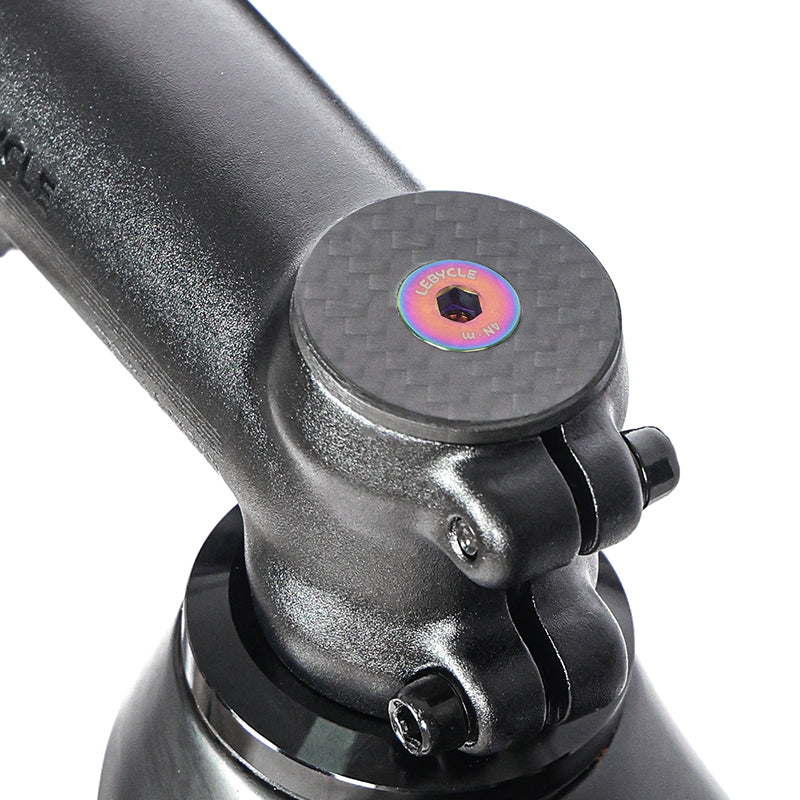

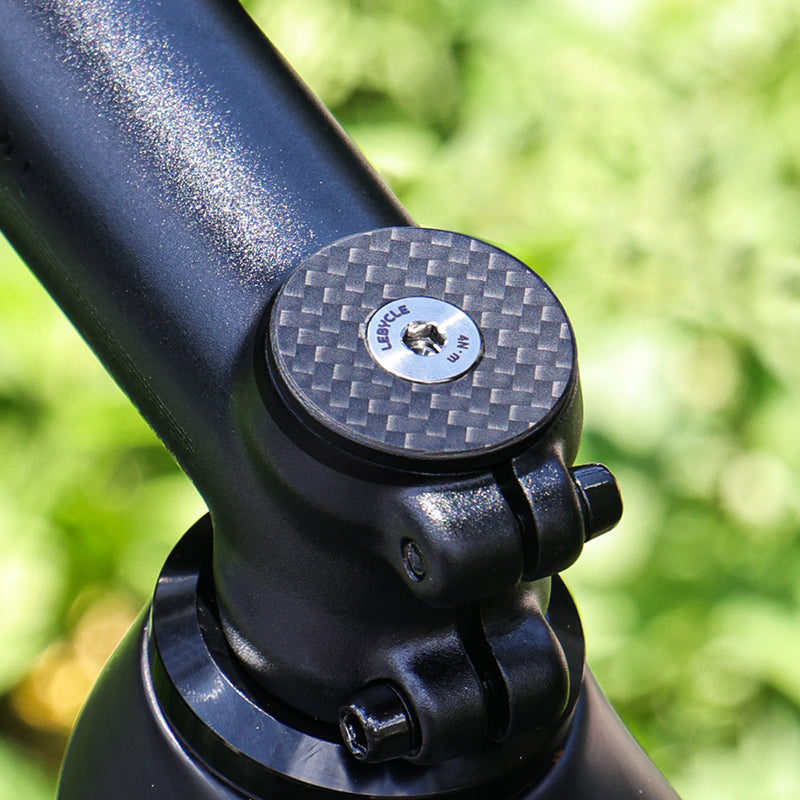

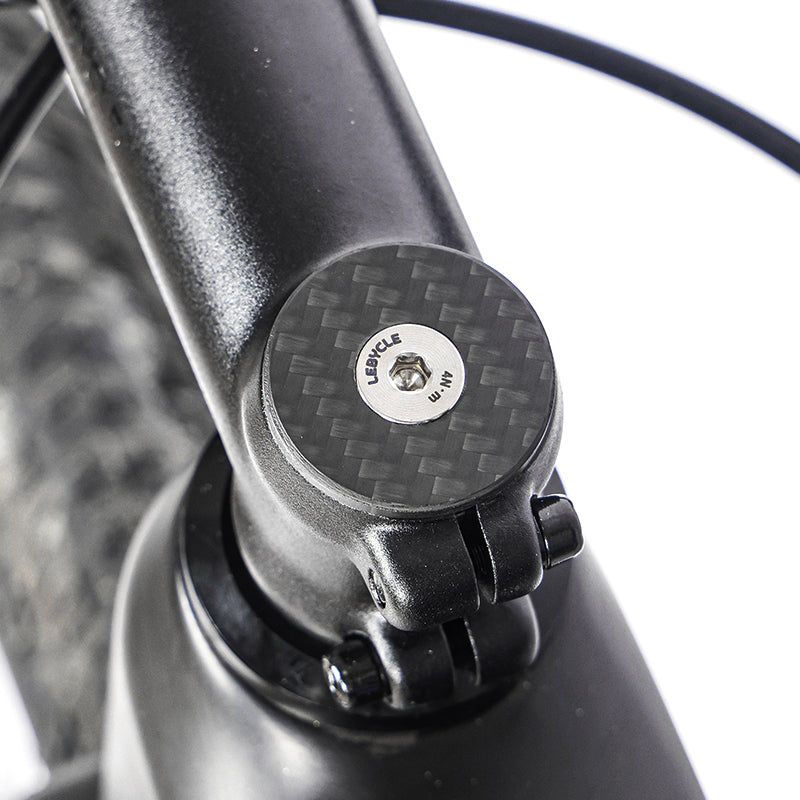

The top cap sits at the very top of your headset, above the stem, and its job has nothing to do with holding your handlebar in place — that's the stem bolts' job. Instead, the top cap bolt preloads your headset bearings: tightening it pulls the fork's steerer tube up slightly against the headset bearings to remove play, before the stem's own bolts are tightened to actually clamp everything in position.
Because it's not a structural clamping part, it's one of the few places on a bike where you can safely swap in a lighter material without touching anything that affects handling or safety margins — which is exactly the appeal of a carbon and titanium version like this one.
T700 Carbon Fiber Cap

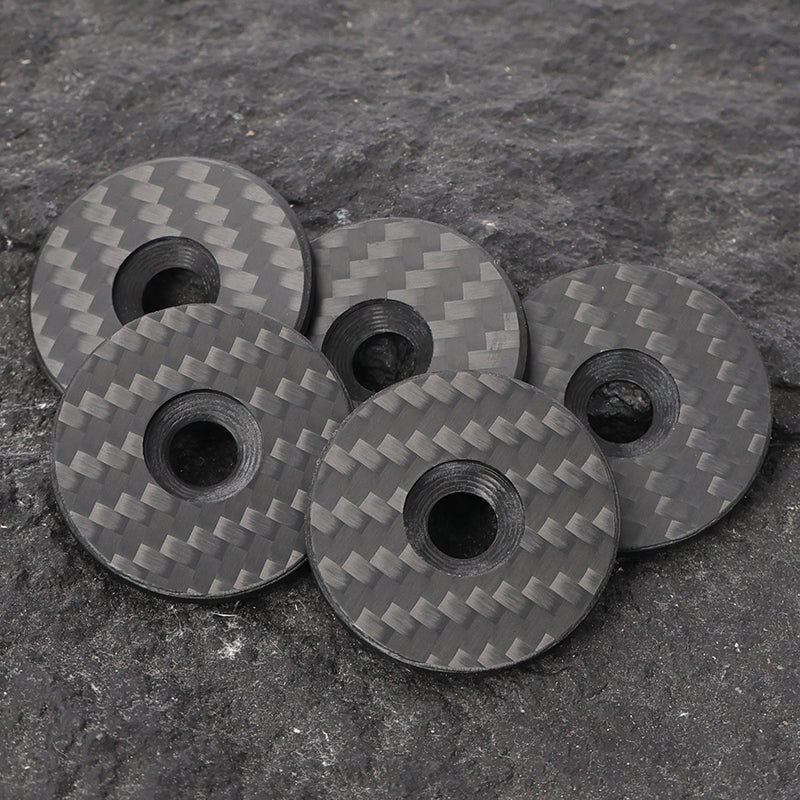

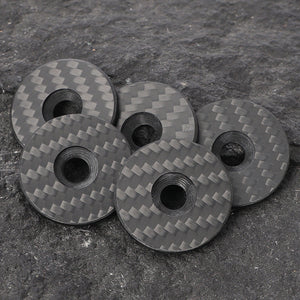

The cap itself is molded from T700-grade carbon fiber with a 3K plaid weave finished in matte — the same weave and grade often used in higher-end frame and component layups, chosen here for its strength-to-weight ratio rather than just looks.
TC4 Titanium Alloy Screw

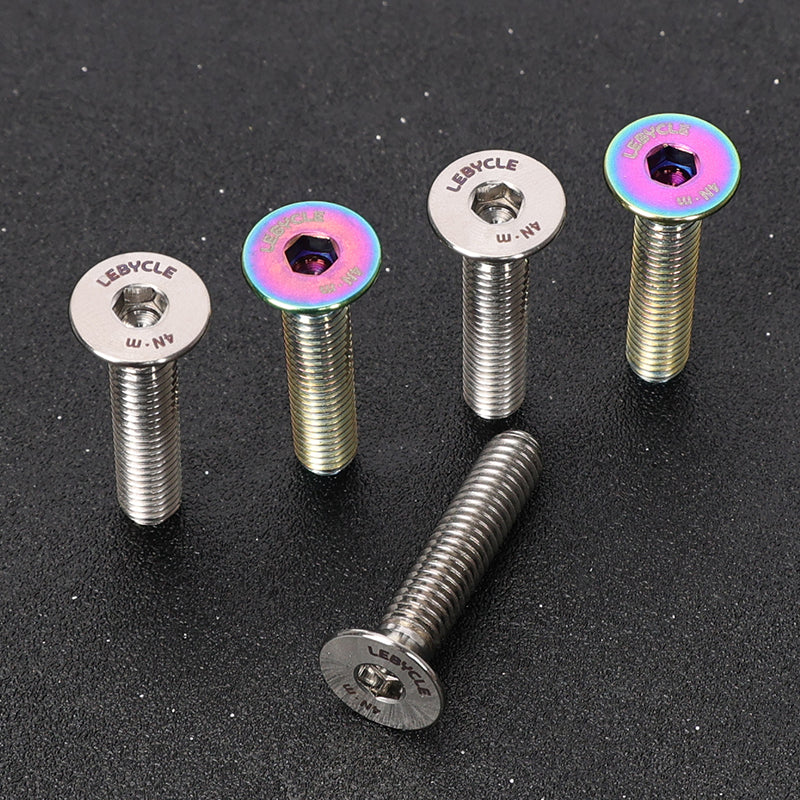

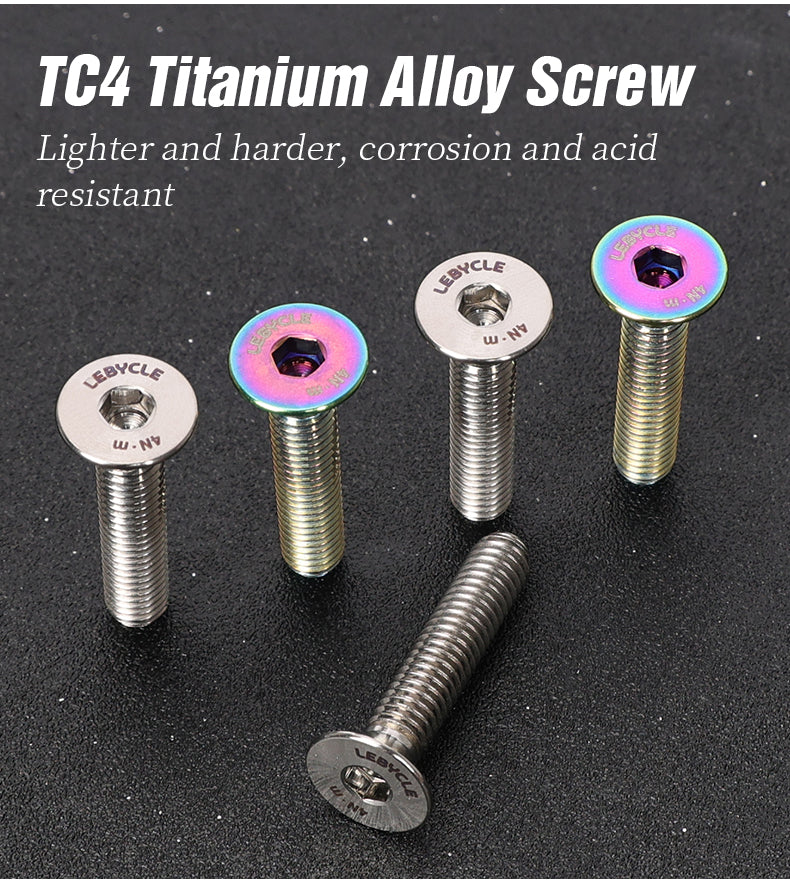

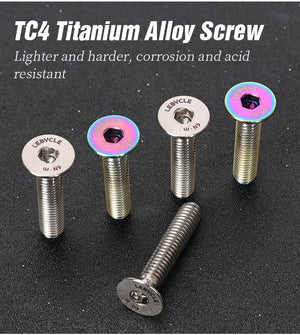

The included bolt is machined from TC4 titanium alloy — lighter than steel, harder-wearing, and naturally resistant to corrosion and acid, so it holds up well even with regular exposure to sweat, rain, and road grime. TC4 is a common aerospace-grade titanium alloy prized for a strength-to-weight ratio that steel simply can't match.
The Weight Savings, Honestly

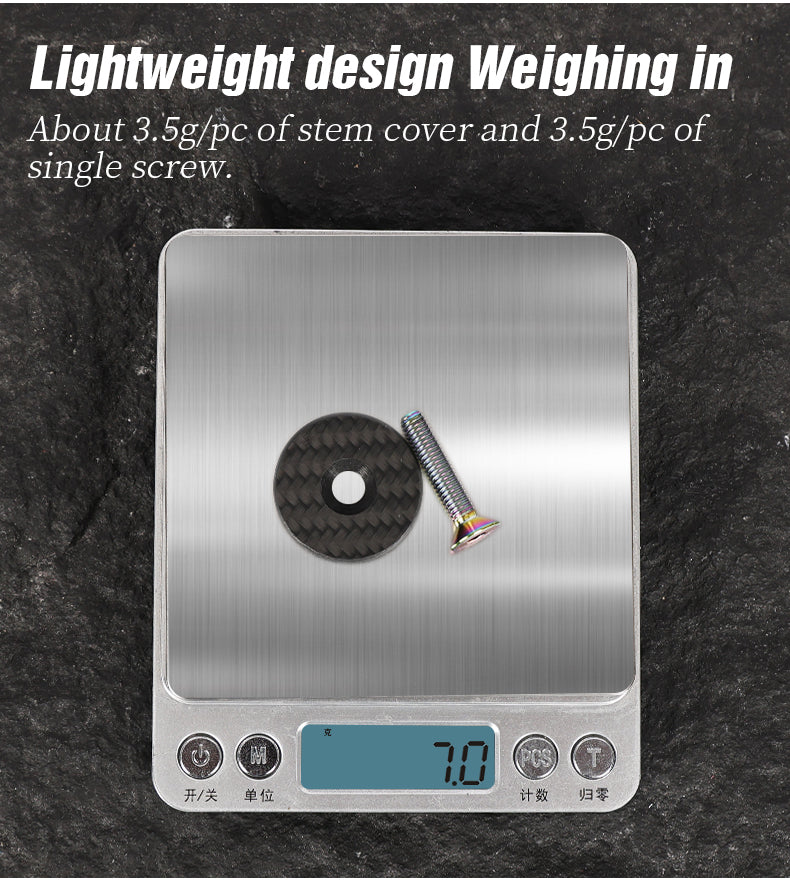

The complete set — cap and screw together — weighs around 7g total (approximately 3.5g each). That's not going to transform how your bike rides; a stock alloy top cap and steel bolt typically weigh somewhere in a similar ballpark, so treat this as what it is: a small, low-risk weight-weenie upgrade and a finishing touch for a carbon cockpit, not a meaningful performance change on its own.
⚠️ Torque Limit — Read Before Installing
Use a torque wrench when installing this cap, and do not exceed 4Nm. Because the cap is only preloading the headset bearings rather than clamping anything structural, it needs far less torque than a stem bolt — overtightening beyond 4Nm can crack or damage the carbon cap.

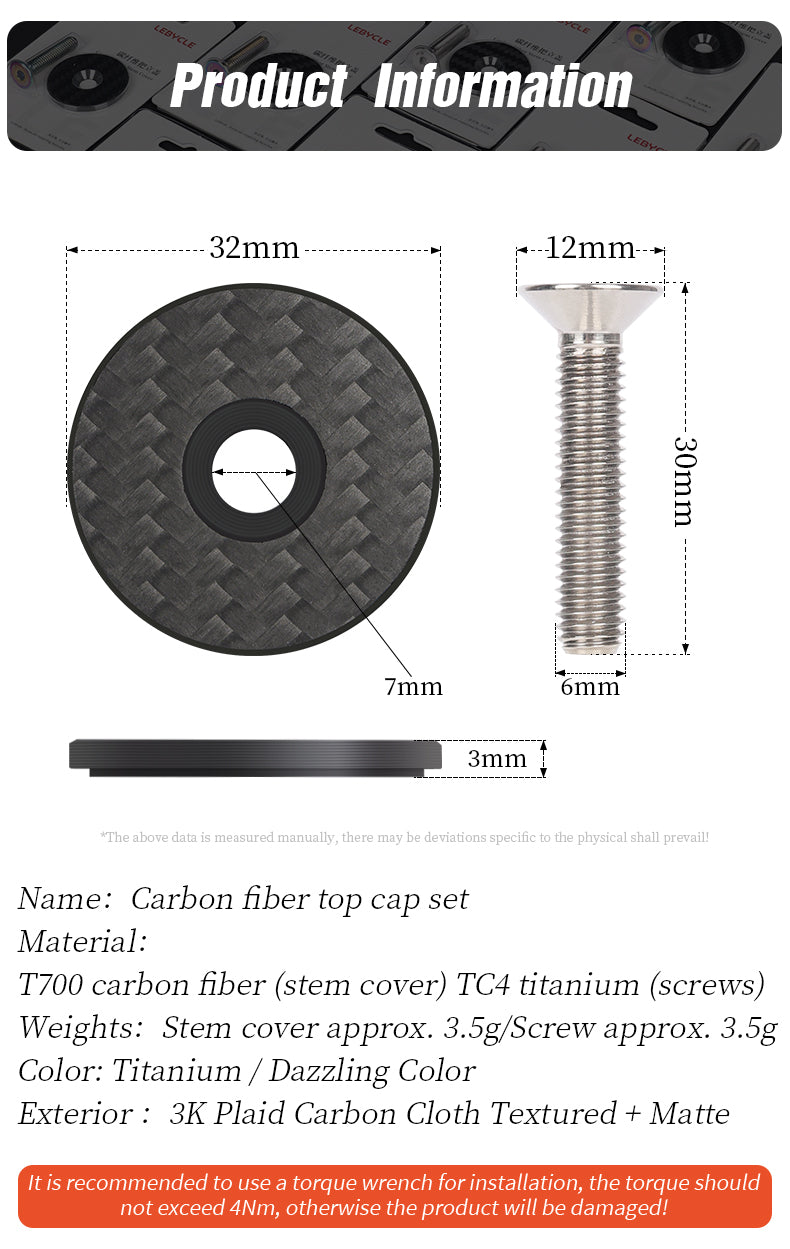

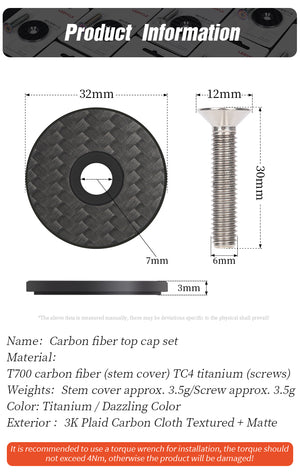

Specifications
| Name | Carbon Fiber Top Cap Set |
| Material | T700 carbon fiber (cap) / TC4 titanium (screw) |
| Exterior Finish | 3K plaid carbon cloth texture, matte |

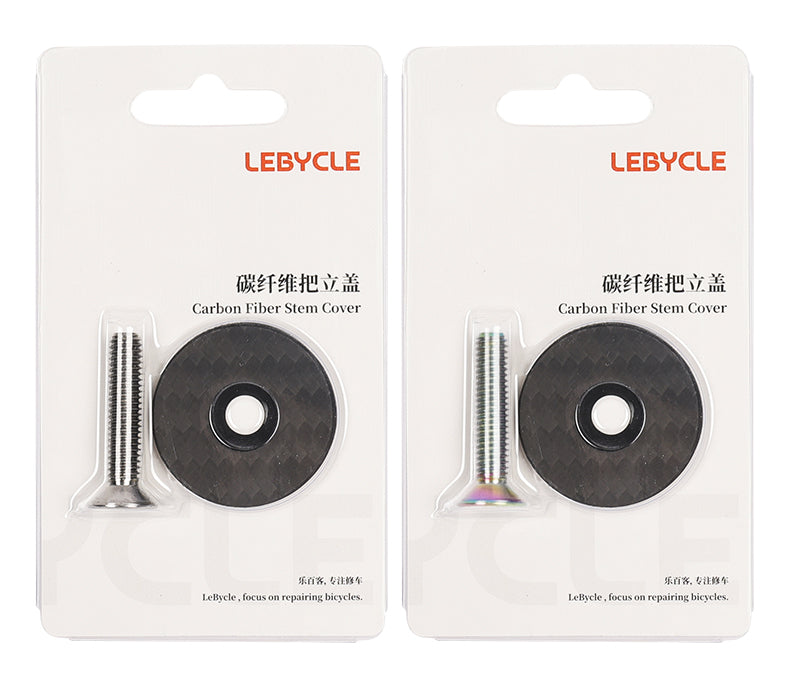

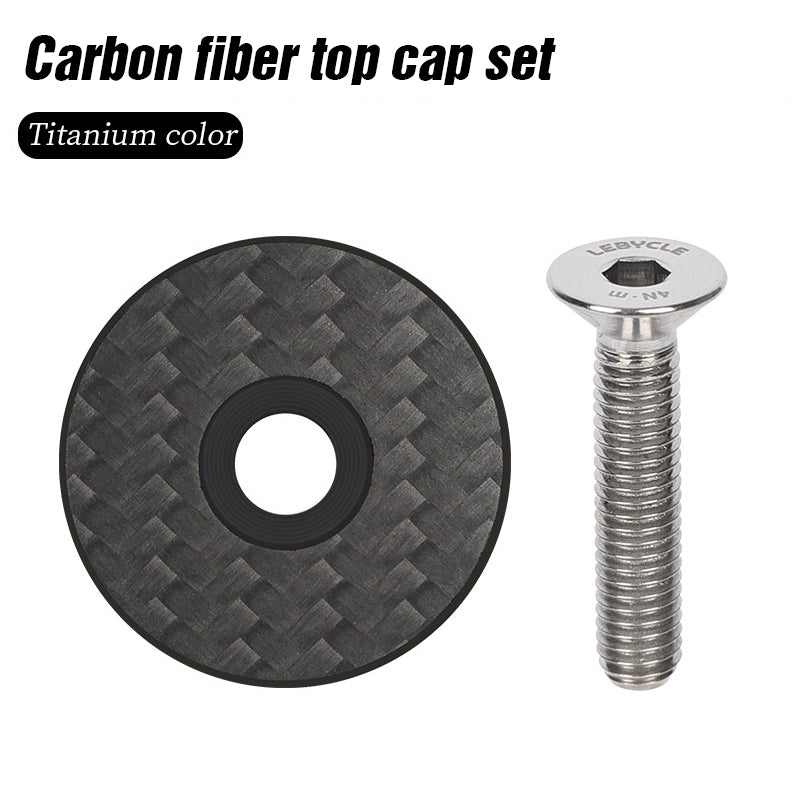

| Color | Titanium / Dazzling (rainbow) |
| Weight | Cap ≈3.5g / Screw ≈3.5g (≈7g total) |
| Cap Dimensions | 32mm diameter x 3mm thick, 7mm center bore |
| Screw Dimensions | 12mm head diameter x 30mm length, 6mm shaft |
Dimensions are measured manually — actual size may vary slightly from the figures above.
💡 Pro Tip
Tighten the top cap bolt just enough to remove play in the headset — spin the front wheel and check the bearings feel smooth with no notchiness, then move on to torquing the stem bolts to their own spec. The top cap is doing its job correctly well before it feels "tight" in the way a stem bolt does.
LEBYCLE Carbon Fiber Top Cap Set
LEBYCLE
Carbon Fiber Top Cap Set
T700 carbon fiber stem cover with a titanium bolt — a small, easy upgrade that trims grams off one of the few visible metal parts left on a modern cockpit.
What This Part Actually Does
The top cap sits at the very top of your headset, above the stem, and its job has nothing to do with holding your handlebar in place — that's the stem bolts' job. Instead, the top cap bolt preloads your headset bearings: tightening it pulls the fork's steerer tube up slightly against the headset bearings to remove play, before the stem's own bolts are tightened to actually clamp everything in position.
Because it's not a structural clamping part, it's one of the few places on a bike where you can safely swap in a lighter material without touching anything that affects handling or safety margins — which is exactly the appeal of a carbon and titanium version like this one.
T700 Carbon Fiber Cap
The cap itself is molded from T700-grade carbon fiber with a 3K plaid weave finished in matte — the same weave and grade often used in higher-end frame and component layups, chosen here for its strength-to-weight ratio rather than just looks.
TC4 Titanium Alloy Screw
The included bolt is machined from TC4 titanium alloy — lighter than steel, harder-wearing, and naturally resistant to corrosion and acid, so it holds up well even with regular exposure to sweat, rain, and road grime. TC4 is a common aerospace-grade titanium alloy prized for a strength-to-weight ratio that steel simply can't match.
The Weight Savings, Honestly
The complete set — cap and screw together — weighs around 7g total (approximately 3.5g each). That's not going to transform how your bike rides; a stock alloy top cap and steel bolt typically weigh somewhere in a similar ballpark, so treat this as what it is: a small, low-risk weight-weenie upgrade and a finishing touch for a carbon cockpit, not a meaningful performance change on its own.
⚠️ Torque Limit — Read Before Installing
Use a torque wrench when installing this cap, and do not exceed 4Nm. Because the cap is only preloading the headset bearings rather than clamping anything structural, it needs far less torque than a stem bolt — overtightening beyond 4Nm can crack or damage the carbon cap.
Specifications
| Name | Carbon Fiber Top Cap Set |
| Material | T700 carbon fiber (cap) / TC4 titanium (screw) |
| Exterior Finish | 3K plaid carbon cloth texture, matte |
| Color | Titanium / Dazzling (rainbow) |
| Weight | Cap ≈3.5g / Screw ≈3.5g (≈7g total) |
| Cap Dimensions | 32mm diameter x 3mm thick, 7mm center bore |
| Screw Dimensions | 12mm head diameter x 30mm length, 6mm shaft |
Dimensions are measured manually — actual size may vary slightly from the figures above.
💡 Pro Tip
Tighten the top cap bolt just enough to remove play in the headset — spin the front wheel and check the bearings feel smooth with no notchiness, then move on to torquing the stem bolts to their own spec. The top cap is doing its job correctly well before it feels "tight" in the way a stem bolt does.
LEBYCLE Carbon Fiber Top Cap Set
This product is non-returnable and does not have any exchange policy.
This product is non-returnable and does not have any exchange policy.
Support
Frequently Asked Questions
The top cap sits above your stem at the very top of the steerer tube, and a preload bolt passes through it to thread into a star nut, or compression plug, fixed inside the steerer tube. Tightening this bolt pulls the steerer components together, applying preload to the headset bearings so your steering stays snug and free of play without being over-tight.
A carbon top cap is chosen mainly for its lighter weight and finish match with carbon handlebars, stems, or seatposts, giving a cohesive cockpit look. Functionally it performs the same preload role as an aluminium cap, so the choice largely comes down to weight savings and aesthetics rather than a difference in headset adjustment capability.
No, preload is adjustable, you tighten the top cap's bolt until there is no play and the headset spins freely, then lock the stem bolts to hold that position. It is worth re-checking preload periodically, since bearings can settle slightly with use and may need a small readjustment.
Fit depends on your steerer tube's outer diameter, commonly 1-1/8 inch though some setups use tapered or oversized steerers, so it is important to confirm your steerer diameter matches this top cap's spec before ordering, since a mismatched cap will not seat correctly on the steerer tube's top edge.
Installing a top cap is a straightforward home job with a hex key, remove the old cap and bolt, fit the new cap, thread the bolt into the star nut, and tighten gradually while checking for headset play and smooth steering rotation. If your steerer does not yet have a star nut installed, that part does require a star nut setting tool, which is a slightly more specialised step.
Yes, it is built to handle the compressive preload forces a top cap experiences in normal use, with enough wall thickness at the bolt contact point to avoid cracking under correctly torqued preload.
