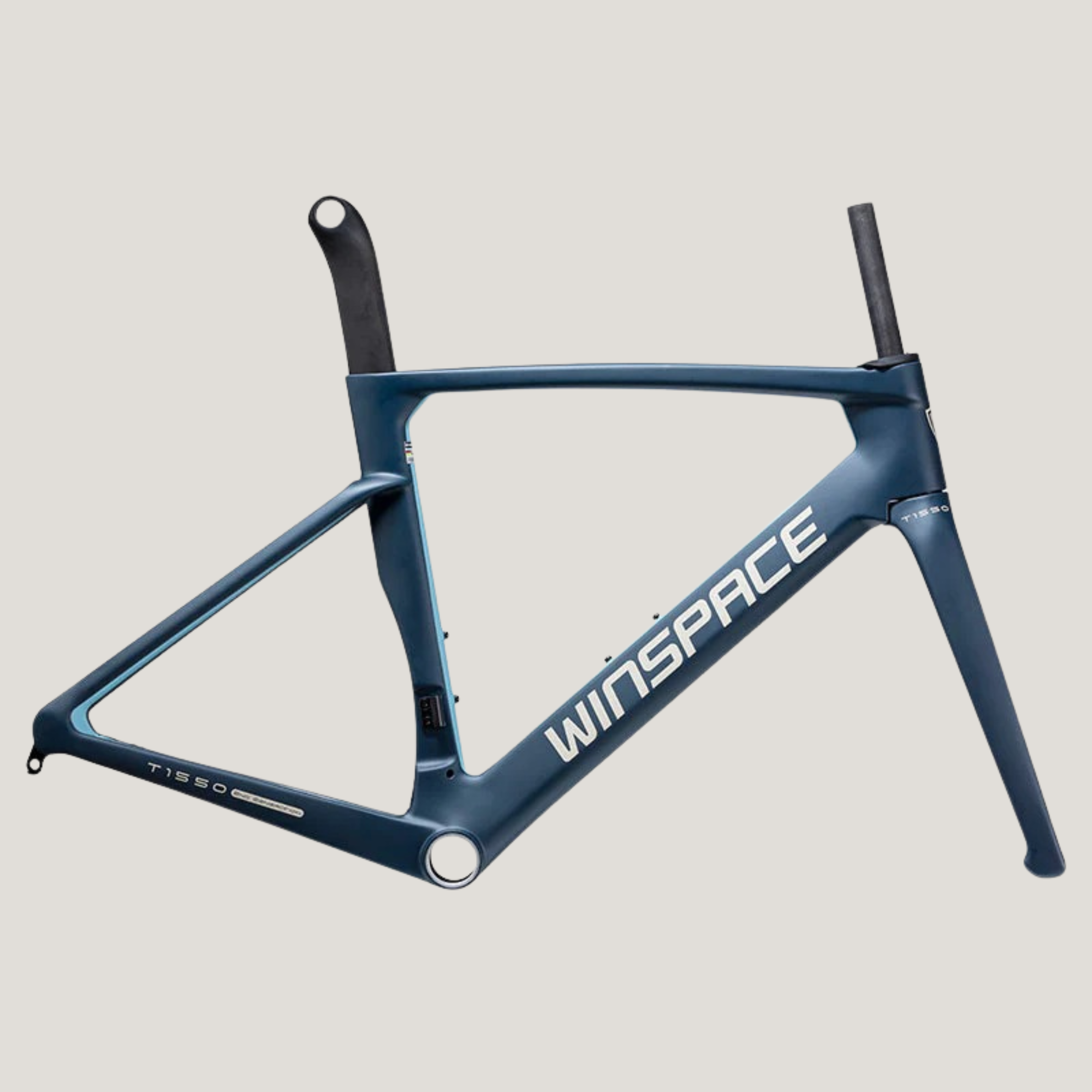

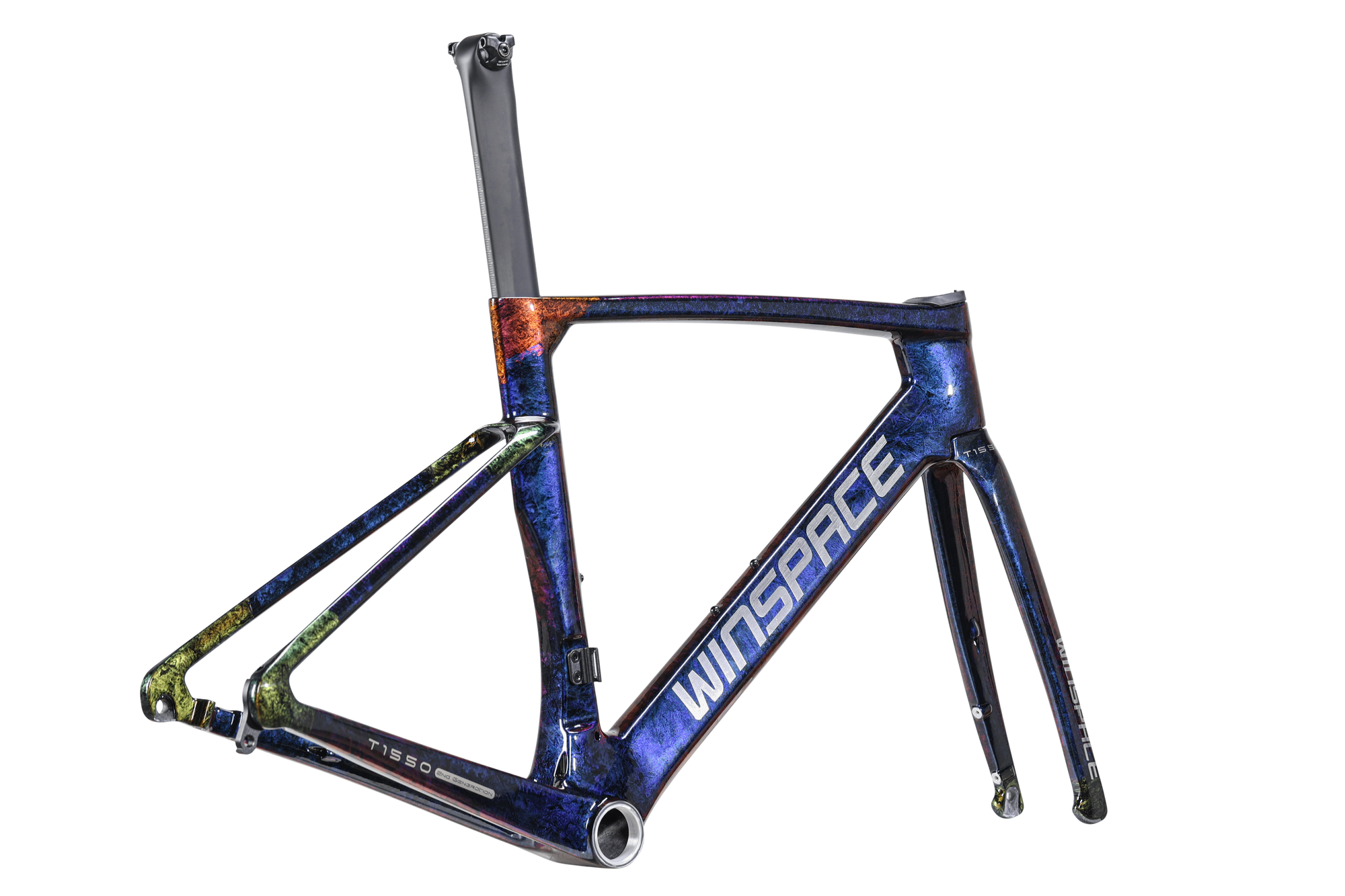

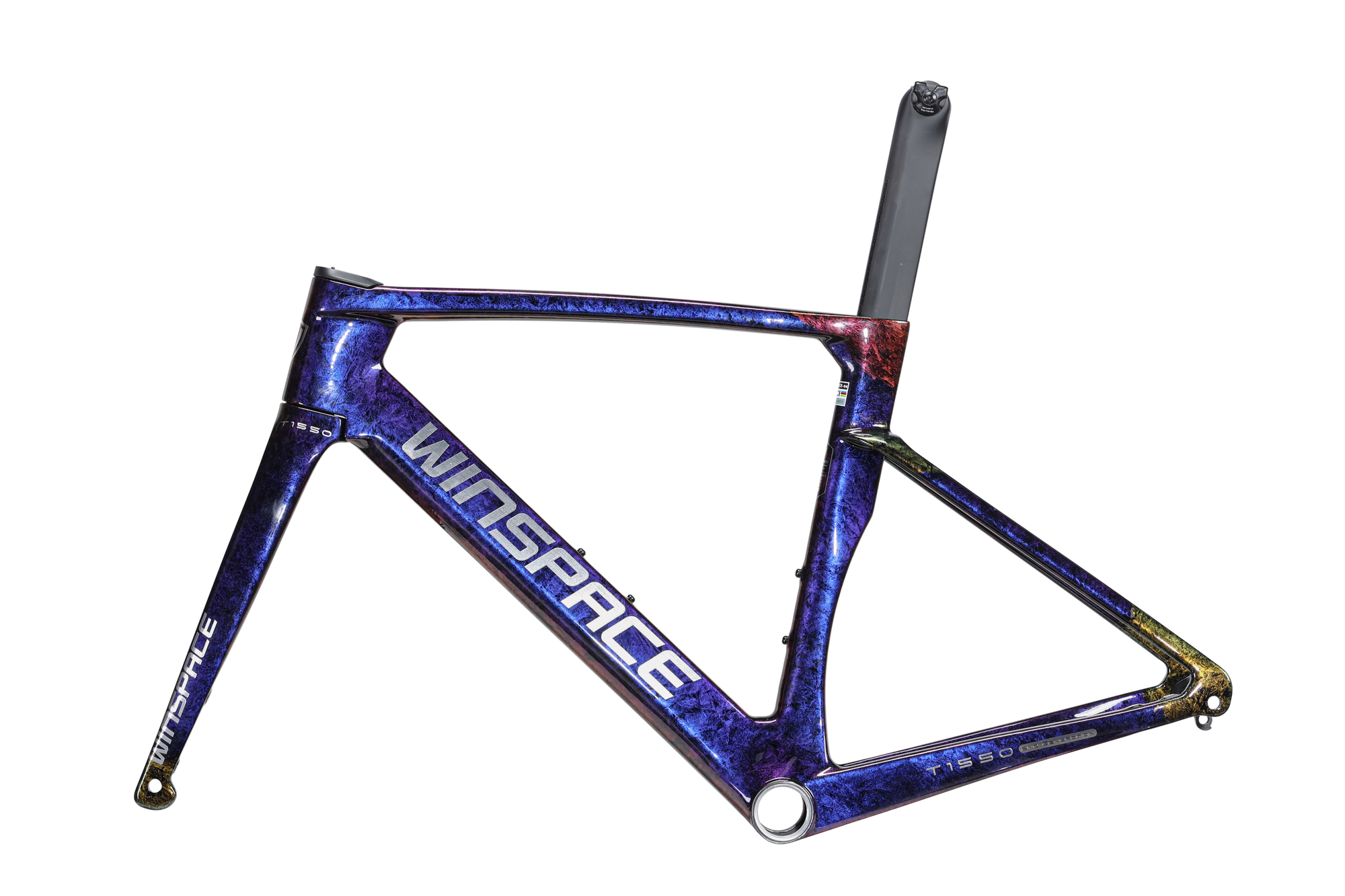

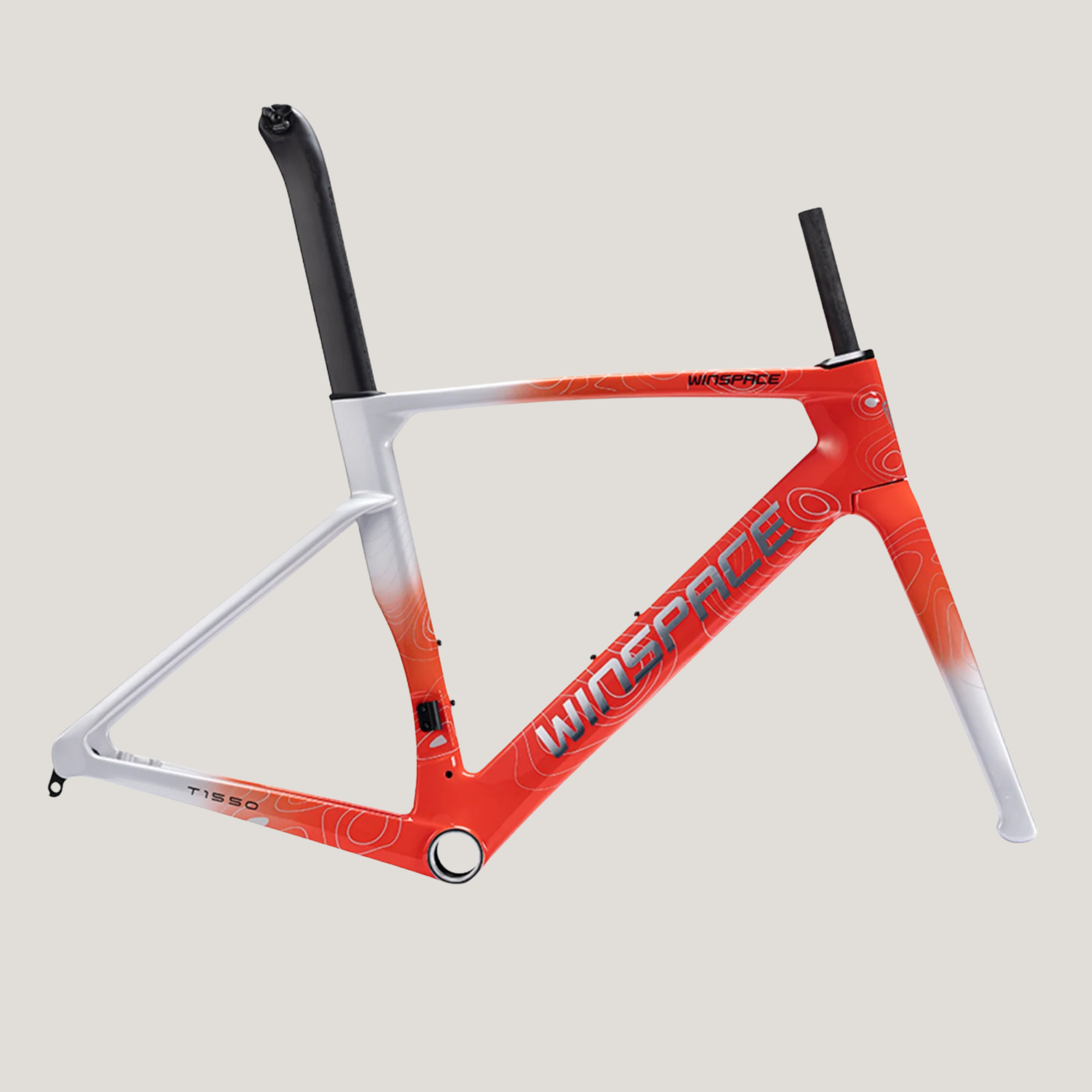

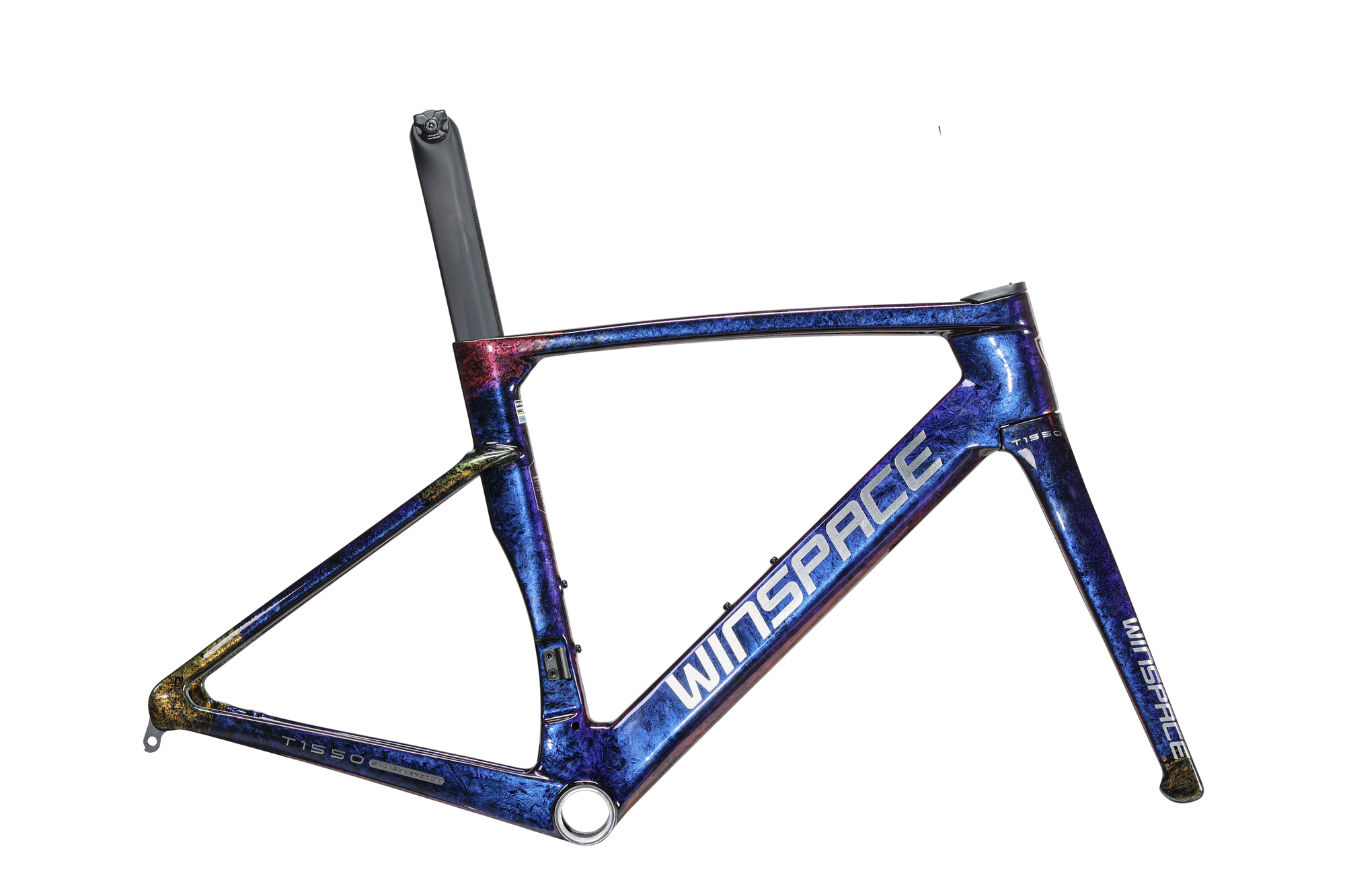

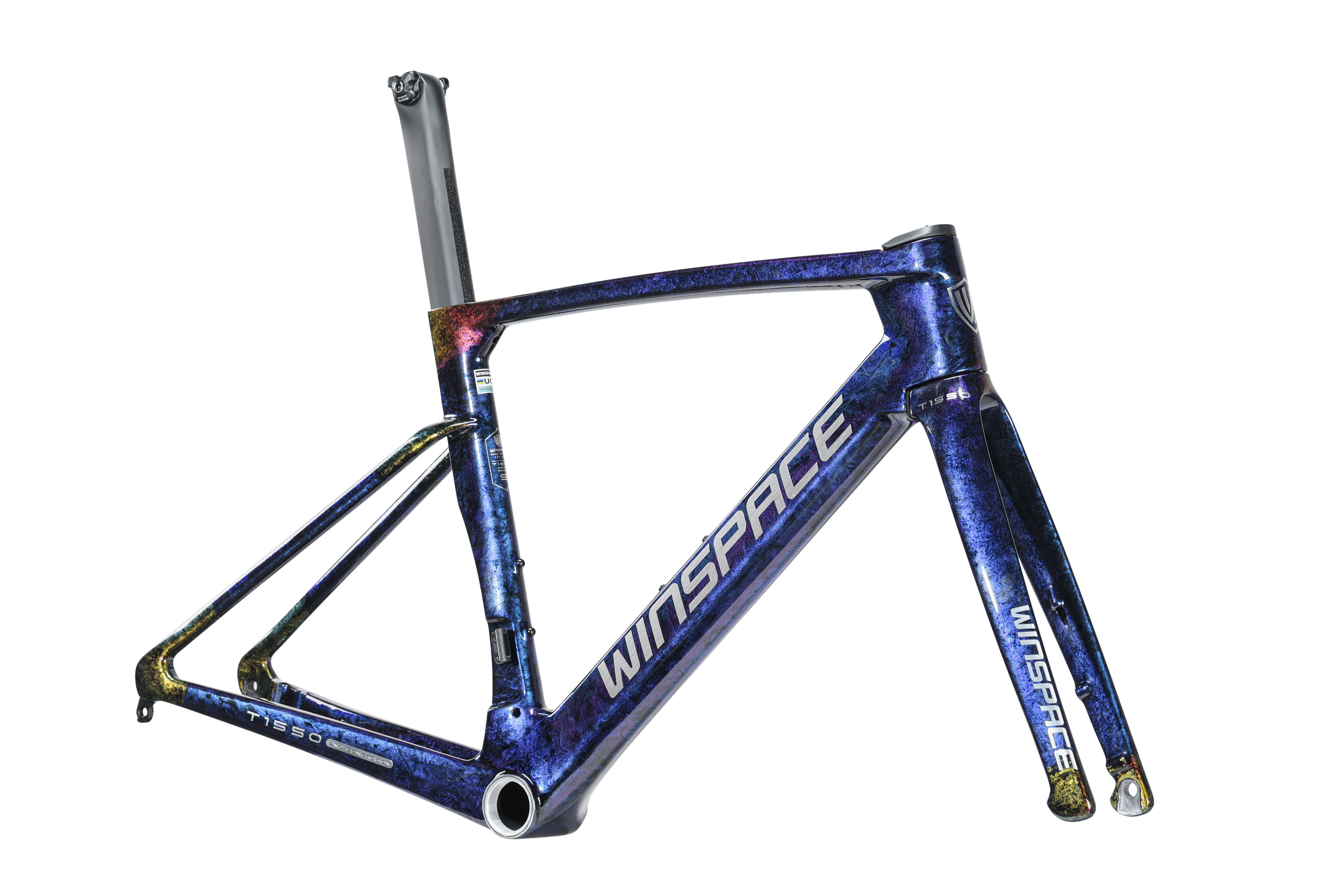

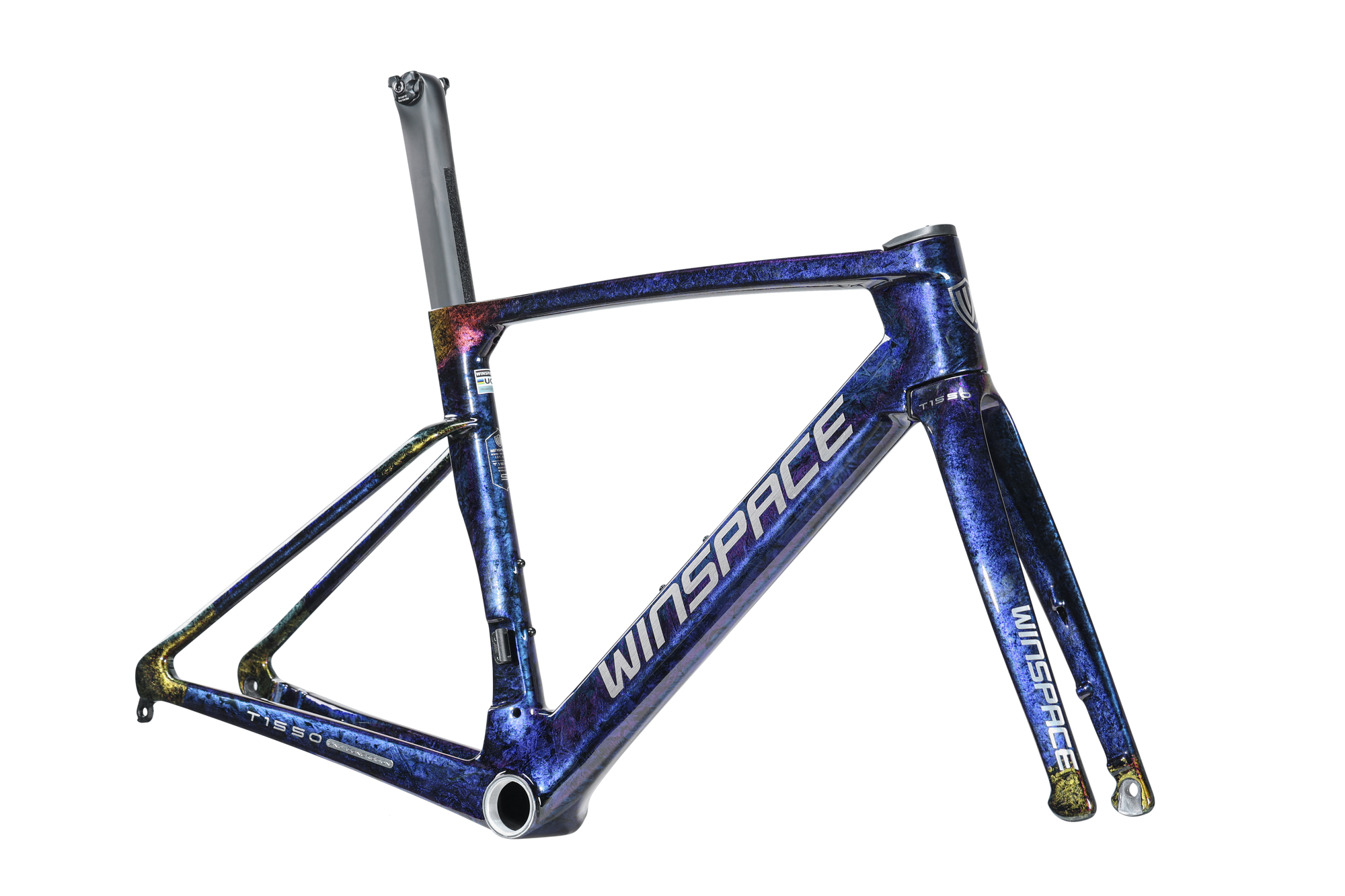

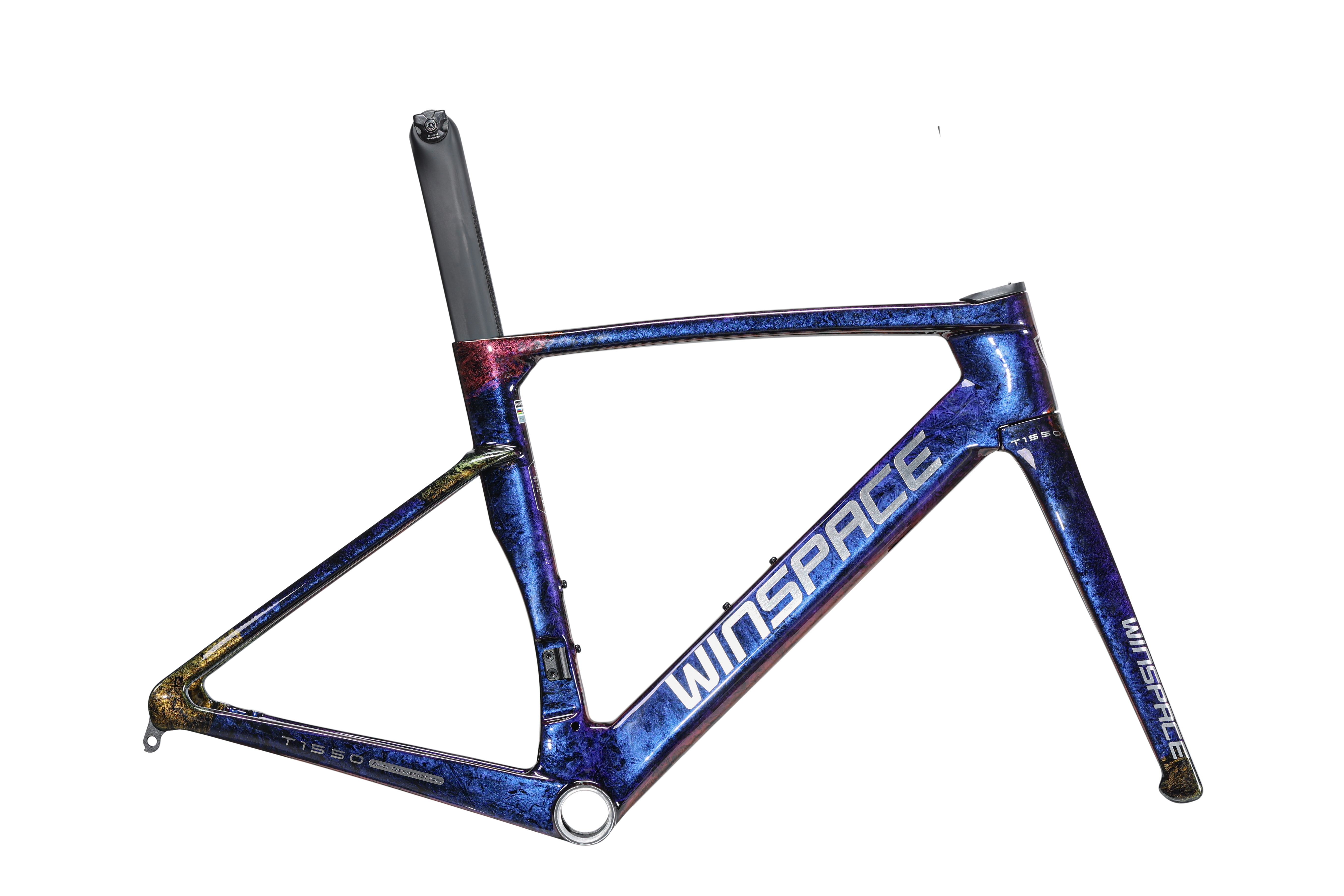

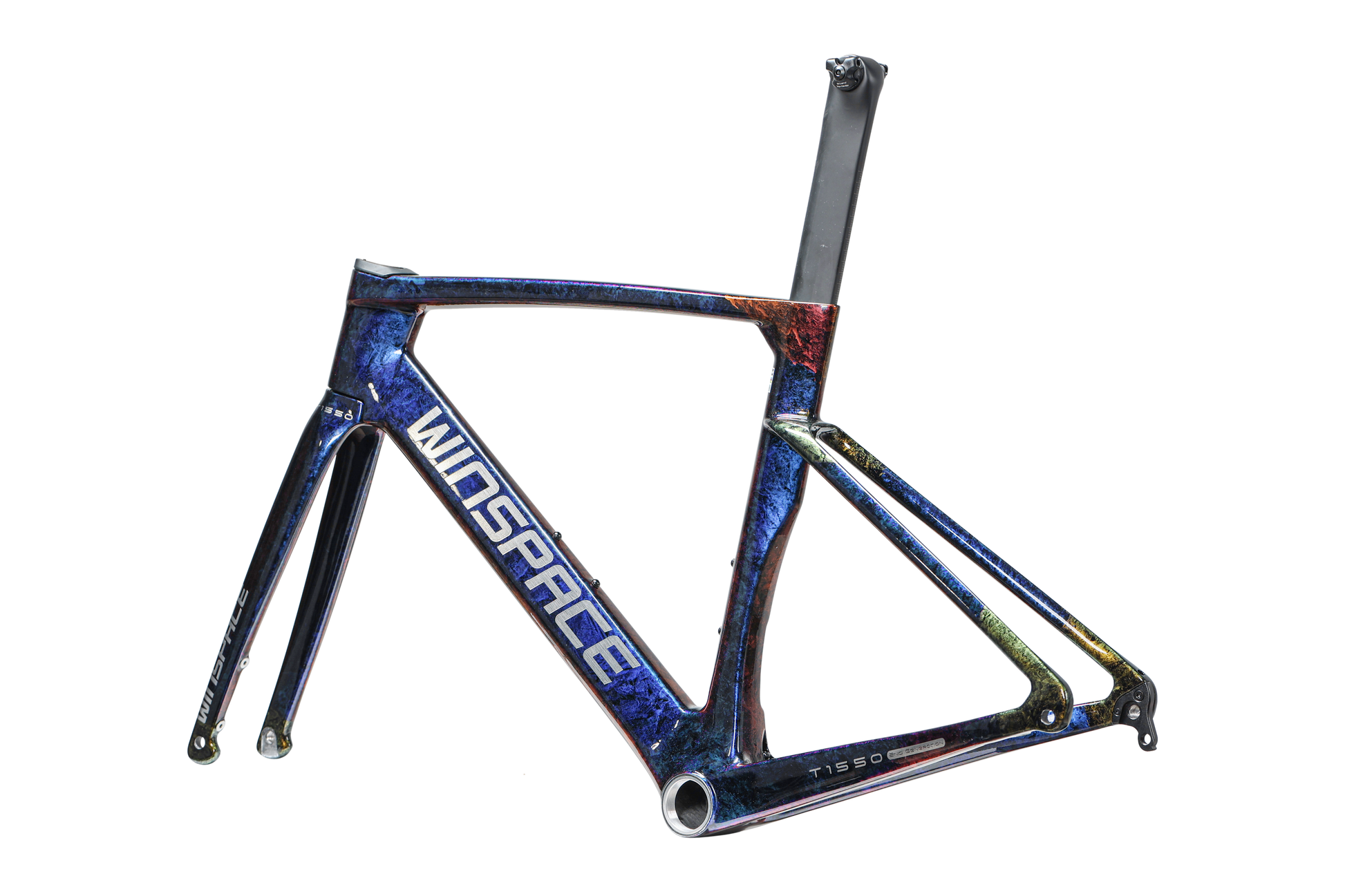

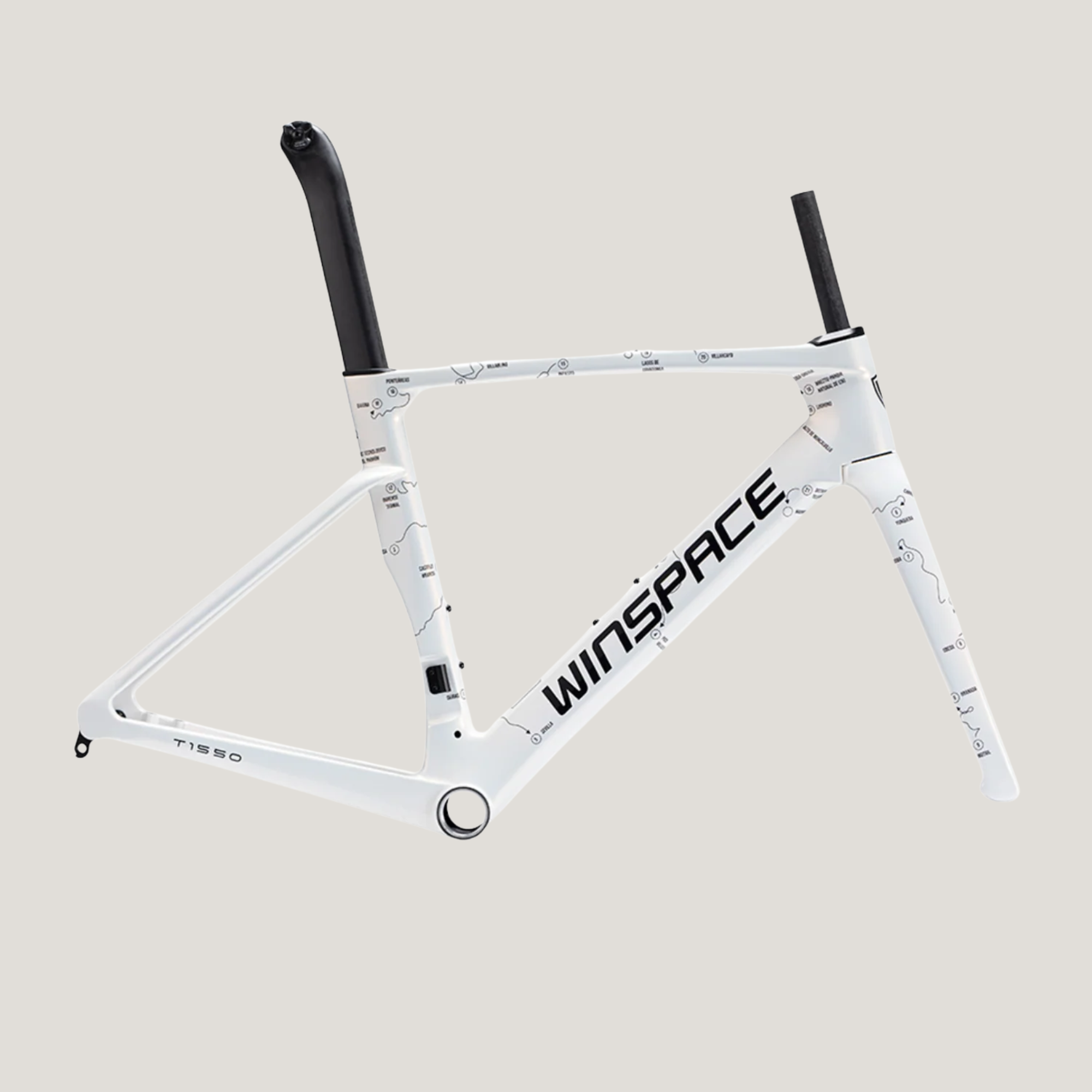

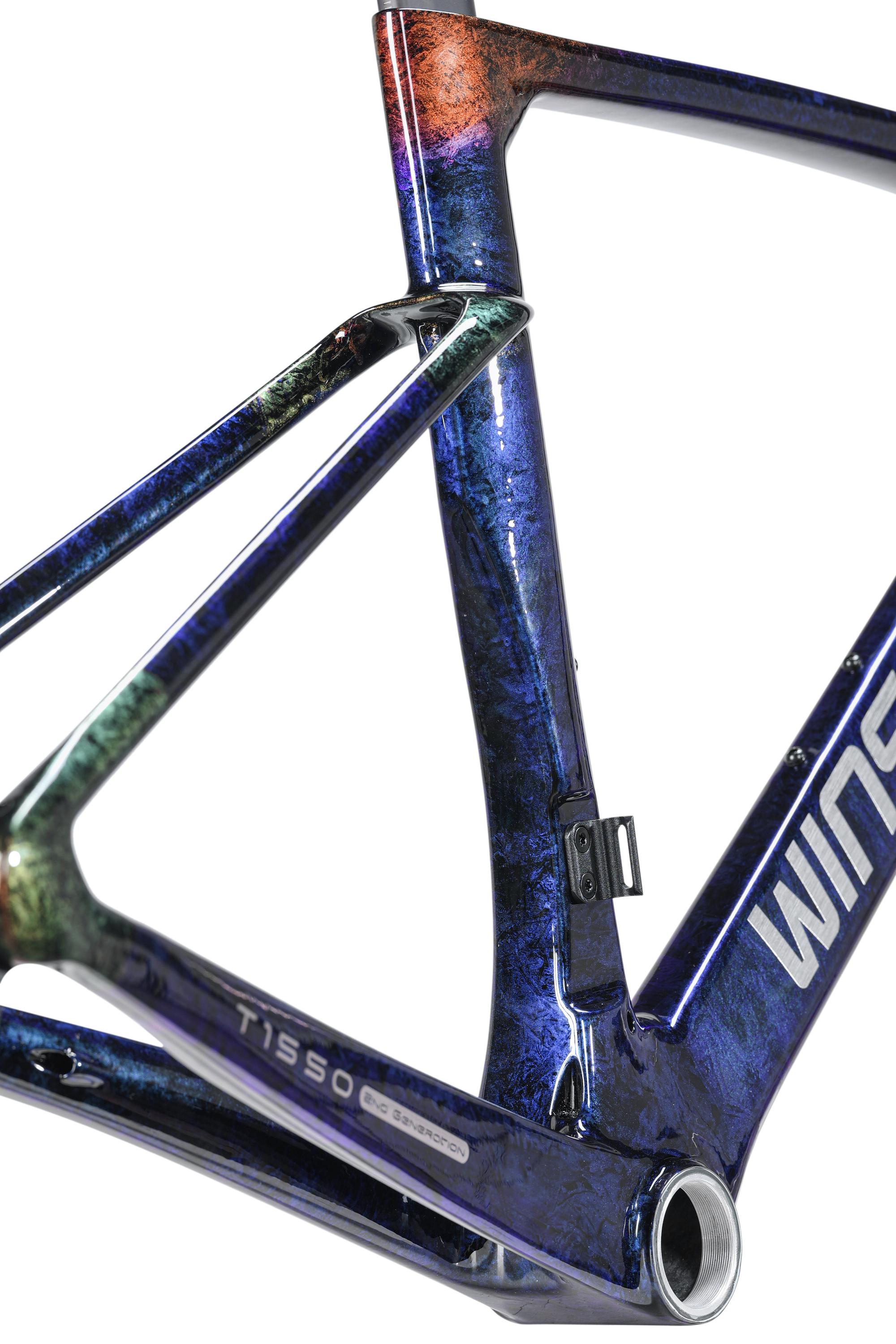

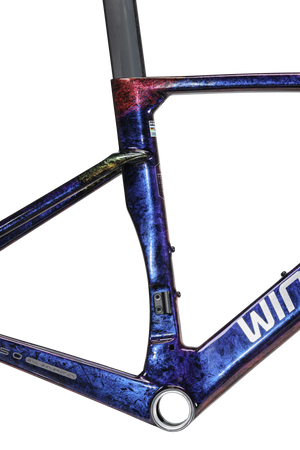

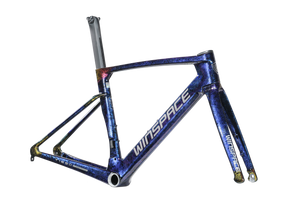

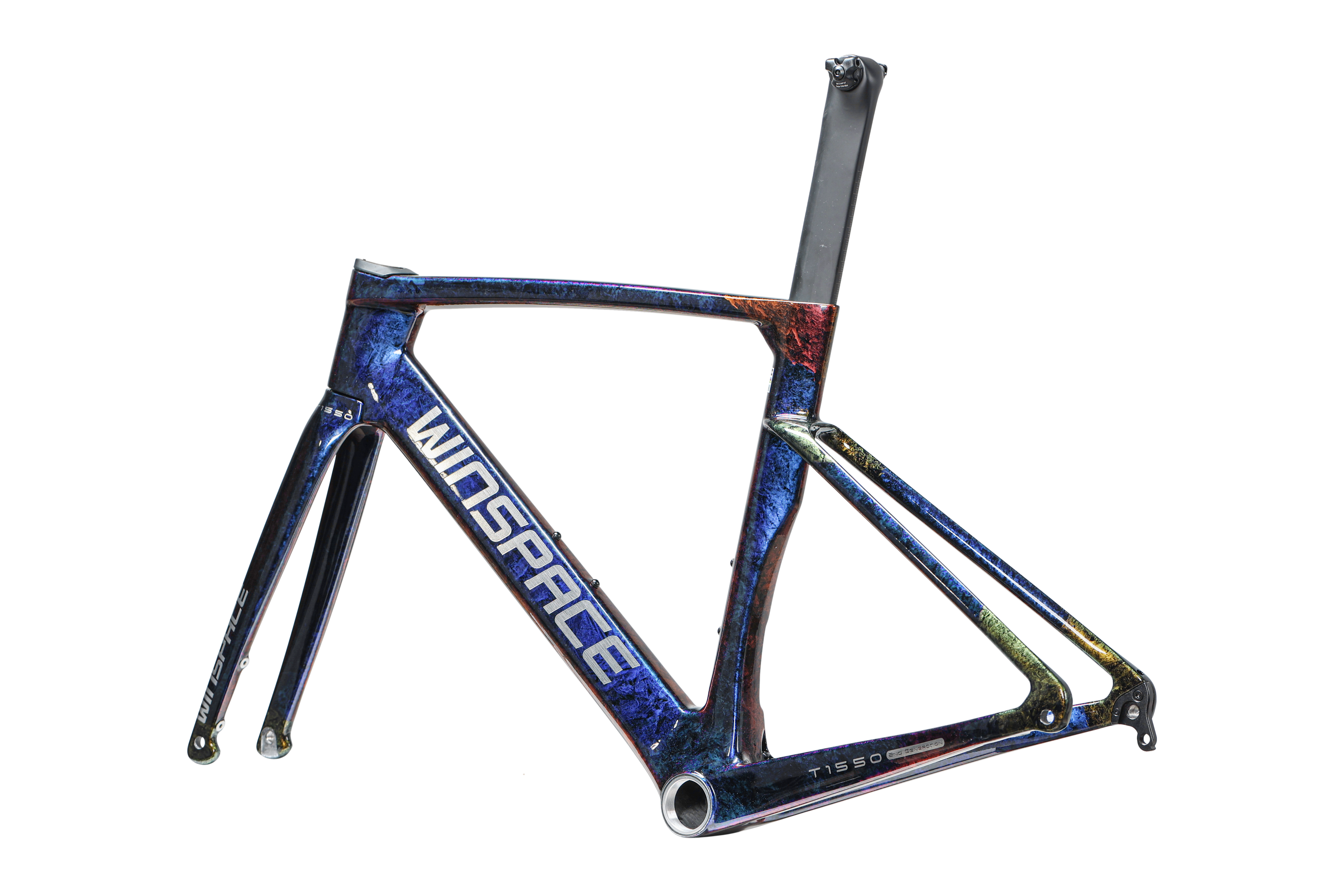

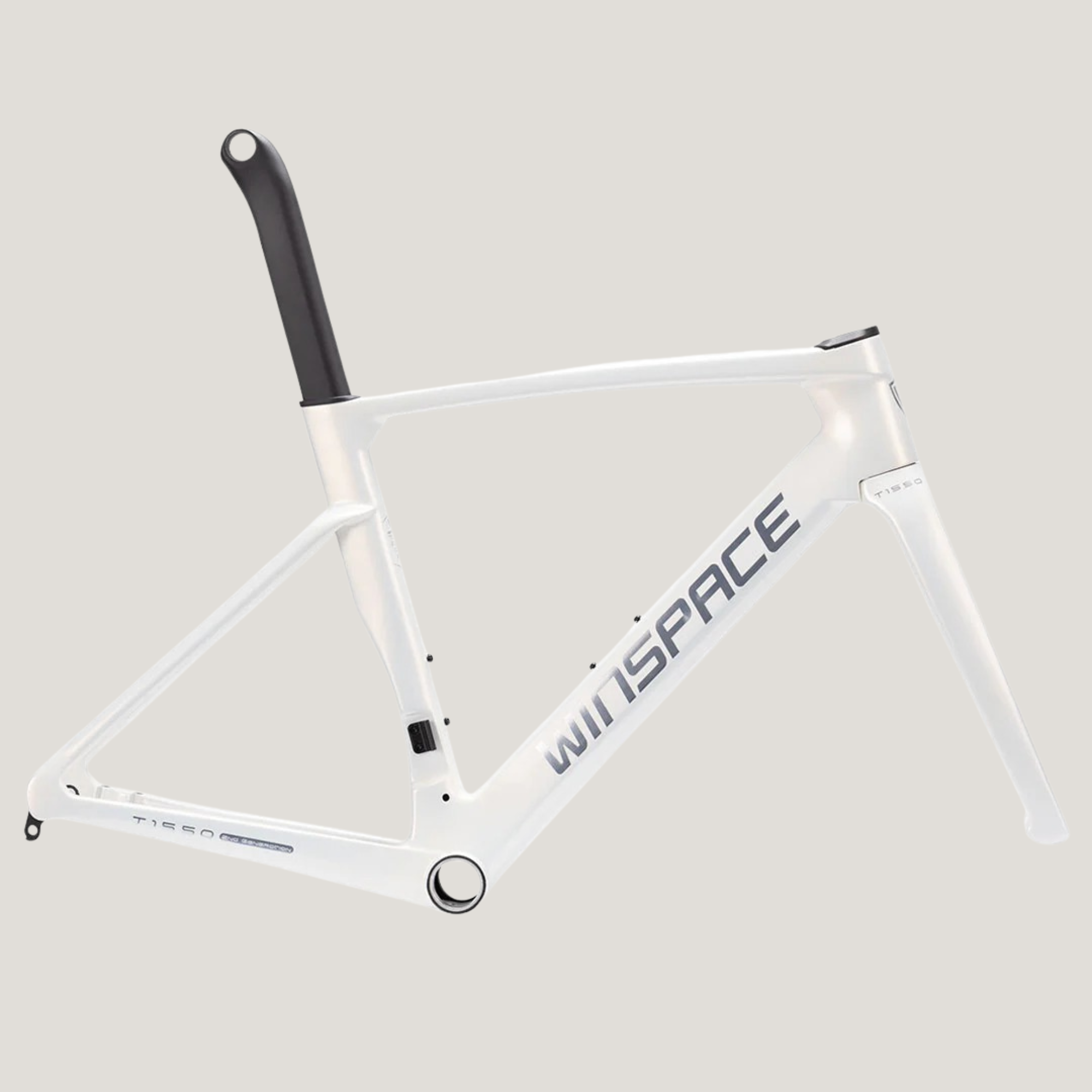

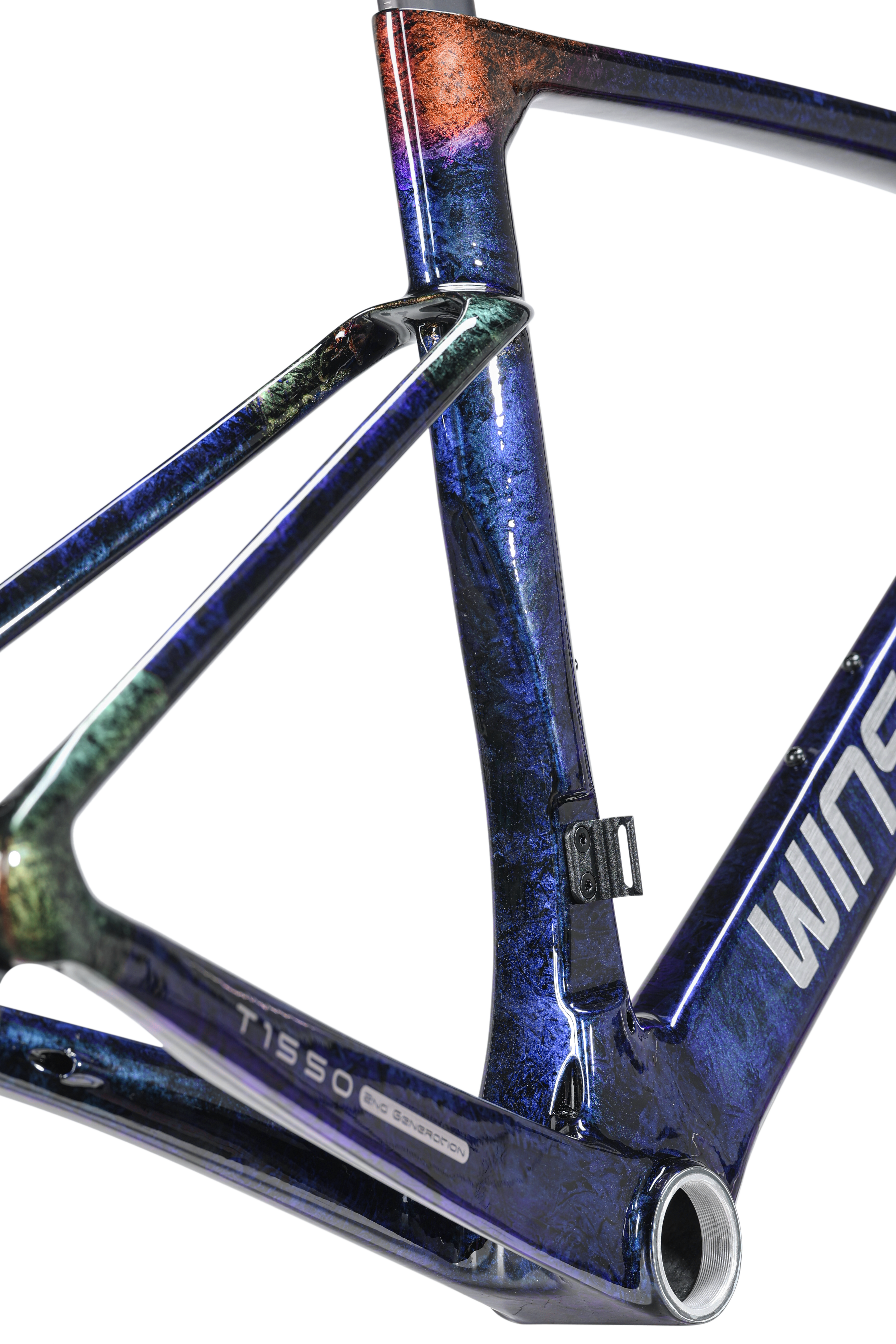

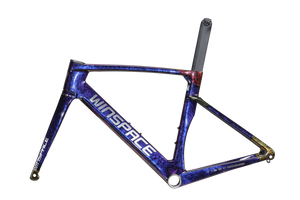

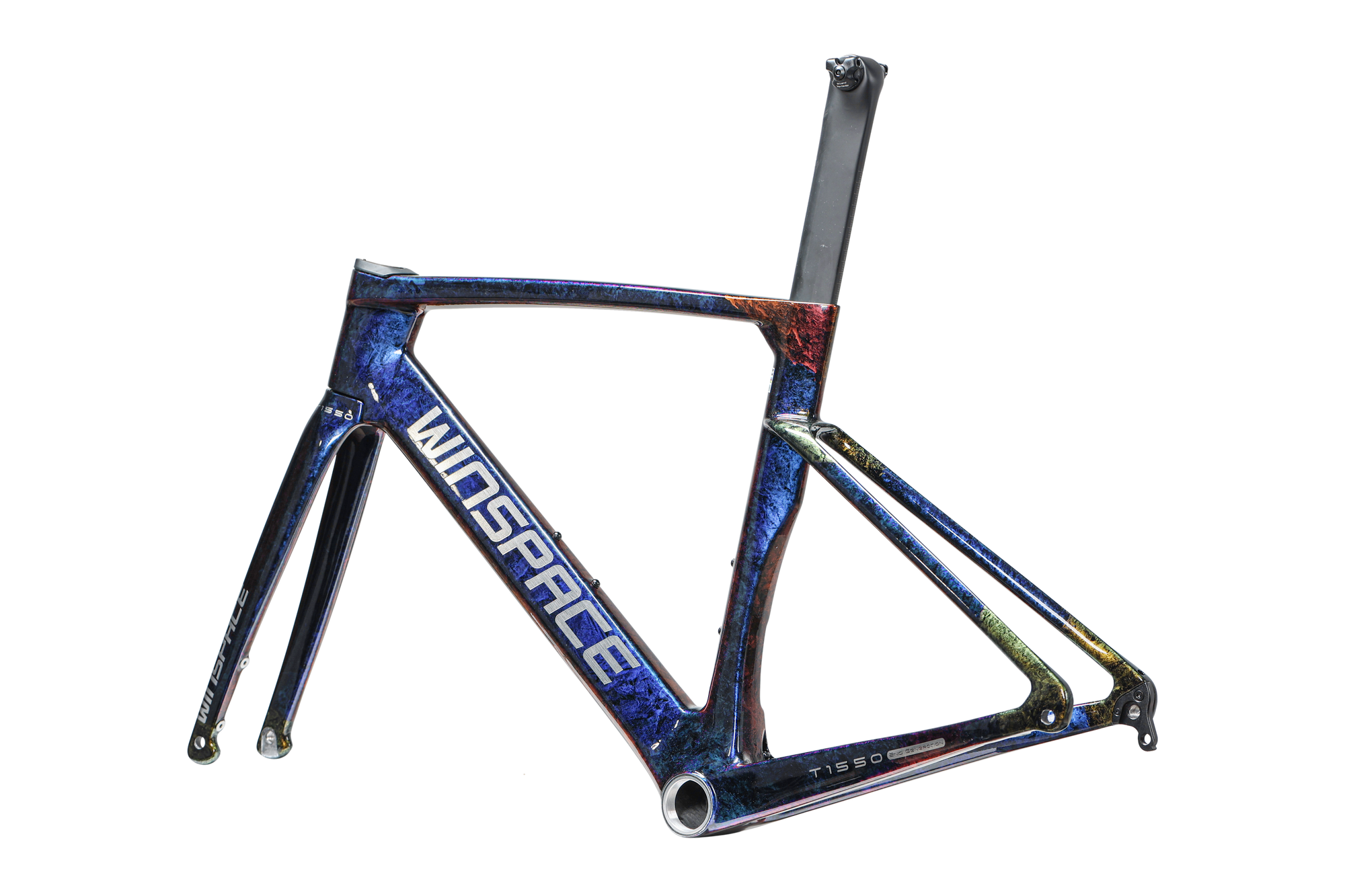

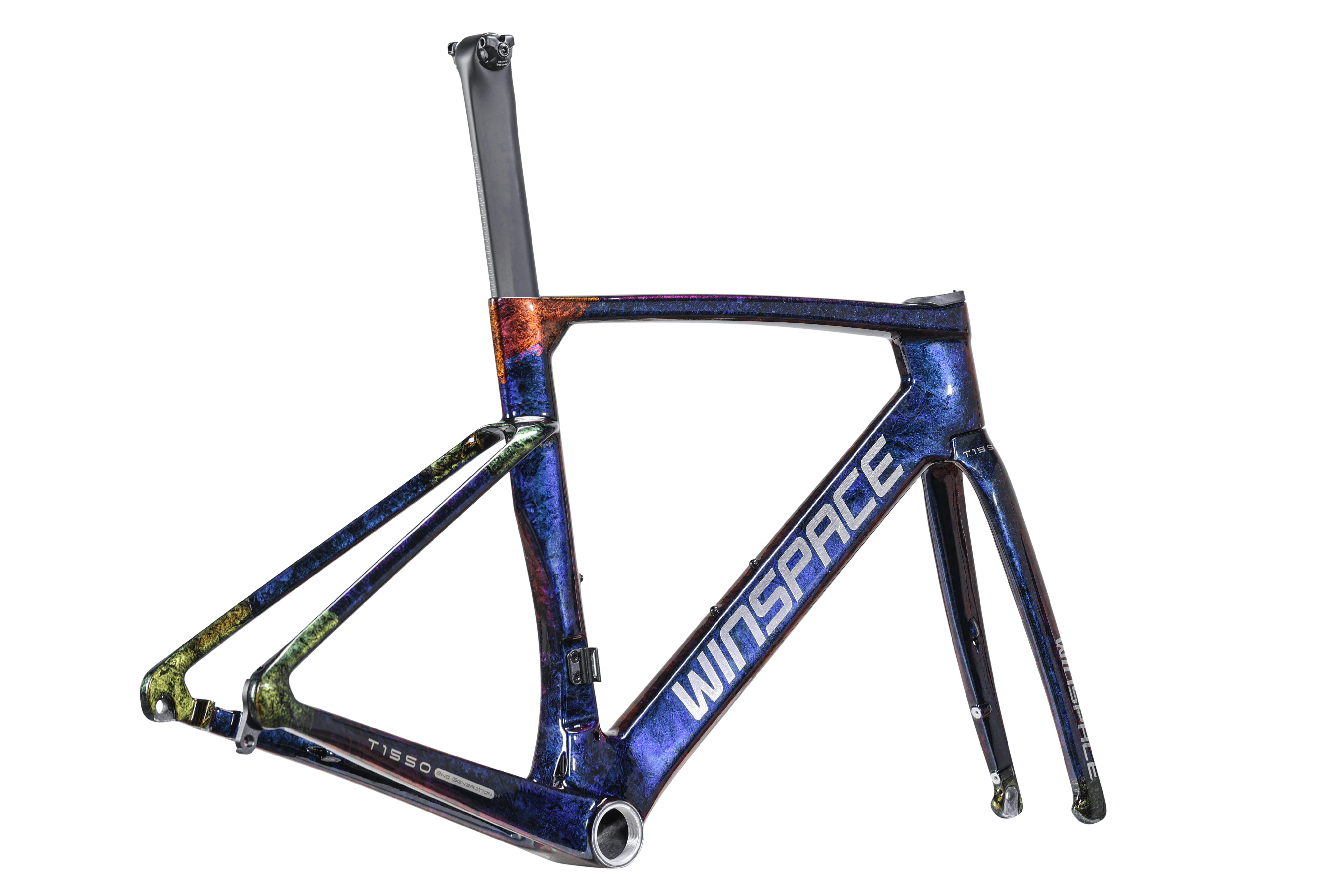

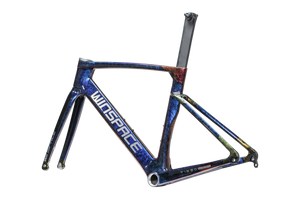

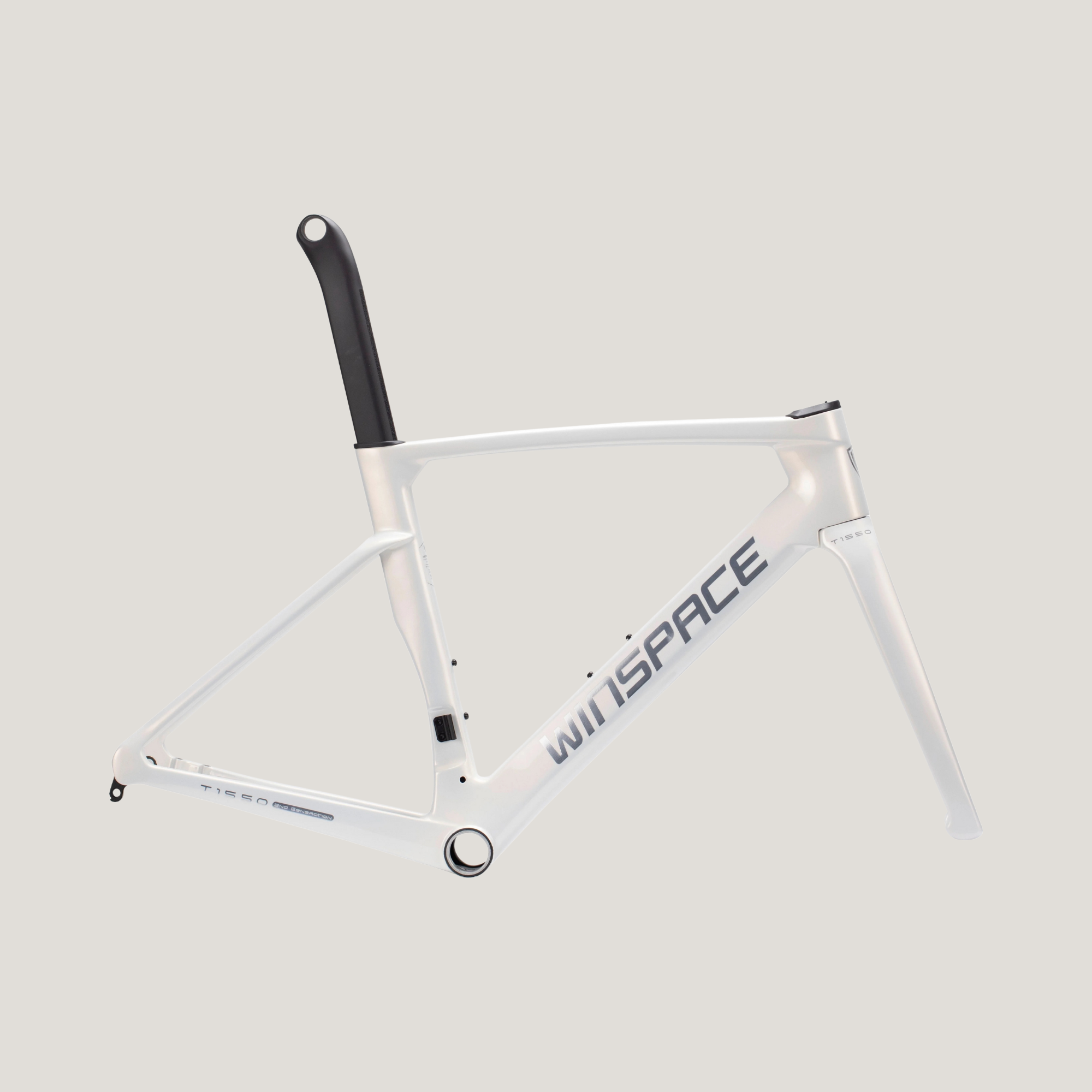

Winspace T1550 Gen 2 chameleon white Frameset
- Regular price
- Rs. 185,000.00
- Sale price
- Rs. 185,000.00
- Regular price
-
Rs. 0.00
SKU:WS-FR-T15-CHMWH-XS
The Perfect Bike Size
You May be Interested
Introduction
Born to race, the new generation T1550 takes everything to the next level. It retains the aggressive geometry and performance focus, but with further optimization. Italian design meets our expertise in carbon fiber, creating a perfect blend. The T1550 2nd Gen. is a bike builder's dream. Fully UCI certified, it's ready to compete at the highest levels.
Specifications
Model name: T1550 2nd Generation
Sizes: XS (440mm), S (470mm), M (490mm), L (520mm), XL (550mm)
Headtube: NO.55R 1.5"/ACR/STD (headset included.)
BB: T47 (internal symmetric 85.5mm)
Seatpost: Proprietary Aero Seat Post (Included.)
Brake: Flat mount disc brake
Front derailleur: Brazed on
Derailleur Routing: Mechanical / Di2 /Campy EPS / SRAM eTAP
Tire clearance: Max. 700C*32C
Wheel Axle: 12mm through axle F100mm R142mm
Carbon fiber: Toray T1000 + T800 Carbon
Weight: frame 828+/-35g for M size (Unpainted)

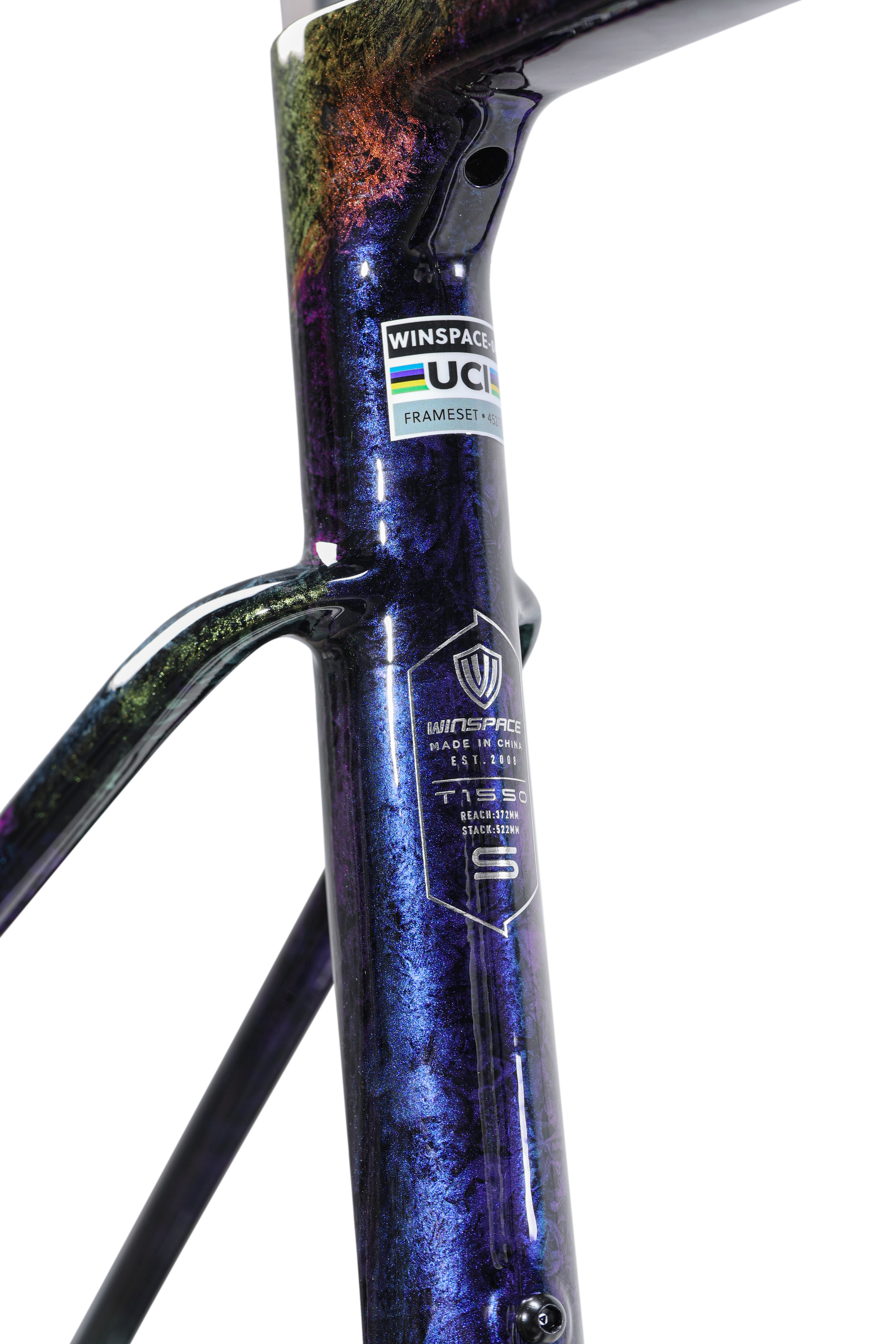

UCI approved
Contents: Frame, Fork, Seatpost, Headset, Di2 cable stoppers, Direct Mount Derailleur Hanger
Warranty: Limited 3yr warranty on the frameset
Retail Price: $1780USD
Features
T1000+T800 Carbon Fiber One-Piece Molding Process
The Winspace T1550 2nd Gen. frameset features a T1000 + T800 carbon fiber One-Piece molding process, which ensures higher-quality stability and lightweight construction. This process also results in a seamless frame, allowing for more direct force transmission and a sturdier frame structure.
Aggressive Yet Optimized Geometry
Building on the extremely aggressive design of the previous generation, we've optimized the T1550 to be more ergonomic without sacrificing performance. This refinement makes it less aggressive and more user-friendly, striking the perfect balance between performance and comfort.

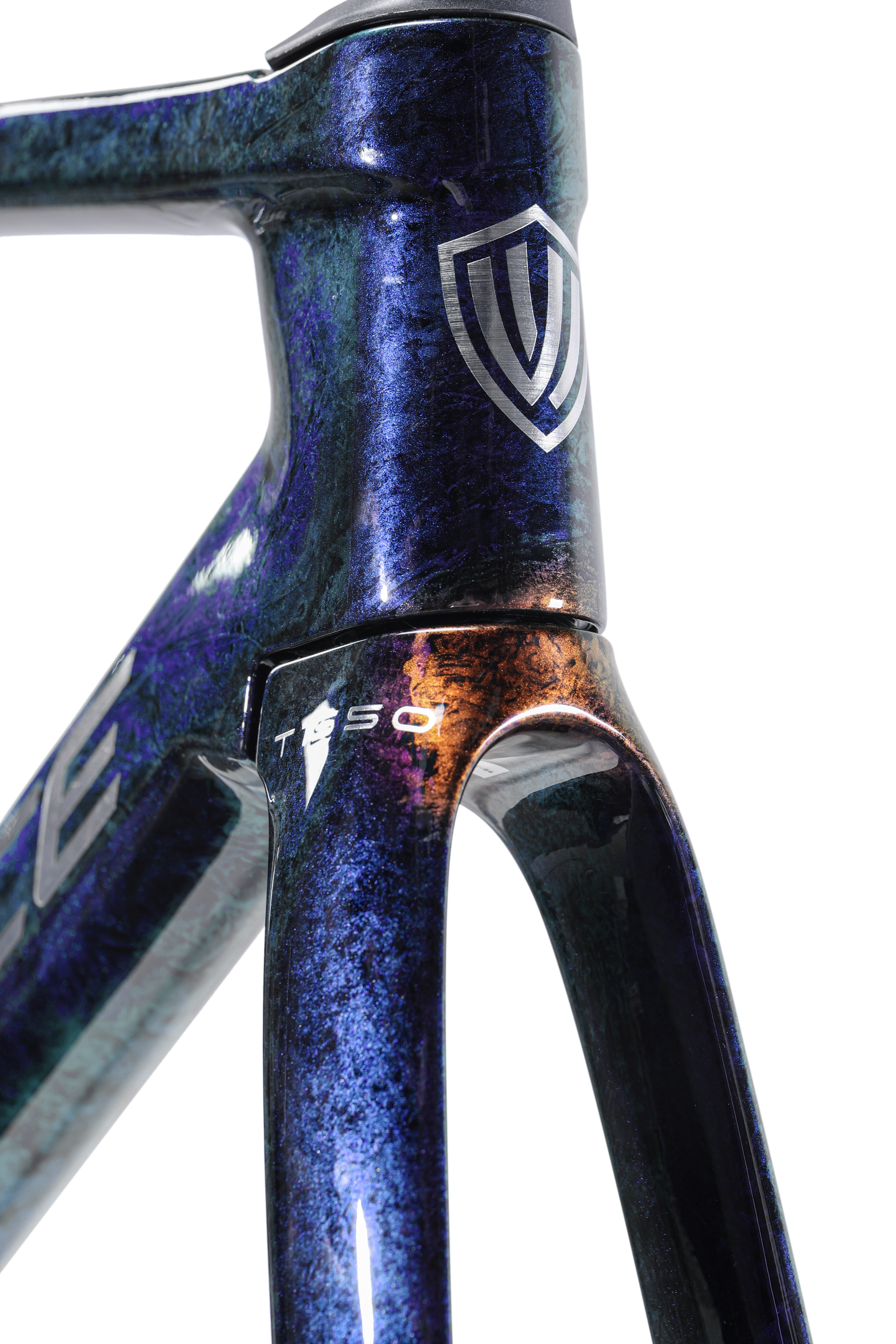

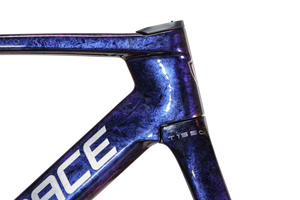

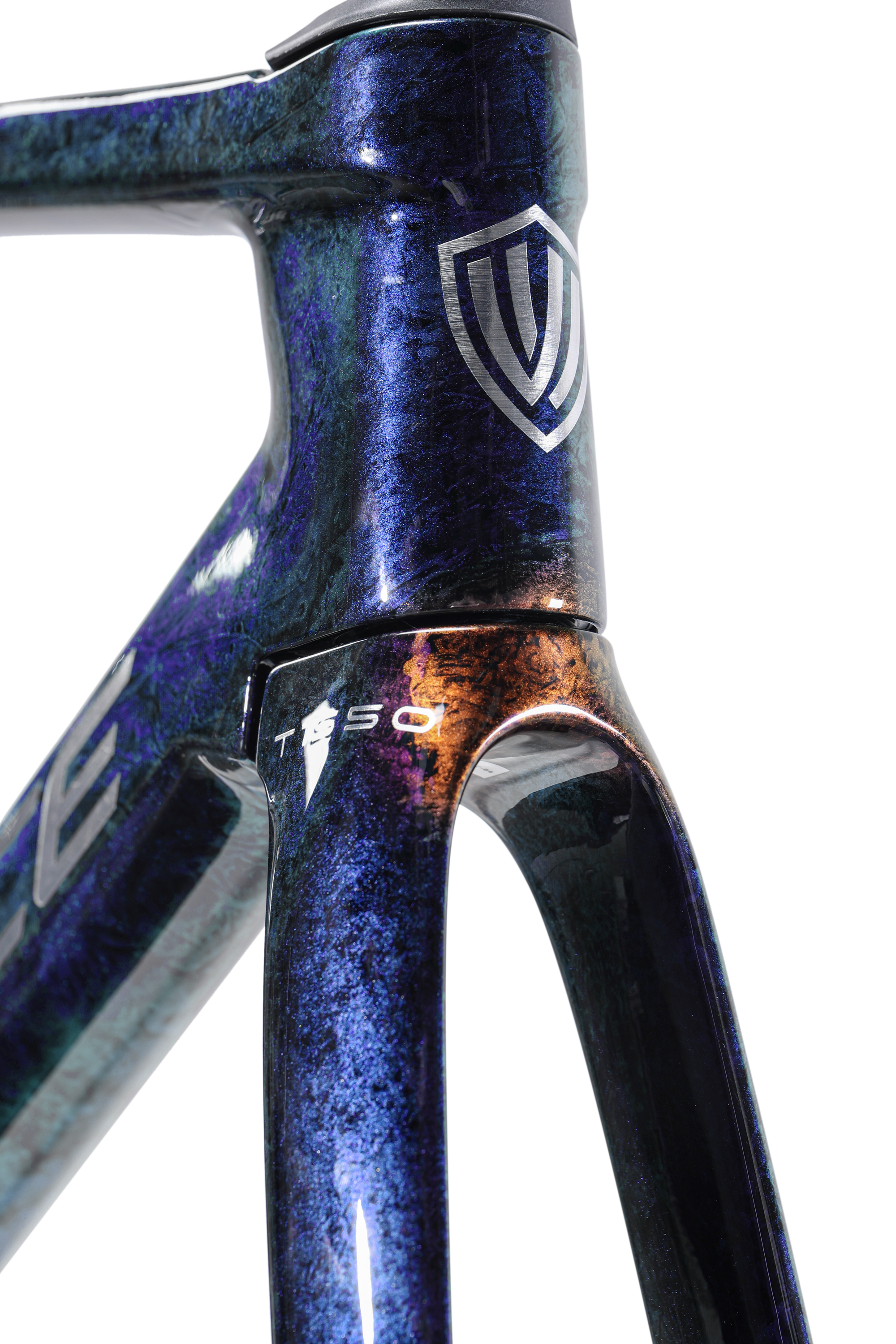

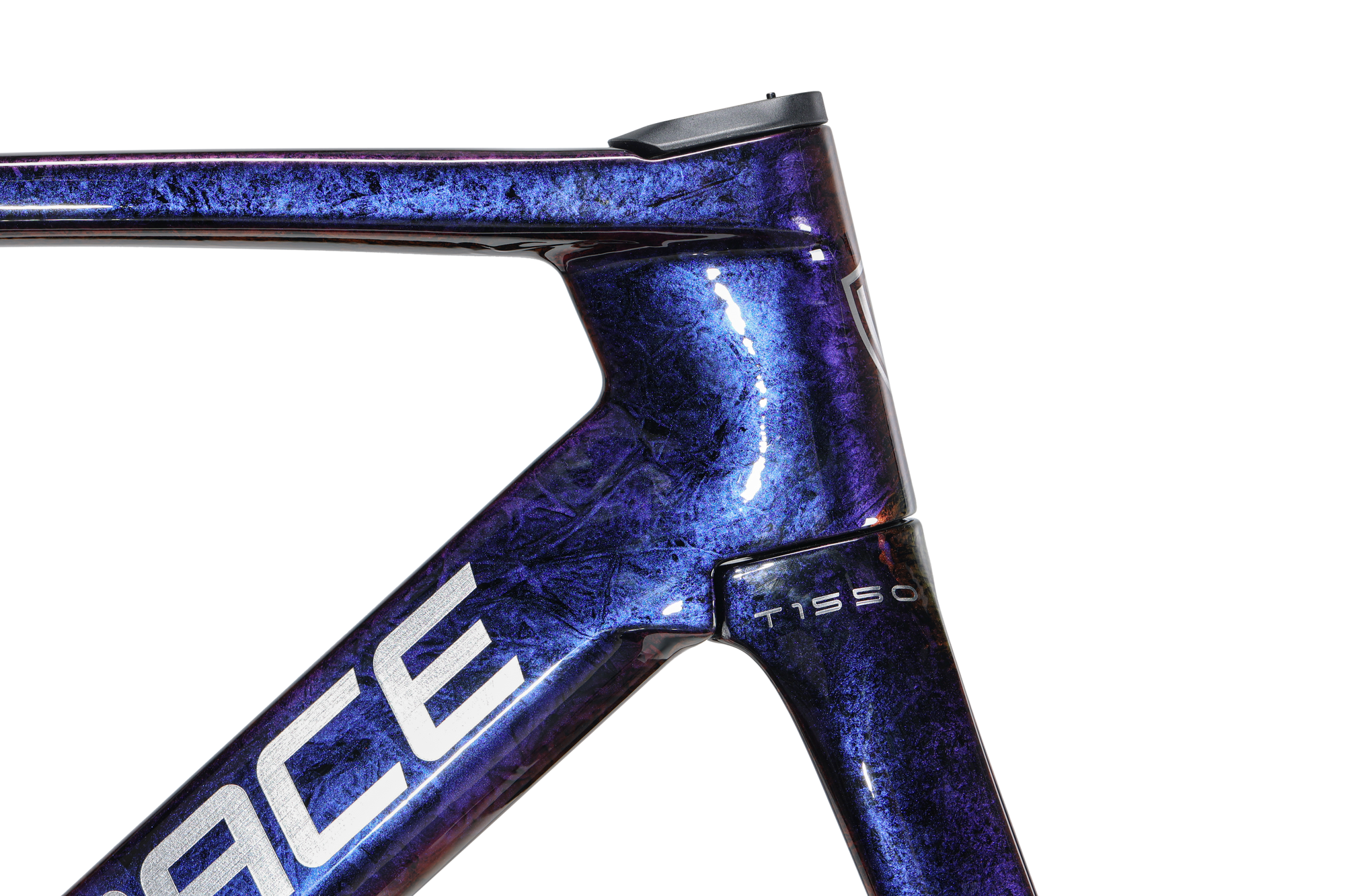

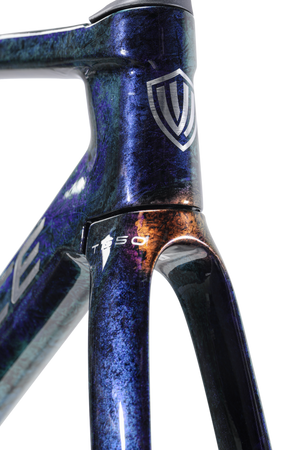

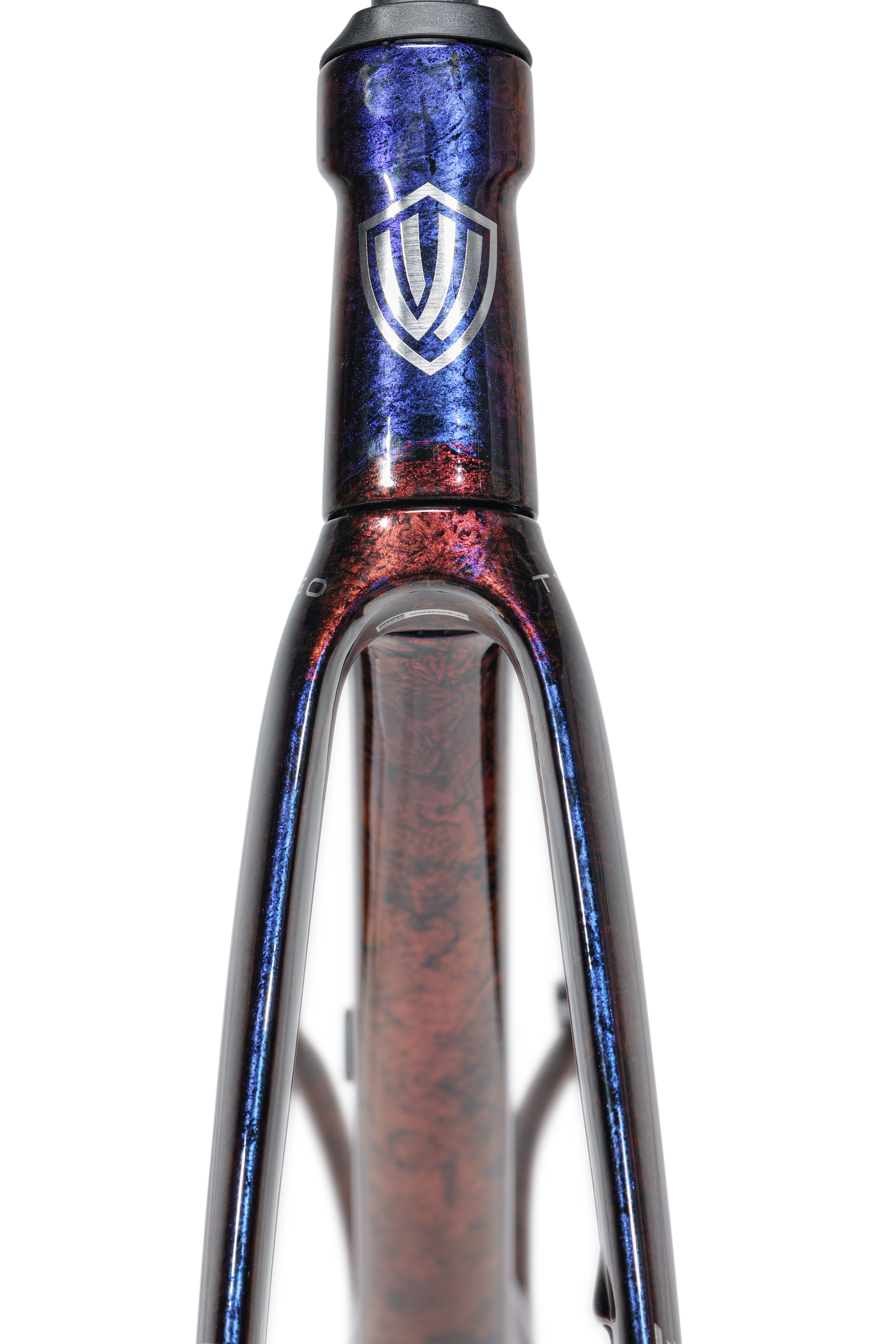

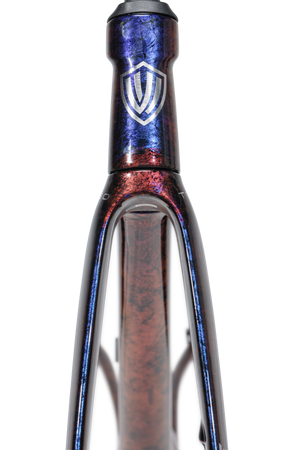

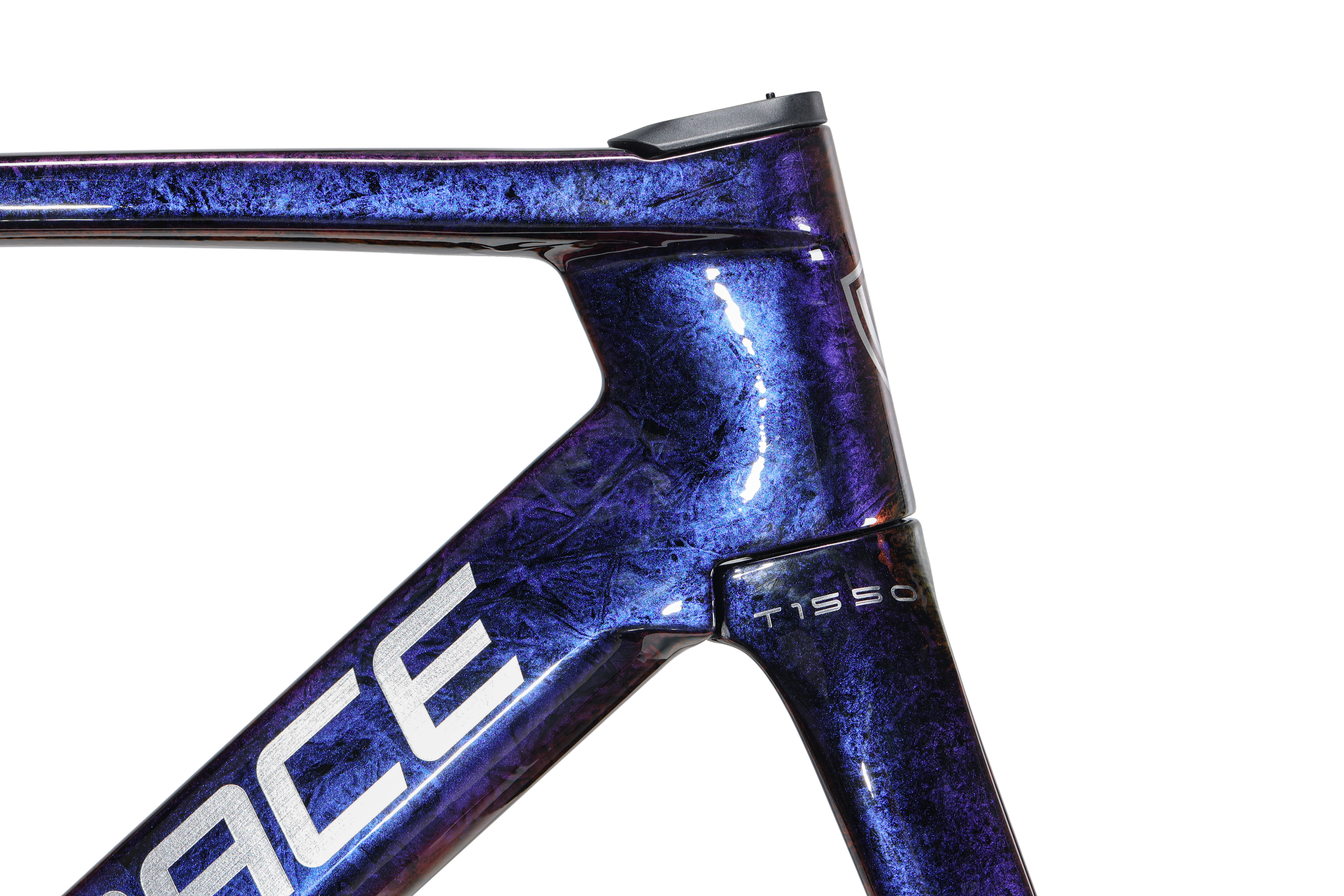

ACR Headset
The Winspace T1550 frameset comes with an ACR headset that features a fully hidden internal cable routing design. This design not only enhances the bike's appearance but also protects the cables from damage, ensuring that they function properly for years to come. Additionally, the internal cable routing design reduces air resistance, further enhancing the bike's aerodynamic performance.
Flexible Handling Performance
The Winspace T1550 frameset has been designed to provide flexible handling performance, allowing you to maintain optimal control over the bike at all times. The frame's geometry and fork design work together to provide excellent handling, making it easy to navigate even the most challenging terrain.
